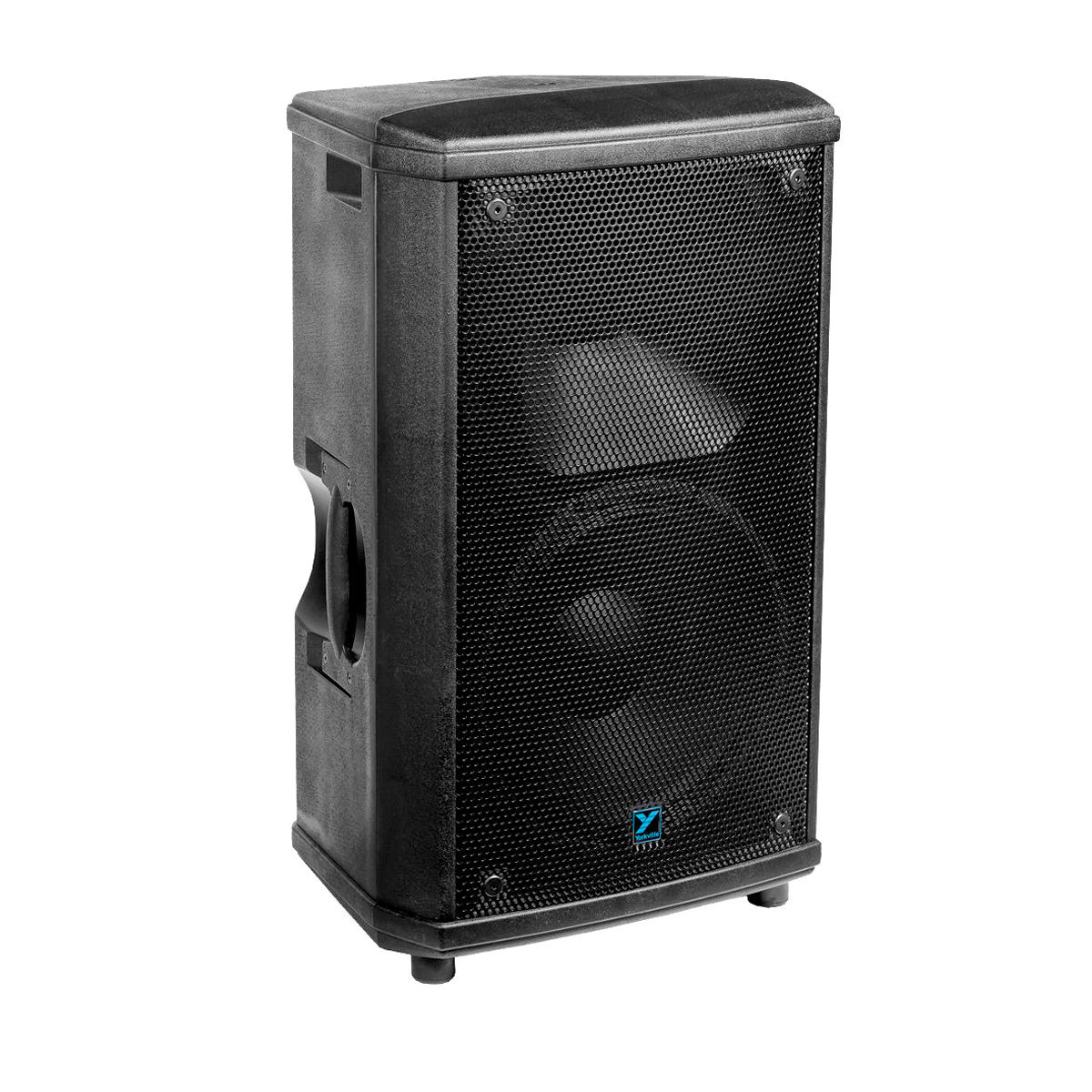

Yorkville NX750P Powered Loudspeaker
- Ultra-light injection molded Polypropylene construction
- Dual-purpose full range and wedge monitor format enclosure
- Ultra-clear reproduction throughout bandwidth
- Lightweight, high efficiency, high tech, 650 Watt Bi-amped power module
- Proven TX style processing and component protection
- +6dB/-infinity input trim control for individual cabinet level adjustment
- XLR and TRS inputs / outputs for easy connection and looping
- Multi-input source mixer for direct inputs
- Direct microphone input with level control
- Two-way overall EQ controls
- Light-weight 15" Neodymium Woofer
- High quality 1.5" High-Frequency driver
- Next-generation woofer / driver / horn technology
- Integrated flying hardware (1/4-20 threaded holes)
- Tough, full-length metal grille
- Recessed Mixer panel
- Weight: 61.0000
- Dimensions (WxHxD): 22" x 32" x 15"
NX Series NX750P - 15 inch / 1.5 inch Active Loudspeaker. This loudspeaker represents the culmination of all Yorkville's research and development in molded technology to this point. The injection-molded internally multi-fin-braced enclosure supports a high-performance 15" high-powered woofer and rotatable 80 x 50 custom ABS waveguide horn all protected by a perforated metal grille. A rugged carrying handle speaker stand socket and reinforced threaded flypoints are also built in. Innovative biamplified power module uses a two-tier class H linear technology to produce loud clean transients to match the high output of the woofer. Its two-tier design technology is lower in weight and more efficient than conventional amplifiers while providing higher headroom and lower operating temperature - a perfect solution for powering the top end. A newly designed switch-mode amplifier drives the woofer in the NX750P. The amplifier uses Class D switching technology in part to reduce overall weight - it also runs cooler. Class D technology is similar to the power supply found in the trend-setting Elite EF500Ps amplifier. Of particular significance is this technologys inherently low heat production which ensures reliability in a wide range of environments. Then the NX750Ps combination of neodymium woofer magnetics and lightweight composite enclosure materials further ensure that all this remarkable performance comes in a lightweight durable package. Added to this is a great degree of versatility. For example the NX750P can easily be used in any orientation vertical or horizontal (eg stand-mounted or as a floor monitor) - close to walls in installations (flypoints are built-in) or in arrays with multiple NX750Ps. There is also a versatile direct input system and built-in mixer. The mixer allows the NX750P to be used directly with a microphone and/or a line source.
