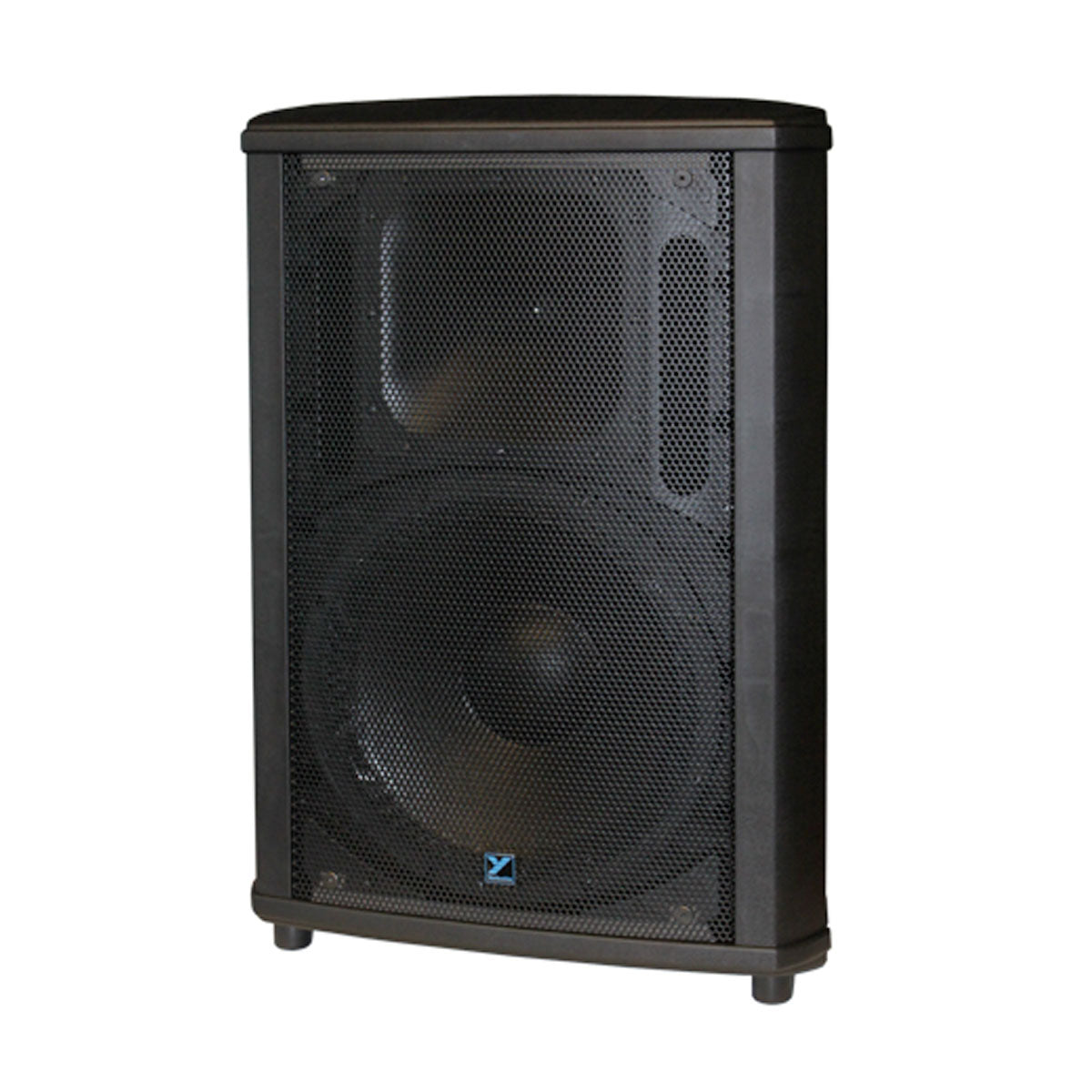

Yorkville NX750P-2 15\" Powered Loudspeaker

The NX750P-2 represents the culmination of all Yorkville's research and development in molded technology to this point. The injection-molded, internally multi-fin-braced enclosure supports a high-performance 15\" high-powered woofer and rotatable 80° x 50° custom ABS waveguide horn, all protected by a perforated metal grill. A rugged carrying handle, speaker stand socket and reinforced threaded flypoints are also built in.
\n    •    Integrated 1600 Watt Amplifier Peak (750 Watts Program)
\n    •    Max SPL 133dB Peak (127dB Continuous)
\n    •    Ultra-light injection molded Polypropylene construction
\n    •    Dual purpose full range and wedge monitor format enclosure
\n    •    Ultra-clear reproduction throughout bandwidth
\n    •    Lightweight, high efficiency, high tech Bi-amped power module
\n    •    Proven TX style processing and component protection
\n    •    +6dB/-infinity input trim control for individual cabinet level adjustment
\n    •    XLR and TRS inputs / outputs for easy connection and looping
\n    •    Multi-input source mixer for direct inputs
\n    •    Direct microphone input with level control
\n    •    Two-way overall EQ controls
\n    •    High quality 1.5\" High Frequency driver
\n    •    Rotatable 80° x 50° horn
\n    •    Next generation woofer / driver / horn technology
\n    •    Integrated flying hardware (1/4-20 threaded holes)
\n    •    Tough, full length metal grille
\n    •    Recessed Mixer panel
\n    •    Made in Canada
\n
\nSystem Type 2-Way
\nActive or Passive - Active
\nPower Rating (Watts)
\n750 Watts (1600 Watts Peak)
\nBiampable
\nSelf Powered
\nMax SPL (dB)
\n133dB Peak (127dB Continuous)
\nFrequency Response (Hz +/- 3dB)
\n50 - 26k
\nCrossover Frequency (Hz)
\n1400
\nDriver Configuration
\n15-inch / 1.5-inch
\nHF Driver(s)
\n1.5-inch Polyester voicecoil (1-inch Throat)
\nHF Dispersion (°H x °V)
\n80 x 50 rotatable
\nLF Driver(s)
\n15-inch w/ 3-inch voicecoil
\nHF Amplifier Type
\nTwo Tier Class H
\nLF Amplifier Type
\nClass D
\nPower Cable
\nYes
\nPower Switch
\nYes
\nInputs
\n7
\nInputs - 1/4\" Jacks
\n2 (line input) 2 (link in/out)
\nInputs - XLR
\n1 (mic) 2 (line in/out)
\nInput Sensitivity (Vrms Sine)
\n+4dBv / 1.23V
\nMixer Controls
\nMixer on/off switch
\nMic Gain
\nLine/CD Gain
\nTreble/Bass Tweak
\nLevel Controls
\n+6dB/-infinity Main Volume
\nEQ Controls
\n100Hz HP Filter (LF Rolloff)
\nLimiter
\nYes
\nLED Indicators
\nPower/Clip/Limit
\nOther Controls / Features
\nSide recesses for ease of lifting
\nFeet
\nYes
\nBar Handles
\n1 (Side)
\nFlying Hardware
\n1/4-20 x 5 - 2 (Top), 2 (Bottom), 1 (Pullback)
\nOptional Flying Hardware
\nNX Flyware
\nPole Mount Adapter (1 3/8\"-3.5cm)
\nYes
\nEnclosure Materials
\nInjection molded Polypropylene
\nGrille
\nPerforated Metal
\nDimensions (DWH xbackW, inches)
\n15 x 22 x 32 x 9.5
\nDimensions (DWH xbackW, cm)
\n38 x 56 x 84 x 24
\nWeight (lbs/kg)
\n62 / 28
\nSpecifications subject to change without notice
