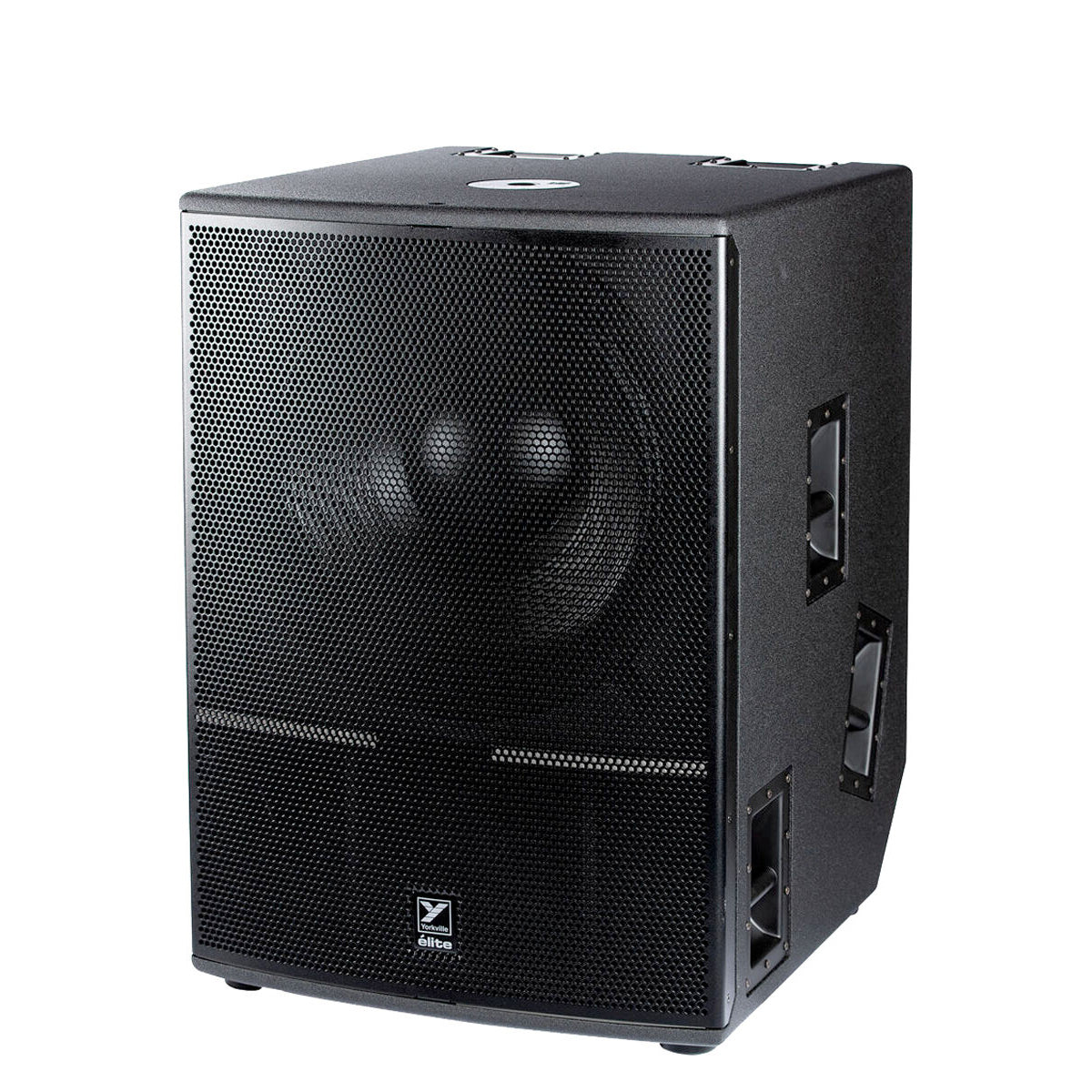

Yorkville ES21P Elite Series 21" 2400W Powered Subwoofer with Bluetooth Control

Quantity

Tags: subwoofer yorkville

high-output, rear horn–loaded sub for clubs, concert venues, bars, and theater applications. The ES21P is designed to add powerful bass to any setup including the Yorkville Elite Series full-range cabinets. With a built-in power amplifier and 2400W of program power, this 21" subwoofer produces a frequency response of 32 to 150 Hz and a maximum peak SPL of 142 dB.

The rear panel offers an XLR mono blended input, as well as standard XLR and 1/4" inputs and outputs, which allow for flexibility when working with multiple subwoofers. A dedicated input mode switch allows the ES21P to accept line- or speaker-level sources. The rear panel also features a master level control, a high-frequency rolloff control from 80 to 150 Hz, and three DSP presets that change tone and loudness. Additionally, the ES21P can be controlled wirelessly via Bluetooth with the free Yorkville control app available for iOS and Android platforms. The 11-ply Russian birch enclosure is coated with heavy-duty black Ultrathane paint and protected by a perforated metal grille. Integrated wheels and carry handles simplify transport, while the integrated pole cup accepts standard speaker poles for easy full-range speaker deployment.

21" cast-frame woofer with 6" voice coil

2400W program power (3600W peak)

Three DSP-based preset modes (punchy, smooth, or deep response curves) for increased flexibility in any live sound or club application

iOS and Android app for added wireless subwoofer control

Thermal, overcurrent, and clip protection

LED indicators for power, activity, and protection

Configuration	Active Subwoofer
Enclosure Type	Subwoofer
Total Power Capacity	LF: 2400 W Program 3600 W Peak

Drivers

LF Driver	1 x 21" / 53.34 cm Woofer
LF Voice Coil	6" / 15.24 cm

Performance

Frequency Response	32 Hz to 150 Hz ±3 dB
Maximum SPL	142 dB (Peak) 136 dB (Continuous)
Gain Range	Up to +12 dB
Protections	Output Limiter, Overcurrent, Thermal

Connectivity

Audio I/O	1 x XLR 3-Pin Female Balanced Line Input 1 x XLR 3-Pin Female Balanced Link Input 1 x 1/4" TRS Female Balanced/Unbalanced Link Output 1 x XLR 3-Pin Male Balanced Link Thru 1 x 1/4" TRS Female Balanced Link Thru
Network I/O	None
USB	None
Wireless Connectivity	None

Signal Processing

EQ	3 x Presets (Factory)
Parametric EQ	None
Semi-Parametric EQ	None
Filters	1 x Low-Pass: 80 Hz to 150 Hz
Alignment Delay	None
Phase Adjustment	None

Power

AC Input Power	120 VAC, 60 Hz 230 VAC, 50 Hz
AC Power Connector	1 x IEC Input
Current Consumption	120 VAC: 4 A (Typical) 5.6 A (Max) 230 VAC: 2 A (Typical) 2.8 A (Max)

Physical

Mounting	1 x 1.38" / 3.5 cm Pole Socket (Top)
Handles	3 x Each Side 2 x Top 2 x Bottom
Construction Material	Perforated Metal Grille, Wood
Dimensions	30.5 x 25.5 x 36" / 77.5 x 64.8 x 91.4 cm
Weight	202 lb / 91.6 kg
