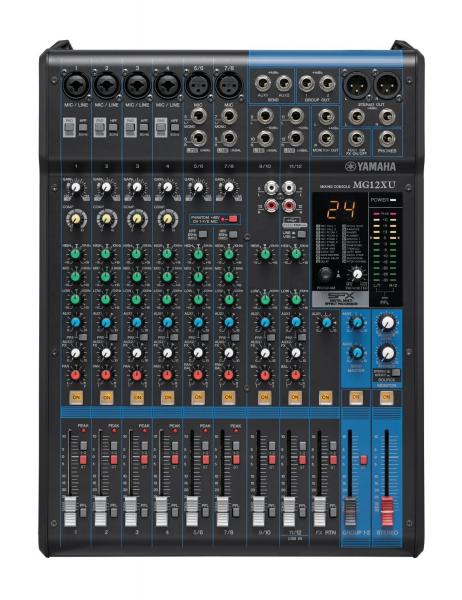

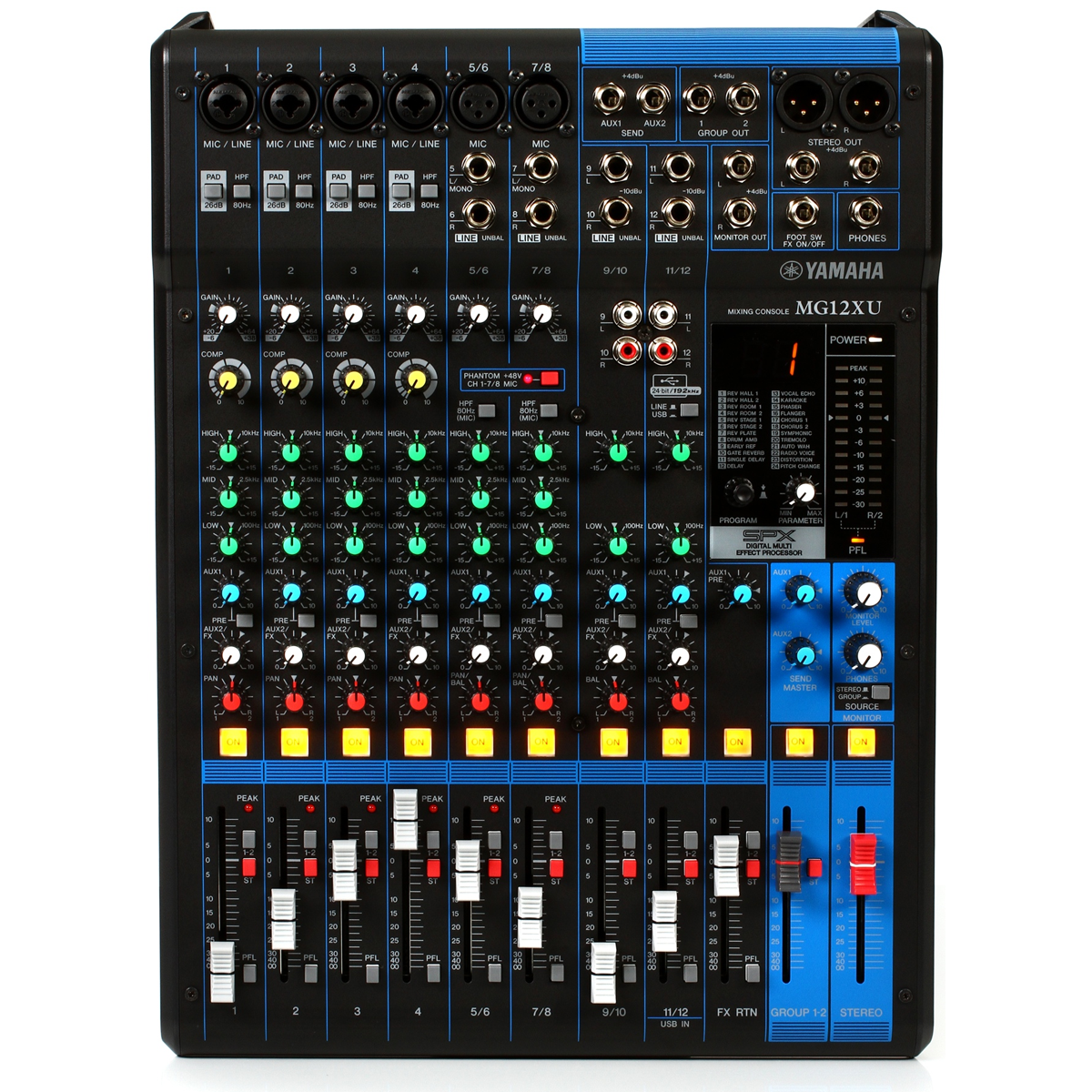

Yamaha MG12XU Analog 12 Ch Mixing Console

Quantity

Road Tough. Studio Ready.

Now in its third incarnation, the MG Series embodies the pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction. The MG12XU is the 12-channel version of the series, with six mono XLR and 1/4 in. hybrid inputs along with three stereo line inputs.

The MG12XU boasts an intuitive interface with capacities suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability that has made it a leader in its class.

Outstanding microphone preamps

Switchable Phantom Power & PAD Switch

1-knob Compressors

EQ and High-pass Filters

AUX / Effect Sends / Group

LED level metering

Built-in SPX Digital Effects

Metal Chassis

On-board processors : SPX algorithm: 24 programs

Phantom power: +48 V

Digital I/O: USB Audio Class 2.0 compliant, Max 192 kHz, 24-bit

Input Channels: 6 Mono[MIC/LINE], stereo[LINE]: 3

Output Channels: STEREO OUT: 2

MONITOR OUT: 1

PHONES: 1

AUX SEND: 1

Bus: Stereo: 1, AUX[FX]: 1

Input Channel Function

PAD: 26 dB (Mono)

HPF: 80 Hz, 12 dB/oct (Mono)

COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec

EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving

EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking

EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping

Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
