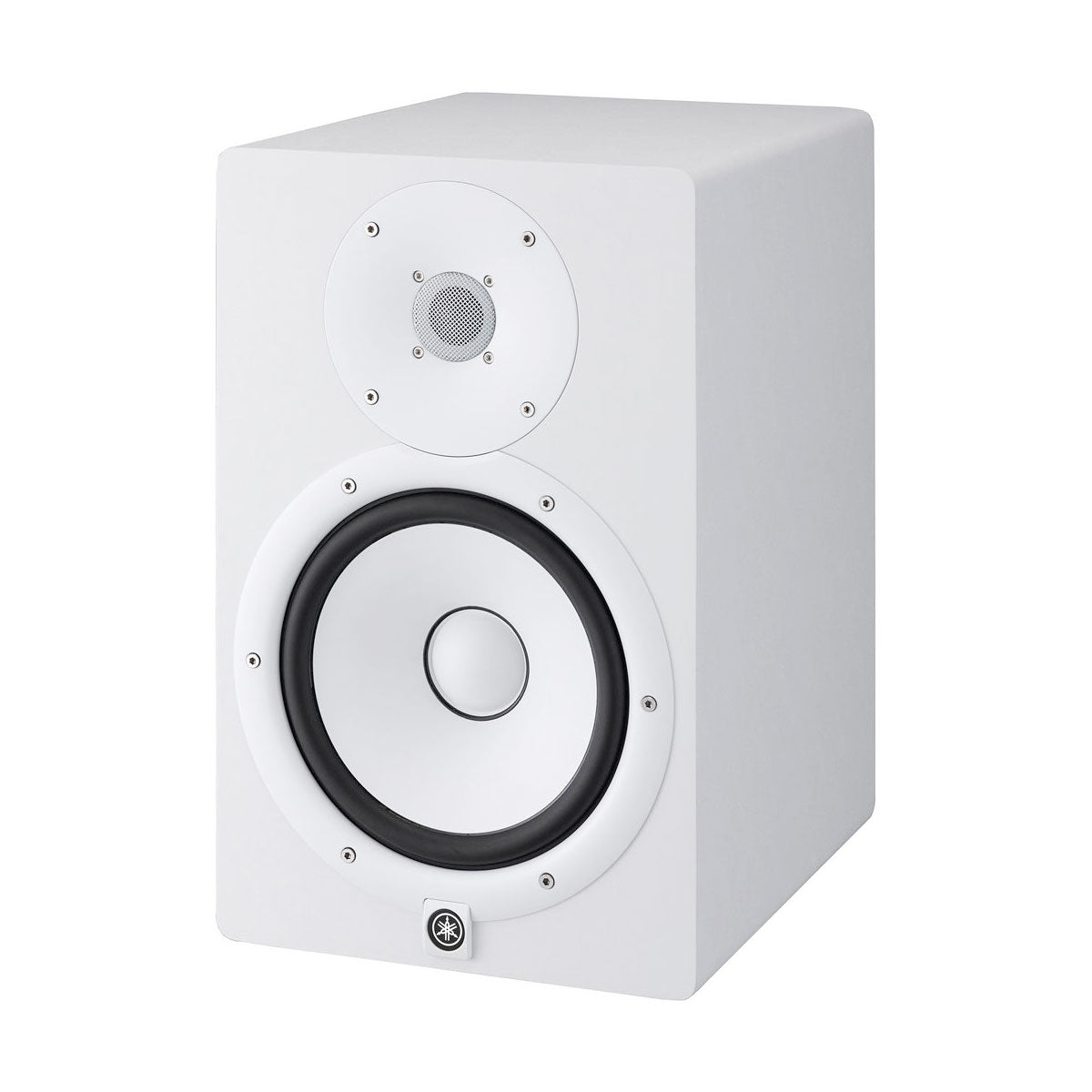

Yamaha HS5 Studio Monitor (White)



Ever since the 1970's the iconic white woofer and signature sound of Yamaha's nearfield reference monitors have become a genuine industry standard for a reason - their accuracy. Unlike studio monitors with added bass or treble frequencies which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process. By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha's speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation HS Series also adds a new 6.5" model to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments

Key Features

• 2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter


• 54Hz - 30kHz frequency response


• 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification


• ROOM CONTROL and HIGH TRIM response controls


• XLR and TRS phone jack inputs accept balanced or unbalanced signals

Monitor Type	Active 2-Way
Enclosure	Bass-Reflex
Power Rating	70 W
Impedance	4 Ohms
Drivers	LF Driver: 1 x 5" / 12.7 cm Cone HF Driver: 1 x 1" / 2.54 cm Dome
Amplification	1 x LF Amplifier: Class-D Rated at 45 W 1 x HF Amplifier: Class-D Rated at 25 W

Performance

Frequency Range	74 Hz to 24 kHz (at -3 dB) 54 Hz to 30 kHz (at -10 dB)
Analog Input Sensitivity/Gain	-10 dBu
Phase Adjustment	None

Signal Processing

EQ	1 x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments) 1 x HF Shelf: -2 to +2 dB at 2 kHz (2 dB Increments)
Filters	None
Parametric EQ	None

Crossover

Crossover Frequency

2 kHz

Connectivity

I/O	1 x XLR Balanced Female Analog Input (10 Kilohms) 1 x 1/4" TRS Balanced Female Analog Input (10 Kilohms)

Power

Power Consumption

45 W

General

Enclosure Material	MDF
Mounting Points	None
Dimensions (W x H x D)	6.7 x 11.2 x 8.7" / 17 x 28.5 x 22.2 cm
Weight	11.7 lb / 5.3 kg

Packaging Info

Package Weight	16.2 lb
Box Dimensions (LxWxH)	16.4 x 12 x 10.2"
