Yamaha HS5 Studio Monitor (Black)

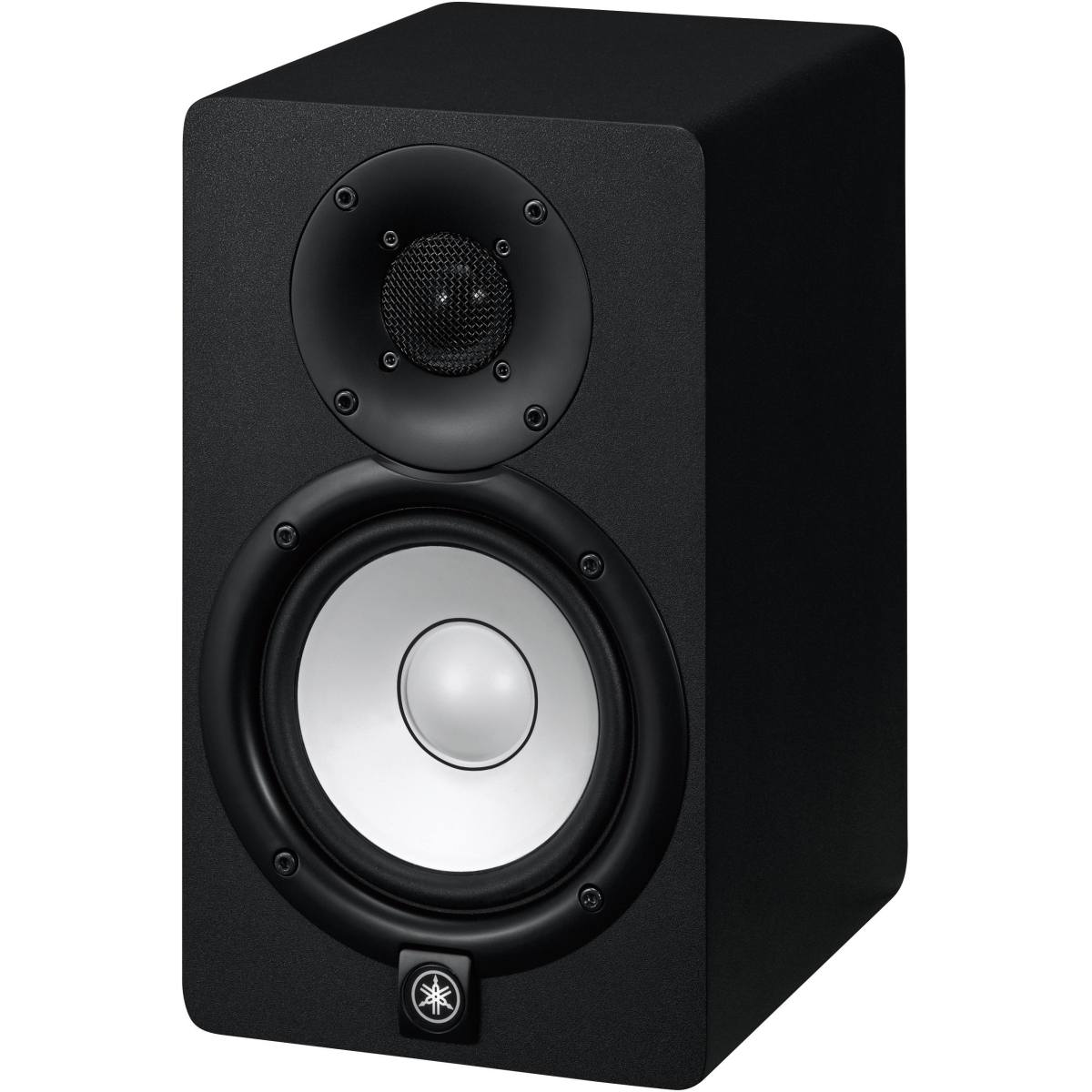

2-way bass-reflex bi-amplified nearfield studio monitor with 5" cone woofer and 1" dome tweeter.
- 54Hz - 30kHz frequency response
- 45W LF plus 25W HF bi-amp system for high-performance 70W power amplification
- ROOM CONTROL and HIGH TRIM response controls

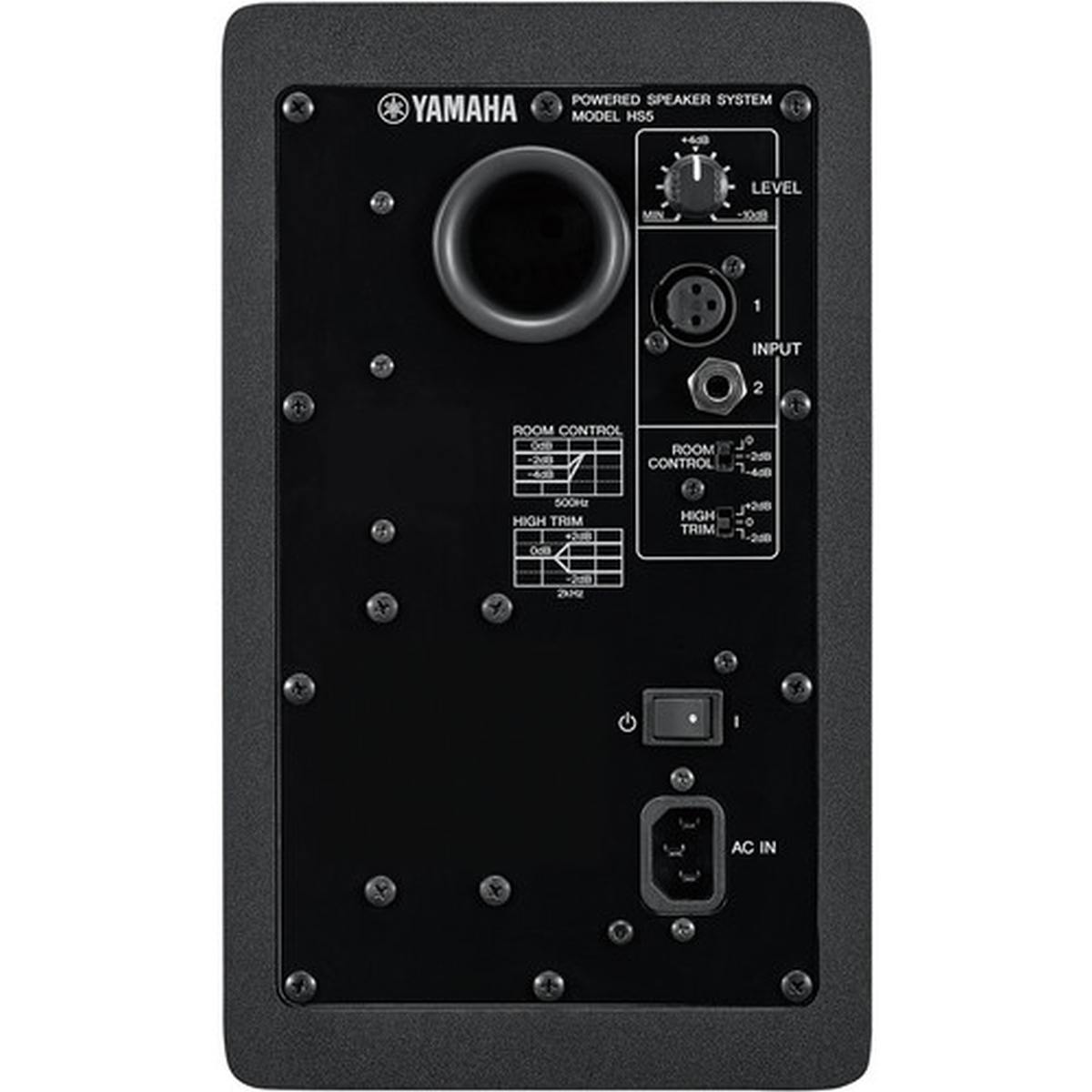

- XLR and TRS phone jack inputs accept balanced or unbalanced signals
- Monitor Type Active
- 2-Way Enclosure Bass-Reflex
- Power Rating 70 W
- Impedance 4 Ohms
- Drivers LF Driver: 1 x 5" / 12.7 cm Cone HF Driver: 1 x 1" / 2.54 cm
- Dome Amplification 1 x LF
- Amplifier: Class-D Rated at 45 W 1 x HF
- Amplifier: Class-D Rated at 25 W Performance
- Frequency Range 74 Hz to 24 kHz (at -3 dB) 54 Hz to 30 kHz (at -10 dB)
- Analog Input Sensitivity/Gain -10 dBu
- Phase Adjustment None
- Signal Processing EQ 1 x LF Shelf: -4 to 0 dB at 500 Hz (2 dB Increments) 1 x HF Shelf: -2 to +2 dB at 2 kHz (2 dB Increments)
- Filters None
- Parametric EQ None
- Crossover Crossover Frequency 2 kHz Connectivity I/O 1 x XLR Balanced Female Analog Input (10 Kilohms) 1 x 1/4" TRS Balanced Female Analog Input (10 Kilohms) Power Power Consumption 45 W
- General Enclosure Material
- MDF Mounting Points None
- Dimensions (W x H x D) 6.7 x 11.2 x 8.7" / 17 x 28.5 x 22.2 cm Weight 11.7 lb / 5.3 kg
- Packaging Info Package Weight 16.2 lb
- Box Dimensions (LxWxH) 16.4 x 12 x 10.2"
