Warm Audio EQP-WA Pultec Style Tube Equalizer
Warm Audio EQP-WA Pultec Style Tube Equalizer
Regular price
$6,640.00 TTD
Regular price
$0.00 TTD
Sale price
$6,640.00 TTD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

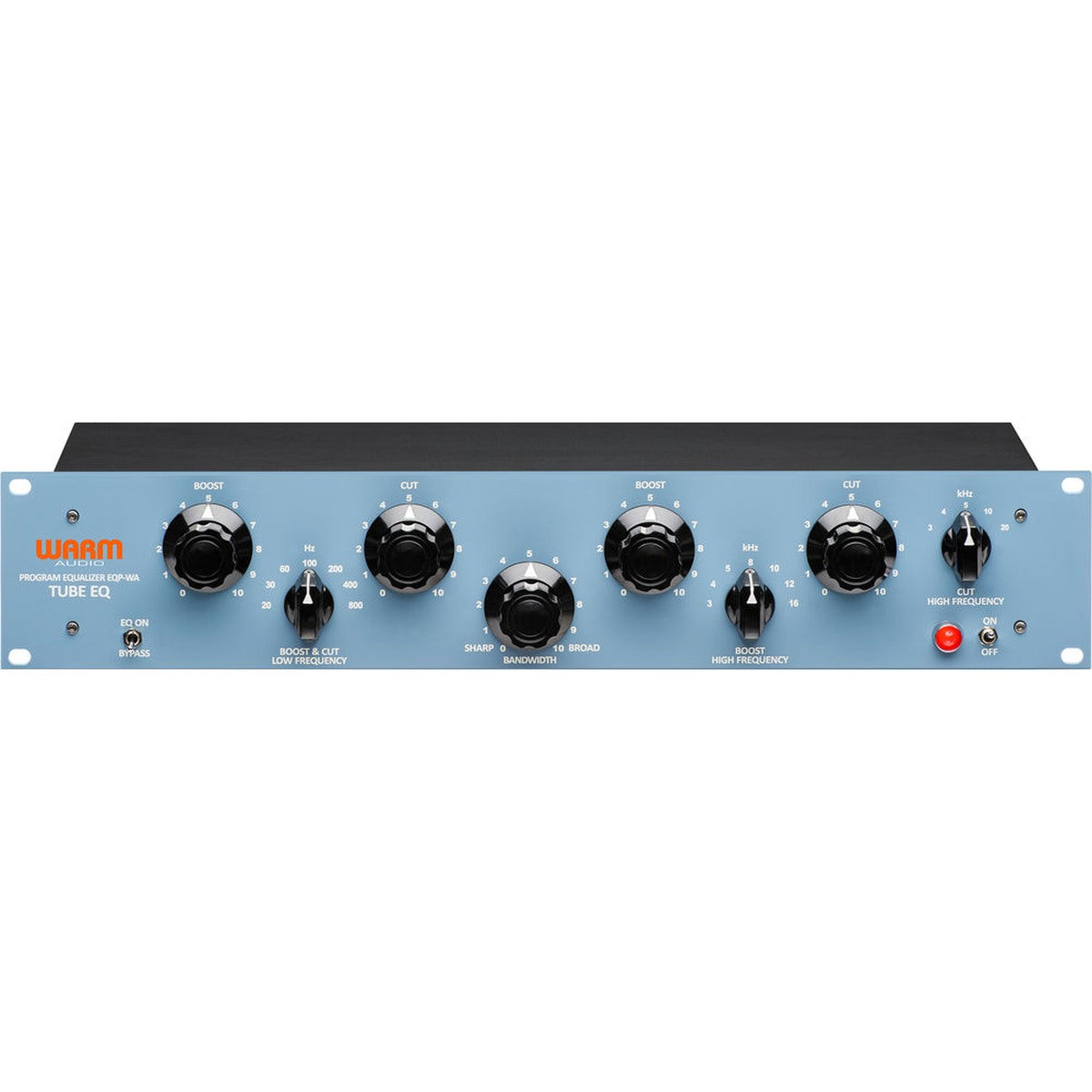

The Warm Audio EQP-WA Pultec Style Tube Equalizer is a faithful re-creation of the iconic \"Pultec EQP-1A\" tube equalizer, renowned in the music industry for its sonic prowess. With premium components like CineMag I/O transformers and high voltage 12AX7 and 12AU7 tubes, this equalizer delivers the same classic sound and aesthetic as the original.

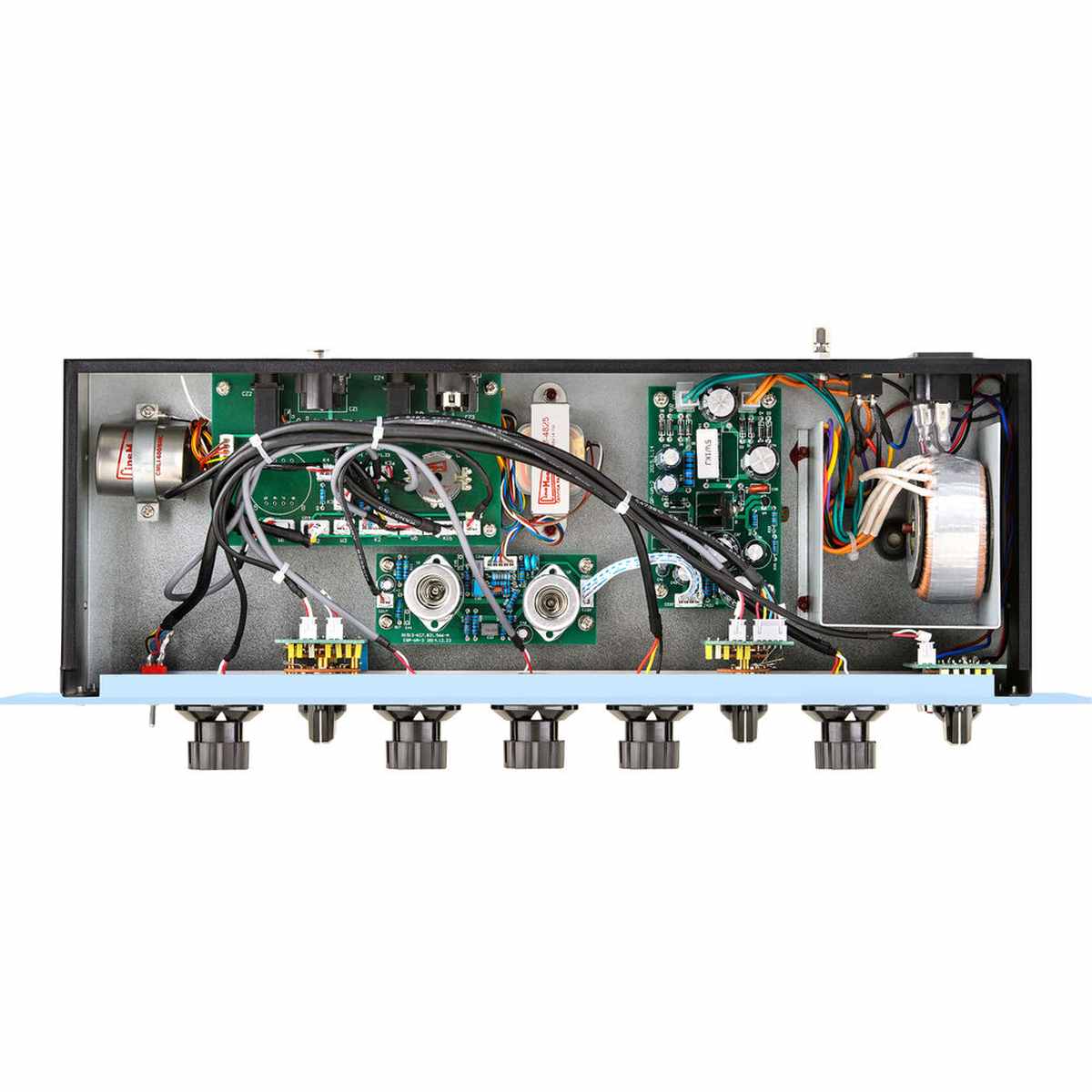

\nThe fully discrete design includes a CineMag inductor EQ section that is bypassable so that the unit can still be used to warm your signal without using the EQ section. It provides XLR and TRS transformer-balanced inputs and outputs with no insertion loss. It has a flat frequency response from 20 to 50,000 Hz. A 12 dB low frequency boost and an 18 dB low frequency cut is available at 20, 30, 60, 100, 200, 400, and 800 Hz. An 18 dB high frequency boost is available at 3, 4, 5, 8, 10, 12, and 16 kHz. A high frequency cut of 14 dB is available at 3, 4, 5, 10, and 20 kHz. The five added frequency points provides greater flexibility and the boost and cut controls can be used simultaneously to achieve a phase effect.
\n
\nKey Features
\nRecreation of Pultec EQP-1A
\nAesthetics and Sonics of the Original CineMag
\nTransformers and Premium Tubes
\nFully Discrete Design
\n
\nSpecifications:
\nComponents High-Voltage 12AX7 tubes
\nHigh-Voltage 12AU7 tubes
\nCineMag inductor EQ section

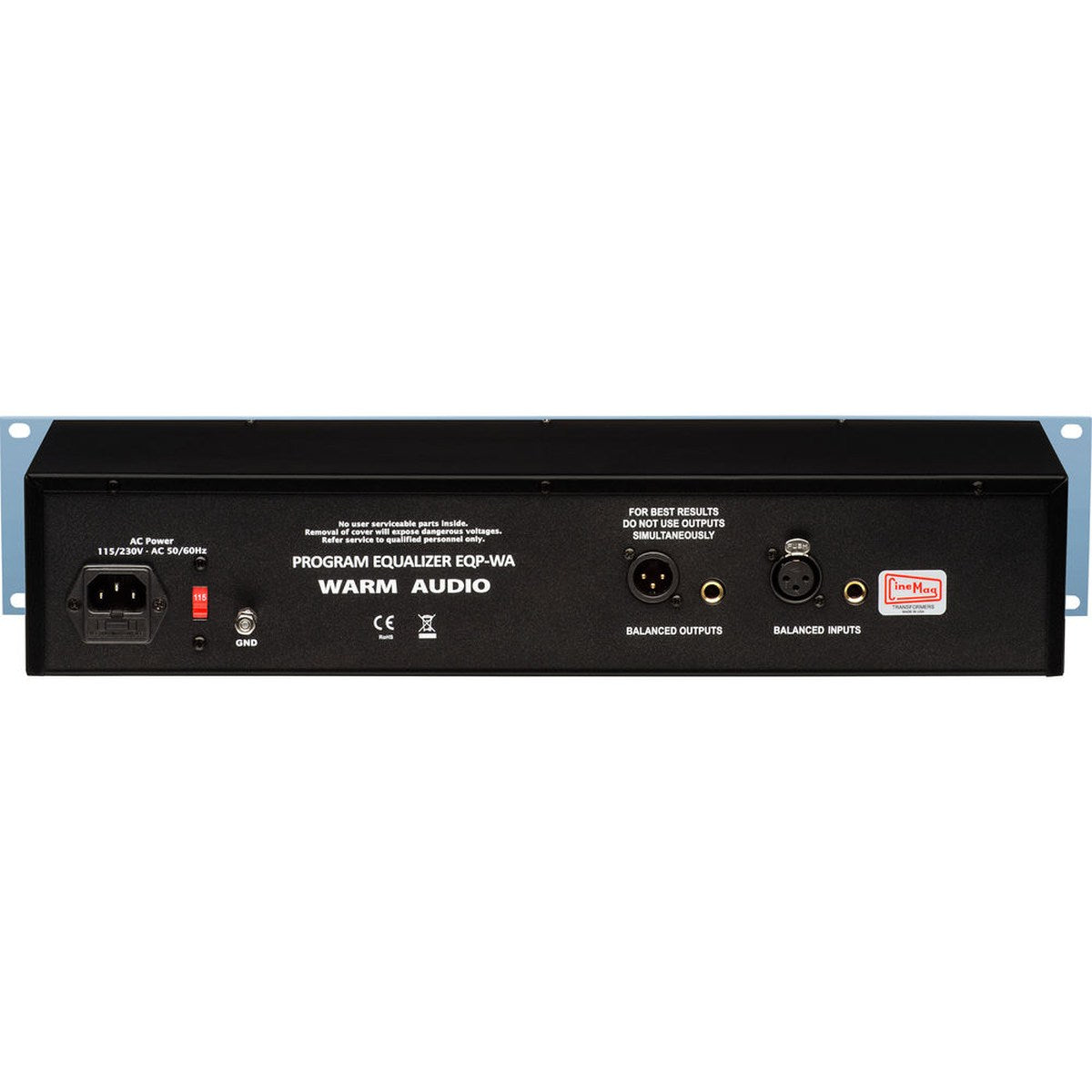

\nI/O XLR transformer-balanced input
\nTRS transformer-balanced input
\nXLR transformer-balanced output
\nTRS transformer-balanced output
\nFrequency Response 20 to 50,000 Hz
\nLow Frequency EQ 12 dB Boost: 20, 30, 60, 100, 200, 400, 800 Hz
\n18 dB Cut: 20, 30, 60, 100, 200, 400, 800 Hz
\nHigh Frequency EQ 18 dB Boost: 3, 4, 5, 8, 10, 12, 16 kHz
\n14 dB Cut: 3, 4, 5, 10, 20 kHz
\nAC Power Inlets 115/230 volt switchable IEC
\nRack Units 2
\nDimensions 19.0 x 3.5 x 6.0\" (48.3 x 8.9 x 15.2 cm)
\nWeight Not specified by the manufacturer
\nPackaging Info
\nPackage Weight 10.75 lb
\nBox Dimensions (LxWxH) 21.8 x 11.2 x 6.4\"
\n
\nThe fully discrete design includes a CineMag inductor EQ section that is bypassable so that the unit can still be used to warm your signal without using the EQ section. It provides XLR and TRS transformer-balanced inputs and outputs with no insertion loss. It has a flat frequency response from 20 to 50,000 Hz. A 12 dB low frequency boost and an 18 dB low frequency cut is available at 20, 30, 60, 100, 200, 400, and 800 Hz. An 18 dB high frequency boost is available at 3, 4, 5, 8, 10, 12, and 16 kHz. A high frequency cut of 14 dB is available at 3, 4, 5, 10, and 20 kHz. The five added frequency points provides greater flexibility and the boost and cut controls can be used simultaneously to achieve a phase effect.
\n
\nKey Features
\nRecreation of Pultec EQP-1A
\nAesthetics and Sonics of the Original CineMag
\nTransformers and Premium Tubes
\nFully Discrete Design
\n
\nSpecifications:
\nComponents High-Voltage 12AX7 tubes
\nHigh-Voltage 12AU7 tubes
\nCineMag inductor EQ section
\nI/O XLR transformer-balanced input
\nTRS transformer-balanced input
\nXLR transformer-balanced output
\nTRS transformer-balanced output
\nFrequency Response 20 to 50,000 Hz
\nLow Frequency EQ 12 dB Boost: 20, 30, 60, 100, 200, 400, 800 Hz
\n18 dB Cut: 20, 30, 60, 100, 200, 400, 800 Hz
\nHigh Frequency EQ 18 dB Boost: 3, 4, 5, 8, 10, 12, 16 kHz
\n14 dB Cut: 3, 4, 5, 10, 20 kHz
\nAC Power Inlets 115/230 volt switchable IEC
\nRack Units 2
\nDimensions 19.0 x 3.5 x 6.0\" (48.3 x 8.9 x 15.2 cm)
\nWeight Not specified by the manufacturer
\nPackaging Info
\nPackage Weight 10.75 lb
\nBox Dimensions (LxWxH) 21.8 x 11.2 x 6.4\"
\n
