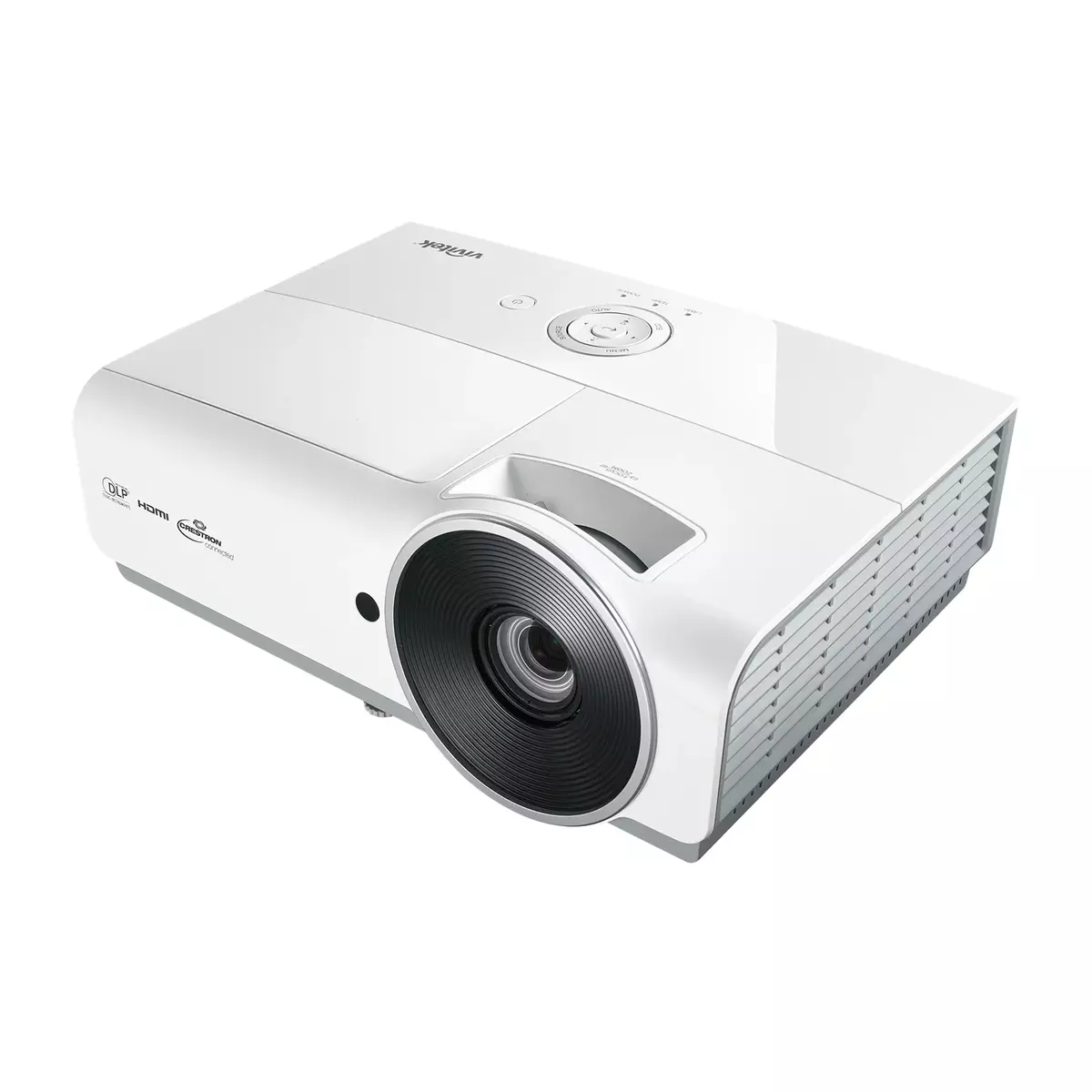

The Vivitek DW886 projector is an ideal choice for educational settings, where connectivity to a variety of devices is essential. With three HDMI ports, educators can easily stream media from any source, while the 6-segment color wheel ensures accurate and saturated colors. The projector's sealed optical engine is reliable and durable, even in the most rigorous applications. It also has a low cost of ownership, thanks to its exceptional 7,000 hour average lamp life.

Other key features of the Vivitek DW886 include its 3,800 ANSI lumens of brightness and 15,000 contrast ratio, energy-efficient lamps, and multiple connectivity options, including HDMI, VGA-in (2x), VGA-Out, S-Video, and Composite Video. The projector is also 3D-compatible and has an internal audio speaker delivering 10W of total audio power.

The Vivitek DW886 also features advanced technologies like MHL, BrilliantColor, and DLP, which work together to produce clear, vibrant, and precise images. Plus, with a 5-year warranty for parts and labor, 3-year advanced replacement, and 1-year lamp warranty, educators can be confident in their investment.



Brightness     3800 Lumens

Native Resolution     WXGA (1280 x 800), 16:10 format

Max. Resolution     WUXGA (1920 x 1200)

Contrast Ratio     15,000:1 Contrast Ratio (Full on/off)

Lamp Life and Type     3500/5000/7000 Hours (Normal/Eco/Dynamic Eco Mode), 240W

Lamp Part #     5811119560-SVV

Display Type     Single 0.65” DLP® Technology by Texas Instruments

Throw Ratio (±3%)     1.28 to 1.536 (Distance/Width)

Image Size (Diagonal)     30.2" - 302" (0.767 – 7.67m)

Projection Distance     3.28’ to 32.8’ (1 to 10m)

Projection Lens     F2.5~2.72 , f=17.81~21.35mm

Zoom Ratio     1.2:1 Manual Zoom/Focus Lens

Aspect Ratio     16:10 Native: 16:9, and 4:3 Compatible

Offset     111.3%

Keystone Correction     ±40° Vertical

Color Spectrum     1.07 Billion

Horizontal Scan Rate     15, 31 to 91.4KHz

Vertical Scan Rate     24 ~ 30Hz, 47 ~ 120Hz

Speaker     10 Watt Mono

Remote Control     Full Featured IR Remote w/ Laser Pointer

Projection Method     Table Top or Ceiling Mount (Front or Rear)

Uniformity     85%

Computer Compatibility     WUXGA, UXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized; VESA Standards; PC and Macintosh Compatible

Video Compatibility     SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i/p), NTSC (M, 3.58/4.43 MHz), PAL (B, D, G, H, I, M, N), SECAM (B, D, G, K, K1, L)

Full 3D Video Compatibility     720p 50/60 Frame Packing, 1080i 50/60 Side-by-Side, 1080p24 Frame Packing, Frame Sequential

    HDMI (X3)     HDMI 1 v1.4/MHL     RS-232c

HDMI 2 v1.4     RJ45

HDMI 3 v1.4     12V-Out Trigger

VGA     VGA-In     Audio-In     RCA L/R

VGA-Out     Mini-Jack

S-Video     Audio-Out (Mini-Jack)

Composite Video     Microphone-In (Mini-Jack)

5V Power-Out (USB Type A )     Mini USB (Service Only)

Security     Kensington® Lock Port

Weight     6.75lbs (3.06kg)

Dimensions (W x D x H)     12.4" x 8.5" x 4.9" (314 x 216 x 126mm)

Noise Level     32dB/36dB (Eco/Normal Mode)

Power     Supply: AC 100-240V, 50/60Hz

Consumption: 310W (Normal Mode), 250W (Eco Mode), <0.5W (Standby Mode)

Operating Temperature     41 to 104°F (5 to 40°C)

Warranty     5-Year Limited Parts/Labor, 1year Lamp

Standard Accessories     AC Power Cord, VGA Cable, Remote Control, Batteries for Remote, User’s Manual (CD), Warranty Card

UPC     813097022486
