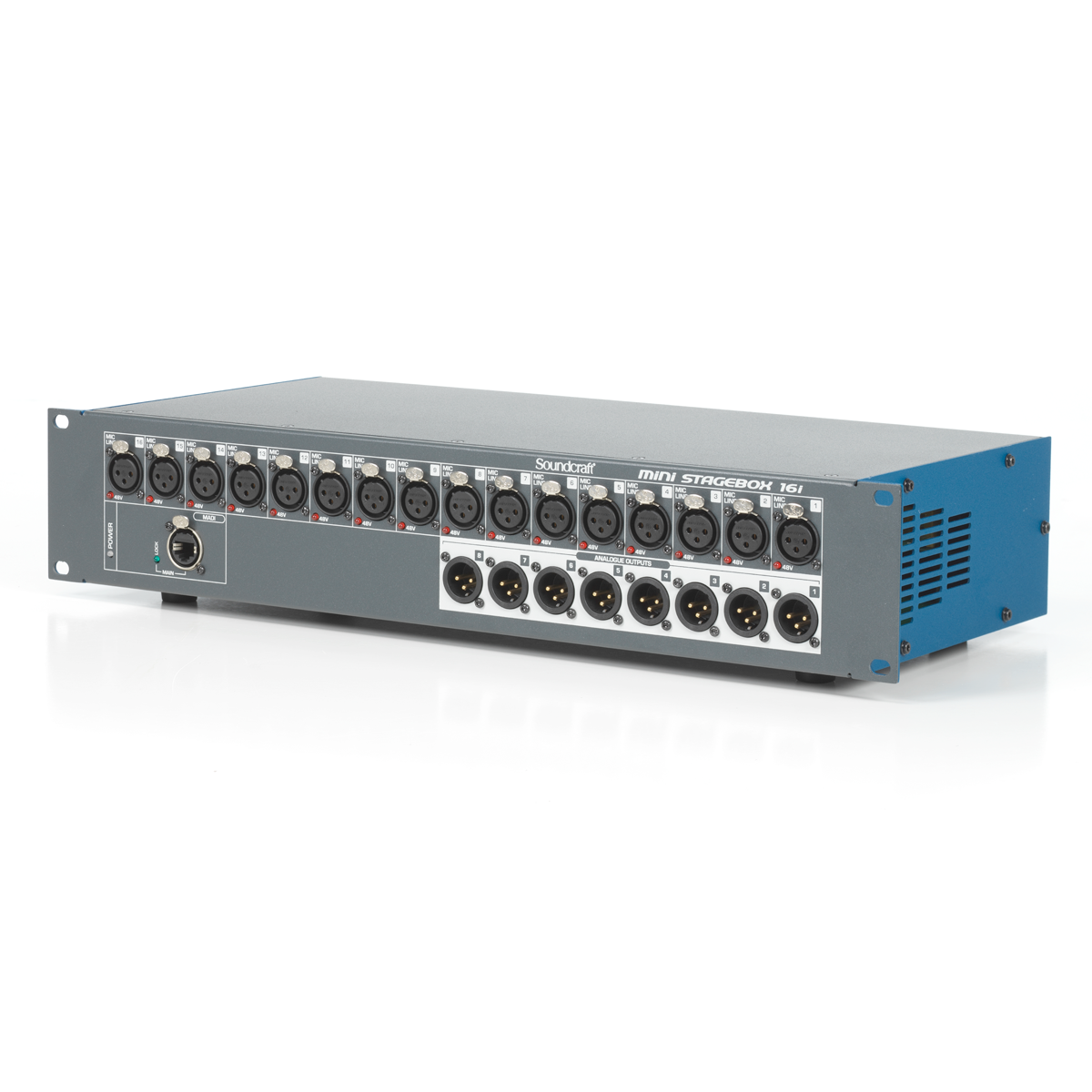

Soundcraft Mini Stagebox 16i for Si Series Consoles

The Soundcraft Mini Stagebox 16i is a versatile solution offering remote-controlled I/O for Soundcraft Si series products, including the Si Impact mixing console. Here are the key features and specifications:



    Remote-Controlled I/O: Allows for remote control of multiple channels of I/O for Soundcraft Si series consoles.

    High-Quality Components: Equipped with Studer-designed preamps to ensure exceptional sound quality.

    Versatility: Suitable for live sound engineers, houses of worship, bands, club owners, and corporate customers seeking affordable remote-controlled I/O.

    MADI I/O: Provides multiple channels of MADI I/O via standard Cat5 cabling, eliminating the need for expensive analog snakes.

    Streamlined Design: Essential connections and features, including a MADI over RJ45 connector, are built into the chassis.

    Easy Setup: No local hardware configuration or option cards required; engineers can simply plug in, power on, and control remotely using a Soundcraft Si console.

    Analog Inputs and Outputs: Features 16 simultaneous channels of external analog input and 8 analog outputs, suitable for house and stage monitors, as well as broadcast or streaming feeds.



Specifications:



    Frequency Response: From stagebox mic input to stagebox line output, with a 4dBu input signal and 4dB input mic gain, the frequency response is 20Hz to 20kHz.

    Sampling Frequency: Operates at a sampling frequency of 48kHz.

    Crosstalk: At 10dB input gain and a -22dBu 10kHz input signal, adjacent channels have a crosstalk of <-80dB.

    Converter Resolution: Utilizes 24-bit resolution for audio conversion.

    Latency: The latency from MSB In to Mixer to MSB Out is 1.5ms.

    Internal Clock Accuracy: Maintains an internal clock accuracy of +/-25ppm.



Overall, the Soundcraft Mini Stagebox 16i offers professional-grade features, exceptional sound quality, and ease of use, making it an ideal choice for various live sound applications and venues.
