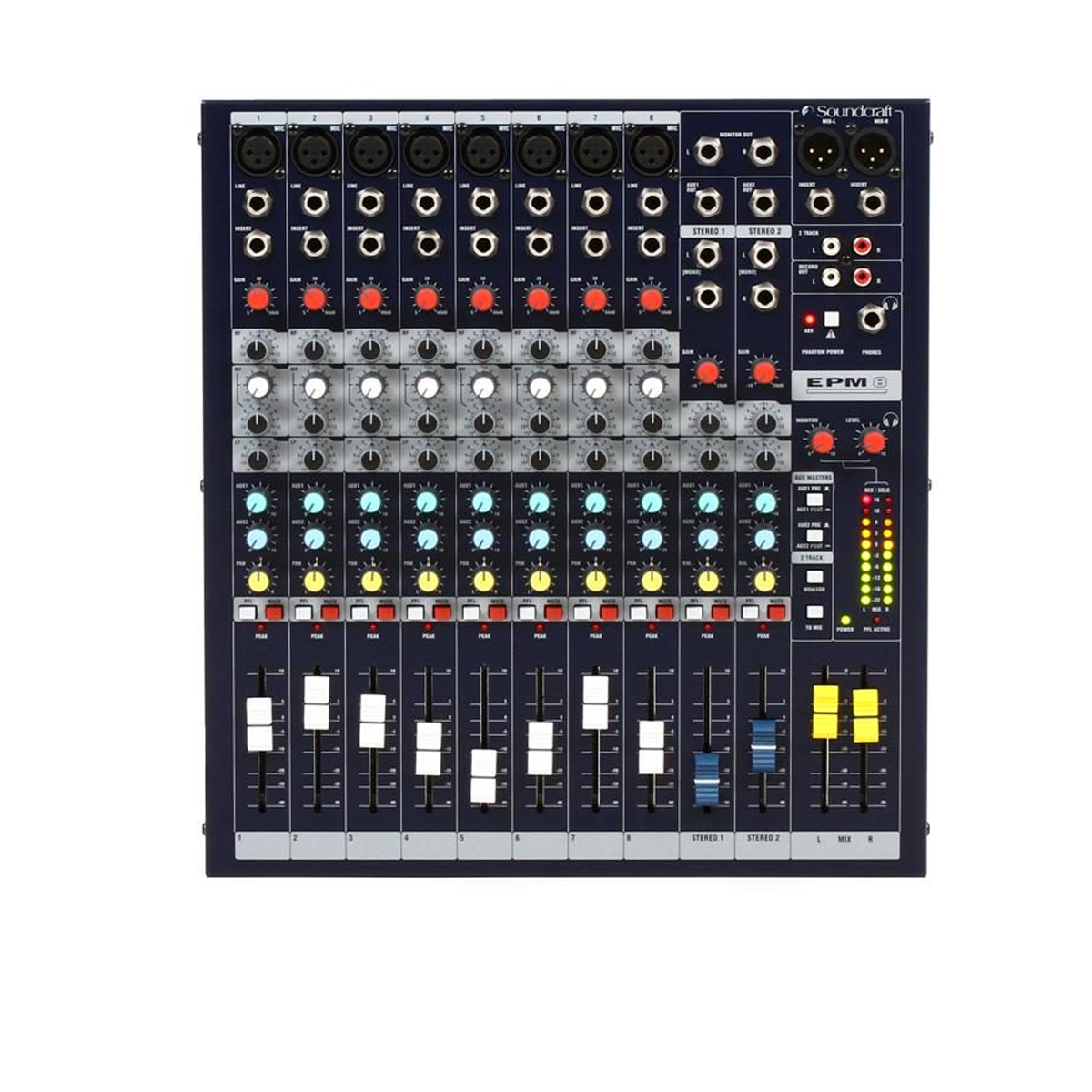

A straight-forward, yet professional alternative to complex audio mixers

\n\n

Constructed in a 6-, 8- or 12-channel chassis, the EPM mixers are well-suited for recording and sound reinforcement applications.
\nIt features 8 mono and 2 stereo input channels providing the flexibility needed to accommodate the recording studio, venue or touring musician. All mono inputs feature 1/4\" phone line and balanced XLR microphone inputs. The famed GB30 microphone preamps provide the quiet, detailed signal synonymous with Soundcraft's large FOH consoles. The stereo inputs provide L/R 1/4\" phone connections and are ideal for connecting stereo devices such as keyboards, returning effects, etc.
\nThe EQ section features a sweepable mid-range on all mono channels and provides smooth frequency contouring. Inserts on all mono channels and stereo output enable signal routing to external signal processors. The compact profile, rich sound quality and flexibility of the EPM Series provides everything necessary for use in project recording, video editing, night clubs, bars, meeting halls, houses-of-worship, and more.
\n
\n8 Mono and 2 Stereo Channels
\nThe EPM 8 features 8 mono microphone and line input channels, 2 stereo inputs feature L/R 1/4\" phone connections
\n
\nComprehensive Controls
\nThe comprehensive layout is designed to attract users who require a straight-forward mixing environment
\n
\nGB30 Microphone Preamplifiers
\nAll 12 mono inputs feature Soundcraft's GB30 microphone preamps for quiet, clean large-format FOH console-quality
\n
\nCompact and Professional
\nThe EPM Series consoles pack a professional feature set in a compact, mobile enclosure

\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Total # Of Inputs	8x Mono \n 2x Stereo
Mic/Line Inputs	8x Line Mono: 1/4\" TRS Phone \n 2x Line Stereo: L/R 1/4\" TRS Phone \n 8x Microphone: 3-pin XLR
Stereo Line Inputs	2x Stereo: L/R 1/4\" TRS Phone
In-Line Inputs/Returns	No
AUX Sends	2x Aux Sends
AUX Returns	No dedicated returns
Inserts	1/4\" TRS Phone - Mono Inputs, Main Stereo Output
BUS (Group) Outputs	Stereo Output Only
2 Trk Master I/O	Mix L/R: Stereo Paired L/R RCA Phono
ALT I/O	No
Monitor Outputs	Monitor: L/R Stereo Paired 1/4\" TRS Phone
EQ Section	Mono Inputs +/- 15 dB \n Lo: 80 Hz \n Mid: 150 Hz - 3.5 kHz (swept) \n Hi: 12 kHz \n Q: 1.5 \n Stereo Inputs +/-15 dB \n Lo: 80 Hz \n Mid: 720 Hz \n Hi: 12 kHz
Solo/Mute	All Input Channels
Channel Level Control	100 mm Faders
Trim/Gain Control	Rotary Potentiometers
Phantom Power	+48 V Phantom
Metering	10-Segment L/R Peak LEDs \n +48 V Phantom Power LED \n PFL Active LED \n Power Indicator LED
Frequency Response	20 Hz to 20 kHz +/-1.5 dB
Dynamic Range	Not specified by manufacturer
Signal-to-Noise Ratio	Noise (22 Hz - 22 kHz measurement bandwidth) \n Mic EIN @ max gain, 150 ohms source impedance -127 dBu \n Mix @ max, faders to down <-85 dBu
Total Harmonic Distortion (THD)	Mic sensitivity 30 dB, +14 dBu @ mix output: <0.02%
Power Supply	Integral lightweight switched-mode PS \n AC mains supply: 85-270 V AC, 50/60 Hz universal input \n Power Consumption: Less than 20 W
Dimensions (W x H x D)	13.0 x 3.56 x 14.3\" (330 x 90.5 x 362 mm)
Weight	15.87 lb (7.2 kg)

\nPackaging Info\n\n\n \n \n \n \n \n \n \n \n \n \n

Package Weight	13 lb
Box Dimensions (LxWxH)	18 x 17 x 7.8\"
