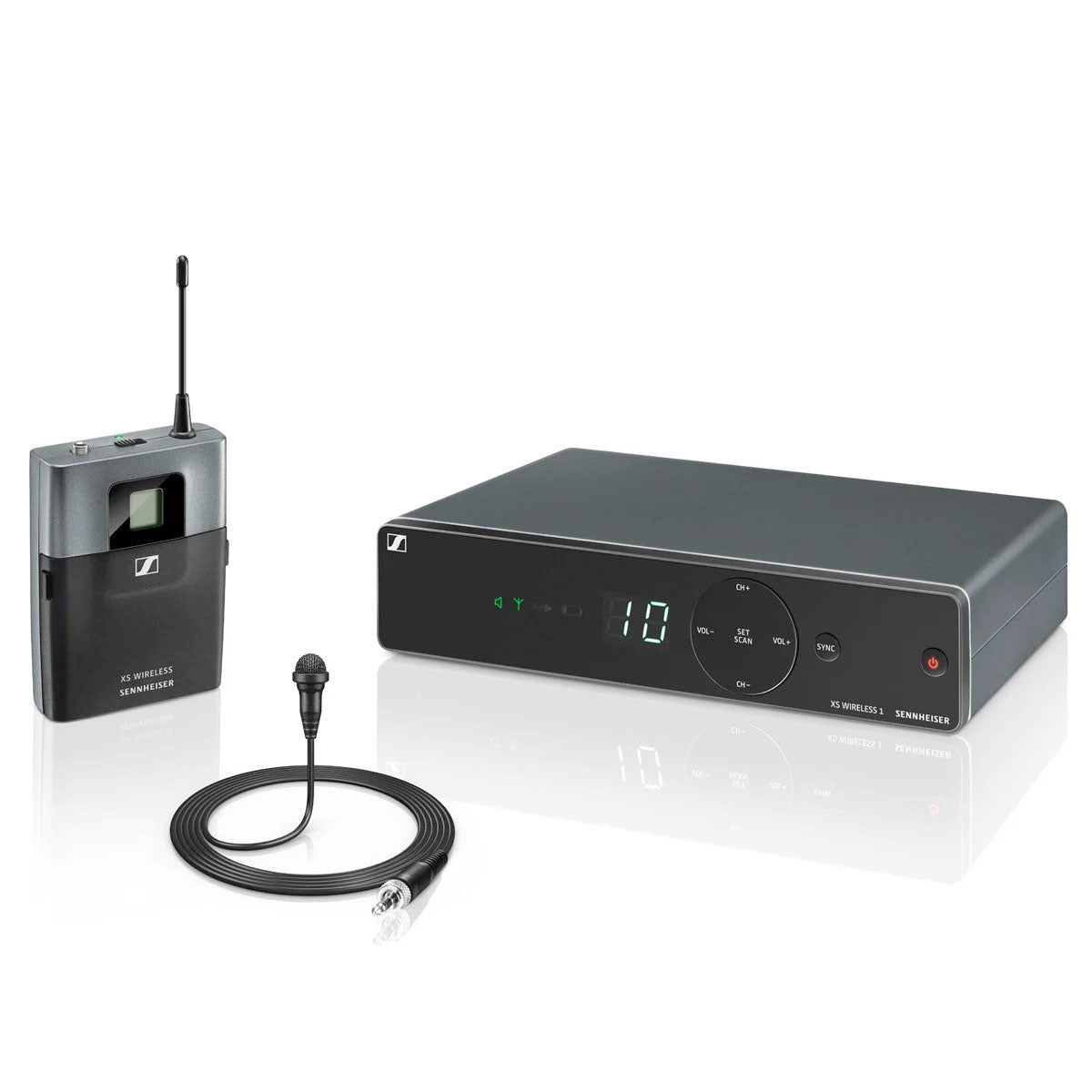

Sennheiser XSW 1-ME2-A UHF Lavalier Microphone

Quantity

Tags: lavalier lavalier sennheiser sennheiser microphones

Excellent for a powerful and inspiring presentations

Easy to use wireless system for public speakers and presenters with up to 10 compatible channels. Inspire your audience - go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 LAVALIER MIC SET is an easy to use all-in- one wireless system for presenters and moderators, excellent for a powerful and inspiring presentation. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a lightweight bodypack transmitter and an unobtrusive clip-on microphone.

- Compact bodypack transmitter, unobtrusive clip-on microphone

- Antenna-switching diversity reception

- Integrated antennas

- Automatic frequency management and synchronization via remote channel for easy setup

- Selectable UHF frequencies within a large bandwidth

- Up to 10 compatible channels

   Dimensions

        approx. 200 x 42 x 127 mm

    Weight

        approx. 340g

    Power supply

      12 V DC nom. / 300 mA

    AF frequency response

        50 to 16,000 Hz (–3 dB)

Transmitter

    Dimensions

        approx. 71 x 96 x 28 mm

    Weight

        approx. 95g

    Power supply

        2 AA size batteries, 1.5 V

    Adjustment Range Transmitter

        0 to -30 dB, adjustable in 10 dB steps

    Microphone

        condenser

    THD, total harmonic distortion

        ≤ 0.9%

    Pick-up pattern

        omni-directional

    Signal-to-noise ratio

        ≥ 103 dBA

    RF output power

        10 mW

    Switching bandwidth

        up to 24 MHz

    Operating time

        approx. 10 hrs

    Modulation

        wideband FM

    Output voltage

        '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu

    Housing

        rugged ABS housing

    Diversity reception

        antenna switching diversity via internal antennas

    Frequency

        8 frequency banks, each with up to 10 factory-preset channels

    Frequency range

        A: 548-572 MHz, GB: 606-630 MHz

        B: 614-638 MHz, C: 766-790 MHz

        D: 794-806 MHz

        E: 821-832 MHz, 863-865 MHz

        K: 925-937.5 MHz

    Sensitivity

        < 3 μV at 52 dB(A)rms S/N

    SPL for peak deviation

        130 dB

    Squelch

        adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)

    Synchronization

        2.4 GHz, Low Power OQPSK (only active during synchronization)

    Input sensitivity

        1.5 mV / Pa

    Audio adjustment range

        45 dB, adjustable in 5-dB steps

    Line / Mic level

        20 dB, switchable

    Temperature Range

        operation: 0°C to +40°C, storage: –20°C to +70°C

    Receiver Principle

        double superheterodyne
