Raise your voice

\nEasy to use all-in-one wireless system for singers and presenters. Rely on a solid transmission with up to 10 compatible channels in a stable UHF band

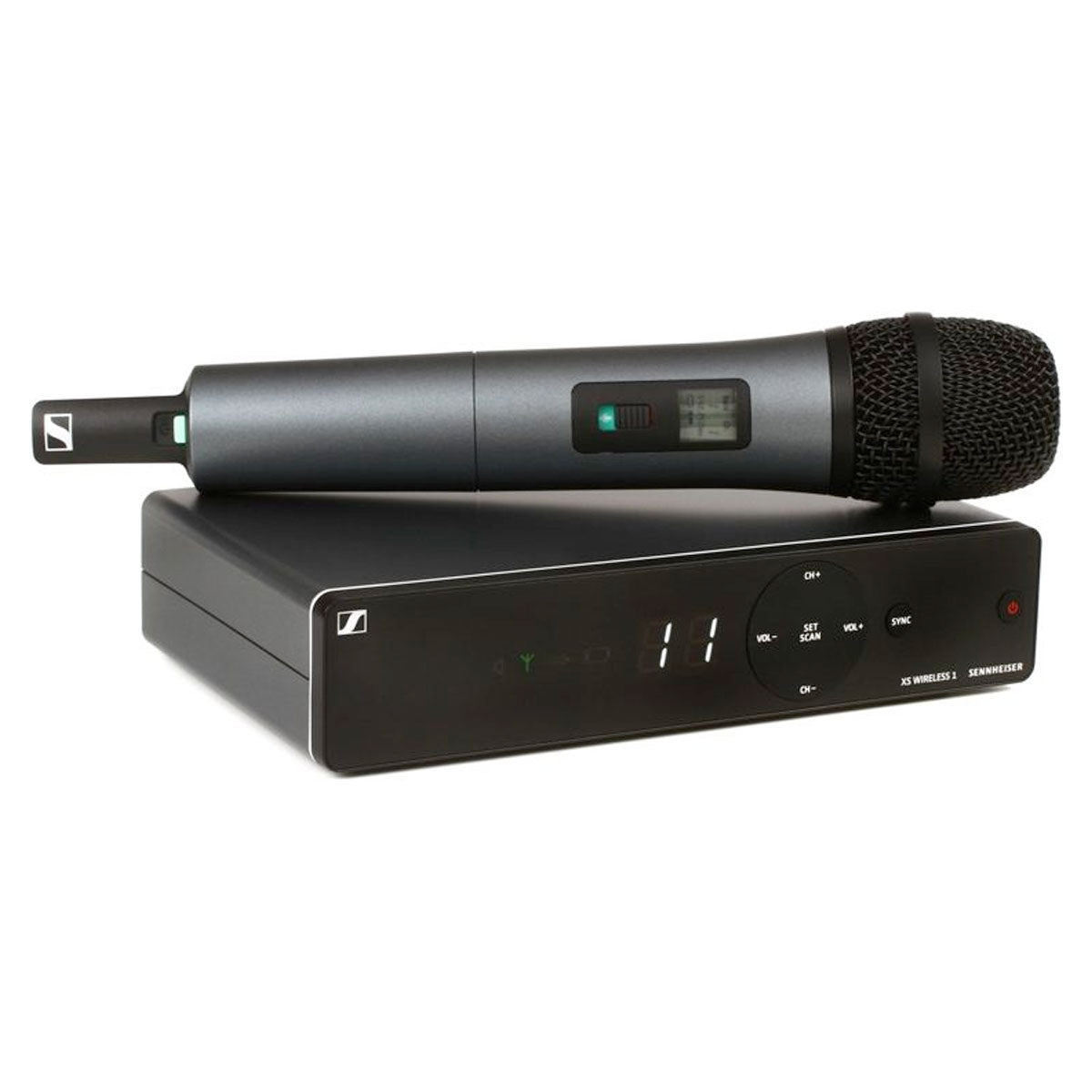

\nGo for XS WIRELESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 VOCAL SET is an easy-to-use all-in-one wireless system for singers and presenters, excellent for live sound featuring Sennheiser’s renowned evolution microphone capsule.
\n- Antenna-switching diversity reception
\n- Integrated antennas
\n- Automatic frequency management and synchronization via remote channel for easy setup
\n- Selectable UHF frequencies within a large bandwidth
\n- Up to 10 compatible channels
\n
\n    Dimensions
\n        approx. 200 x 42 x 127 mm
\n
\n    THD, total harmonic distortion
\n        ≤ 0.9%
\n
\n    Pick-up pattern
\n        cardioid
\n
\n    Signal-to-noise ratio
\n        ≥ 103 dBA
\n
\n    RF output power
\n        10 mW
\n
\n    Switching bandwidth
\n        up to 24 MHz
\n
\n    Operating time
\n        approx. 10 hrs
\n
\n    Modulation
\n        wideband FM
\n
\n    Output voltage
\n        1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
\n
\n    Housing
\n        rugged ABS housing
\n
\n    Dynamic range
\n        dynamic
\n
\n    Frequency
\n        8 frequency banks, each with up to 10 factory-preset channels
\n
\n    Frequency range
\n        A: 548-572 MHz, GB: 606-630 MHz
\n        B: 614-638 MHz
\n        C: 766-790 MHz
\n        D: 794-806 MHz
\n        E: 821-832 MHz, 863-865 MHz
\n        K: 925-937.5 MHz
\n
\n    Sensitivity
\n        < 3 μV at 52 dB(A)rms S/N
\n
\n    Squelch
\n        adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
\n
\n    Synchronization
\n        2.4 GHz, Low Power OQPSK (only active during synchronization)
\n
\n    Input sensitivity
\n        1.5 mV / Pa
\n
\n    Adjustment Range Transmitter
\n        0 to -30 dB, adjustable in 10 dB steps
\n
\n    Audio adjustment range
\n        45 dB, adjustable in 5-dB steps
\n
\n    Line / Mic level
\n        20 dB, switchable
\n
\n    Temperature Range
\n        operation: 0°C to +40°C, storage: –20°C to +70°C
\n
\n    Receiver Principle
\n        double superheterodyne
\n
\n    Diversity principle
\n        Antenna switching diversity via internal antennas
\n
