• Seetronic SAC3MPA PowerCon Chassis Input
  • Seetronic SAC3MPA PowerCon Chassis Input
1 3

Seetronic

Seetronic SAC3MPA PowerCon Chassis Input

Seetronic SAC3MPA PowerCon Chassis Input

$25.00 TTD
$0.00 TTD $25.00 TTD
Sale Sold out
Taxes included. Shipping calculated at checkout.

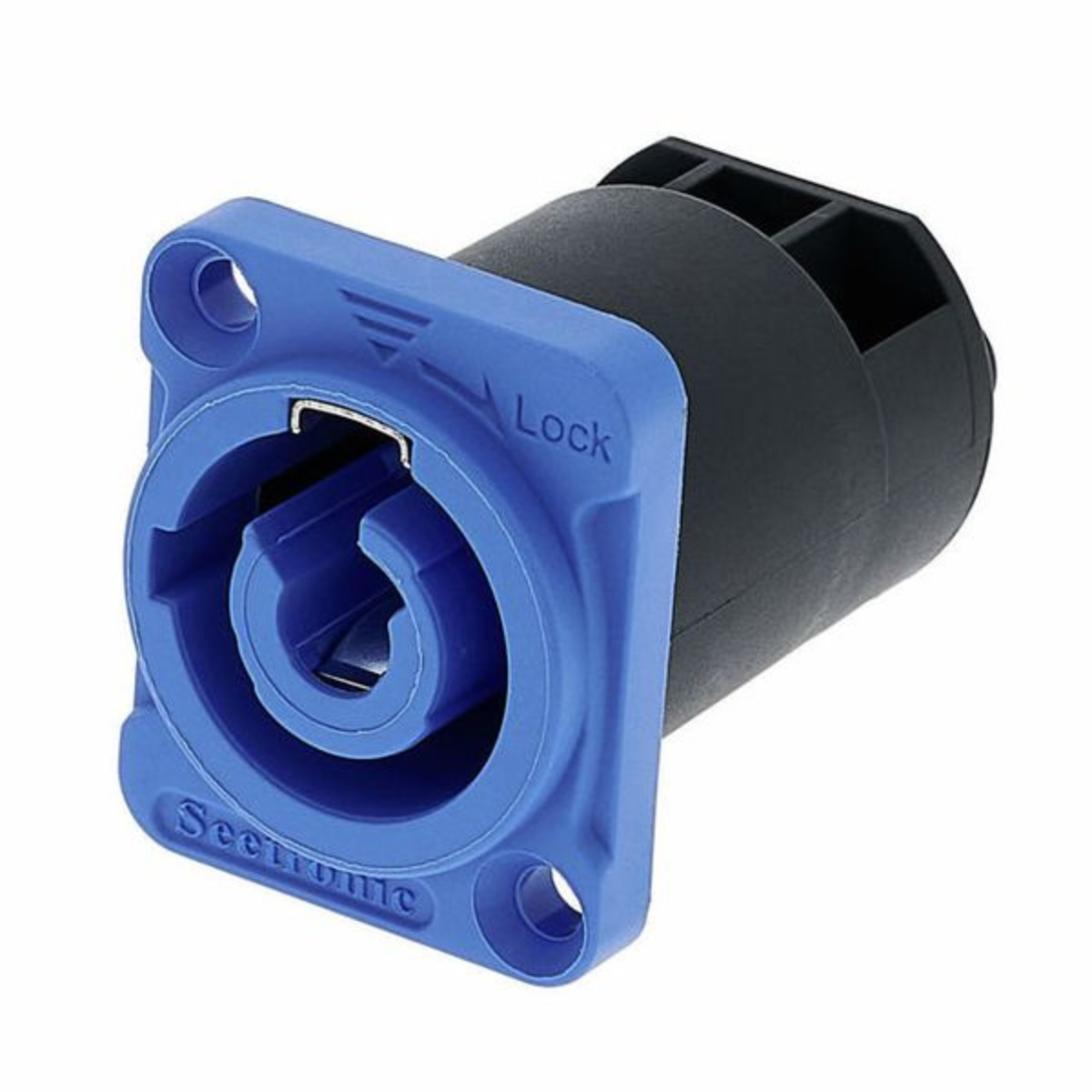

The Seetronic SAC3MPA is a rugged, panel-mounted AC power-in chassis connector widely used in professional audio, video, and stage lighting equipment. Identifiable by its distinct blue color coding, it serves as a secure, lockable connection point for bringing main power into a device.
\n\n
\n\n
Core Features
\n\n
    \n
  • Secure Twist-Lock Mechanism: Designed with a reliable quick-locking system to prevent accidental disconnects during live events or heavy vibration.
    • \n
  • Industry Compatible: Fully matches the layout, keying, and functionality of standard industry powerCON-style blue input connectors.
    • \n
  • Robust Construction: Features a durable, flame-retardant polyamide shell with bronze silver-plated contacts for optimal conductivity and longevity.
    • \n \n
\n\n
\n\n
Technical Performance
\n\n
    \n
  • Electrical Capacity: Safely handles up to 20A at 250V AC (or up to 300V AC under UL standards), making it ideal for high-draw equipment.
    • \n
  • 3-Pole Design: Includes dedicated terminals for Line, Neutral, and a leading ground contact that ensures the chassis is safely grounded before the live lines engage.
    • \n
  • Installation: Standard D-size housing designed to drop directly into a 24 mm panel cut-out, featuring 3/16\" flat-tab terminals for quick-connect or soldered internal wiring.
    • \n \n
\n\n

\n
