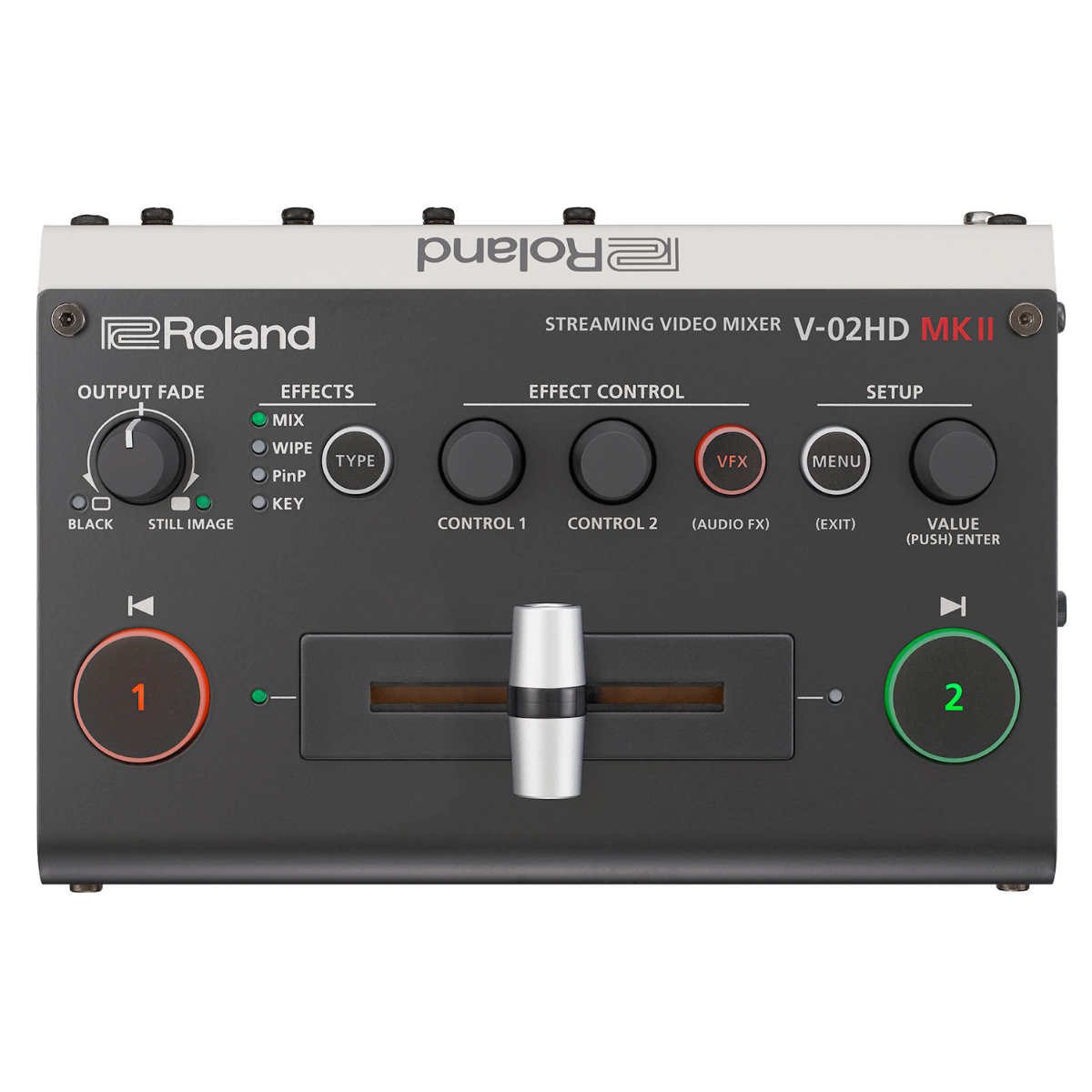

Roland V-02HD MKII Multi-Format Video Mixer with Streaming

Looking for a professional and easy-to-use video mixer to enhance your livestreams? Check out the Roland V-02HD MK II Streaming Video Mixer, available at CET, a leading audio-video retail store with decades of knowledge and expertise in Trinidad, South Caribbean.

With the Roland V-02HD MK II, you can easily connect and switch two high-quality HDMI cameras and stream directly to your favorite platforms over USB-C. This compact and affordable device also allows you to mix in audio sources via dedicated inputs and HDMI, apply video effects and transitions, and more.

The V-02HD MK II is the world’s easiest two-camera livestreaming solution, with an intuitive layout, large controls, and T-bar fader that make it incredibly simple to operate, even if you have no broadcasting experience. Just plug in up to two sources via HDMI, including cameras, computers, mobile devices, and gaming consoles, connect the USB-C output to your computer, and launch your streaming software to start streaming to Facebook, YouTube, Twitch, Zoom, OBS Studio, StreamYard, and Restream.

The V-02HD MK II supports high-quality streaming up to 1080p/60 FPS, and you can send two additional feeds to external HDMI devices via the Program Out and Preview Out if needed. Plus, with the V-02HD MK II, you can say goodbye to computer driver conflicts, crashes, and other reliability issues that come with multiple USB webcams and HDMI-to-USB encoder adaptors.

Upgrade your livestreams with HDMI cameras that support clean HDMI output, better lenses, and zoom capabilities to frame your perfect shot. The V-02HD MK II allows you to connect a variety of different camera types, and you can also upgrade your sound with the 10-channel digital audio mixer that includes two audio inputs with 3.5 mm jacks, support for microphones and stereo audio from smartphones, mixers, or other devices, and embedded stereo audio from your HDMI sources.

If you give demonstrations or perform in your livestreams, you can switch with your feet using up to two optional BOSS footswitches that allow you to direct your stream without interrupting your presentation. You can also access full mixing functions for all audio sources, add studio polish with compressor, EQ, and reverb, and have fun with formant shifting and robot sounds with the unique voice changer effect.

Creating scenes and adding video effects has never been easier with the dedicated hardware solution of the V-02HD MK II. Via the preview monitor and apps, you can set up picture-in-picture windows, create titles and lower thirds, composite scenes, and much more. Plus, the dedicated V-02HD MK II Remote app turns an iPad into an efficient touch interface for the V-02HD MK II, allowing you to run essential switching functions, mix audio with virtual faders, change settings and effect parameters quickly, and create up to eight custom scenes for seamless setup changes.

Upgrade your livestreams with the Roland V-02HD MK II Streaming Video Mixer, available now at CET, your go-to audio-video retail store in Trinidad, South Caribbean. And don't forget that purchasing the V-02HD MK II also provides free access to Roland’s AeroCaster Switcher for iPad, a powerful solution to cleanly expand your camera setup without the hassle of extra cables.



Specifications:



Video

Video Processing

    4:4:4 (Y/Pb/Pr), 10-bit

Input Connectors

    INPUT 1--2: HDMI type A x 2

    * HDCP Supported

    * Multi-format Supported

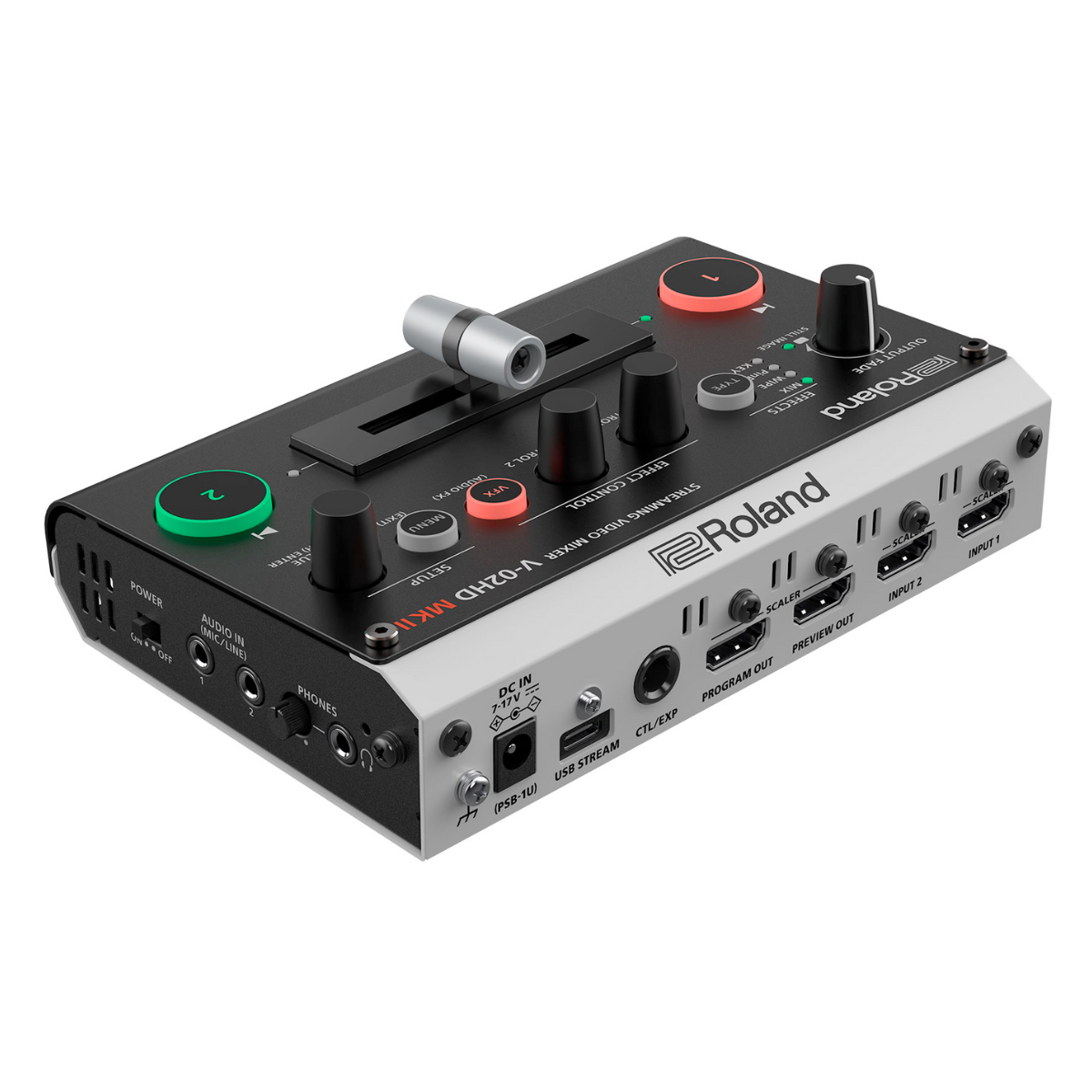

Output Connectors

    PROGRAM OUT: HDMI type A

    PREVIEW OUT: HDMI type A

    * HDCP Supported

    * Multi-format Supported



    USB STREAM:USB Type-C (TM)

Input Formats

    480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1

    576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2

    1080/23.98p, 1080/24p

    VGA (640 x 480/60Hz), SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz)

    WXGA (1280 x 800/60Hz), SXGA (1280 x 1024/60Hz)

    FWXGA (1366 x 768/60Hz), SXGA+ (1400 x 1050/60Hz)

    UXGA (1600 x 1200/60Hz), WUXGA (1920 x 1200/60Hz)

    * The refresh rate is the maximum value of each resolution.

    * Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.

    * 1920 x 1200/60 Hz: Reduced blanking

    * The input interlaced video signal is converted to progressive video signal by internal processing.

    *1 FRAME RATE = 59.94 Hz

    *2 FRAME RATE = 50 Hz

Output Formats

    PROGRAM OUT, PREVIEW OUT:

    480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/29.97p *1

    576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2

    SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)

    WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)

    SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)

    UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)

    HD (1280 x 720/60 Hz), FHD (1920 x 1080/60 Hz)

    * Conforms to VESA DMT Version 1.0 Revision 11.

    * The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit's frame rate setting is 50 Hz.

    * 1920 x 1200/60 Hz: Reduced blanking

    *1 FRAME RATE = 59.94 Hz

    *2 FRAME RATE = 50 Hz



    USB STREAM:

    1080/60p, 720/60p, 640 x 480/60p *1

    1080/59.94p, 720/59.94p, 640 x 480/59.94p *2

    1080/29.97p, 720/29.97p, 640 x 480/29.97p *3

    1080/50p, 720/50p, 640 x 480/50p *4

    1080/25p, 720/25p､640 x 480/25p *5

    *Uncompressed format (YUY2) and Compressed format (Motion JPEG) supported.

    *1 FRAME RATE(USB OUT) = 60 Hz

    *2 FRAME RATE(USB OUT) = 59.94 Hz

    *3 FRAME RATE(USB OUT) = 29.97 Hz

    *4 FRAME RATE(USB OUT) = 50 Hz

    *5 FRAME RATE(USB OUT) = 25 Hz

Video Effects

    Transition: CUT, MIX (DISSOLVE), WIPE (9 types)

    Composition: PinP (RECTANGLE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)

    Visual Effects (14 types): MOSAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FIND EDGES, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET

    Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output

Audio

Audio Processing

    Sampling rate: 24 bits/48 kHz

Audio formats

    Linear PCM, 24 bits/48 kHz, 2ch

Input Connectors

    Analog:

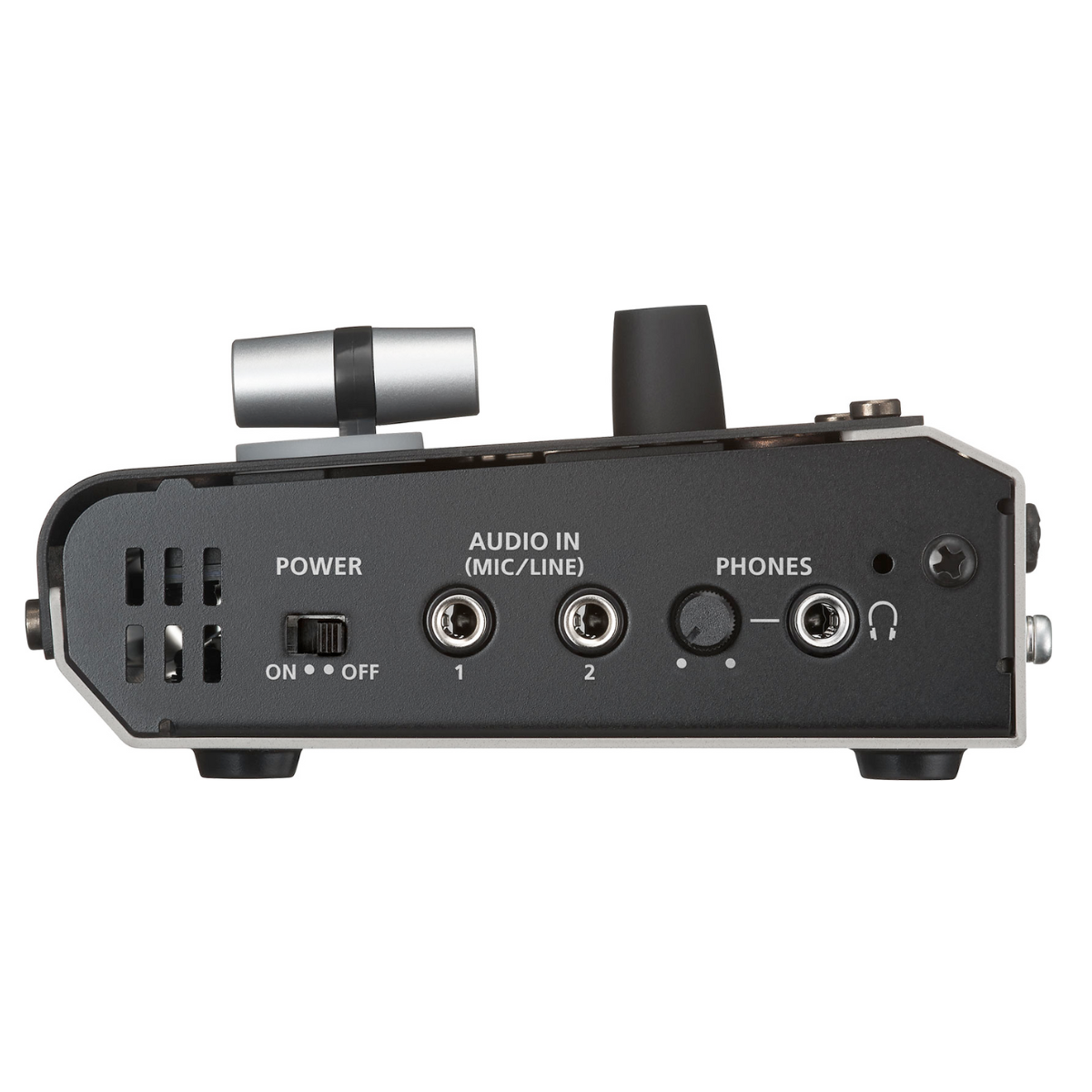

    AUDIO IN 1--2: Stereo miniature type x 2, plug-in power supported



    Digital:

    USB STREAM: USB Type-C (™)

    INPUT 1--2: HDMI Type A x 2

Output Connectors

    Analog:

    PHONES: Stereo miniature type



    Digital:

    USB STREAM: USB Type-C (TM)

    PROGRAM OUT: HDMI type A

    PREVIEW OUT: HDMI type A

Input Level

    AUDIO IN: -10 dBu (Maximum: +10 dBu)

Input Impedance

    AUDIO IN: 10 k ohms

Output Level

    PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance

    PHONES: 10 ohms

Audio Effects

    Delay, Reverb, High pass filter, Noise gate, De-esser, Compressor, Equalizer, Voice changer

    Multi-band compressor, Limiter, Test tone output

Others

Other Connectors

    USB STREAM: USB Type-C (TM) (for backup from PC, for remote control from PC and iPad)

    CTL/EXP:1/4-inch TRS phone type (for remote control from foot switch and expression pedal)

Other Functions

    Preset Memory (8 types)

    Panel lock function

    EDID Emulator

    Auto Switching

    Auto Input Detect

Power Supply

    AC Adaptor

Current Draw

    1.4 A

Power Consumption

    12.6 W

Operation Temperature

    +0 to +40 degrees Celsius

    +32 to +104 degrees Fahrenheit

Dimensions

    160 (W) x 108 (D) x 51 (H) mm

    6-5/16 (W) x 4-1/4 (D) x 2-1/16 (H) inches

Weight (excluding AC adaptor)

    0.6 kg

    1 lbs 6 oz

Accessories

    Startup Guide

    AC adaptor

    Power cord

    Cord hook

Options (sold separately)

    Footswitch: BOSS FS-5U, FS-6, FS-7

    Expression Pedal: EV-5, BOSS FV-500L, FV-500H

* 0 dBu=0.775 Vrms
