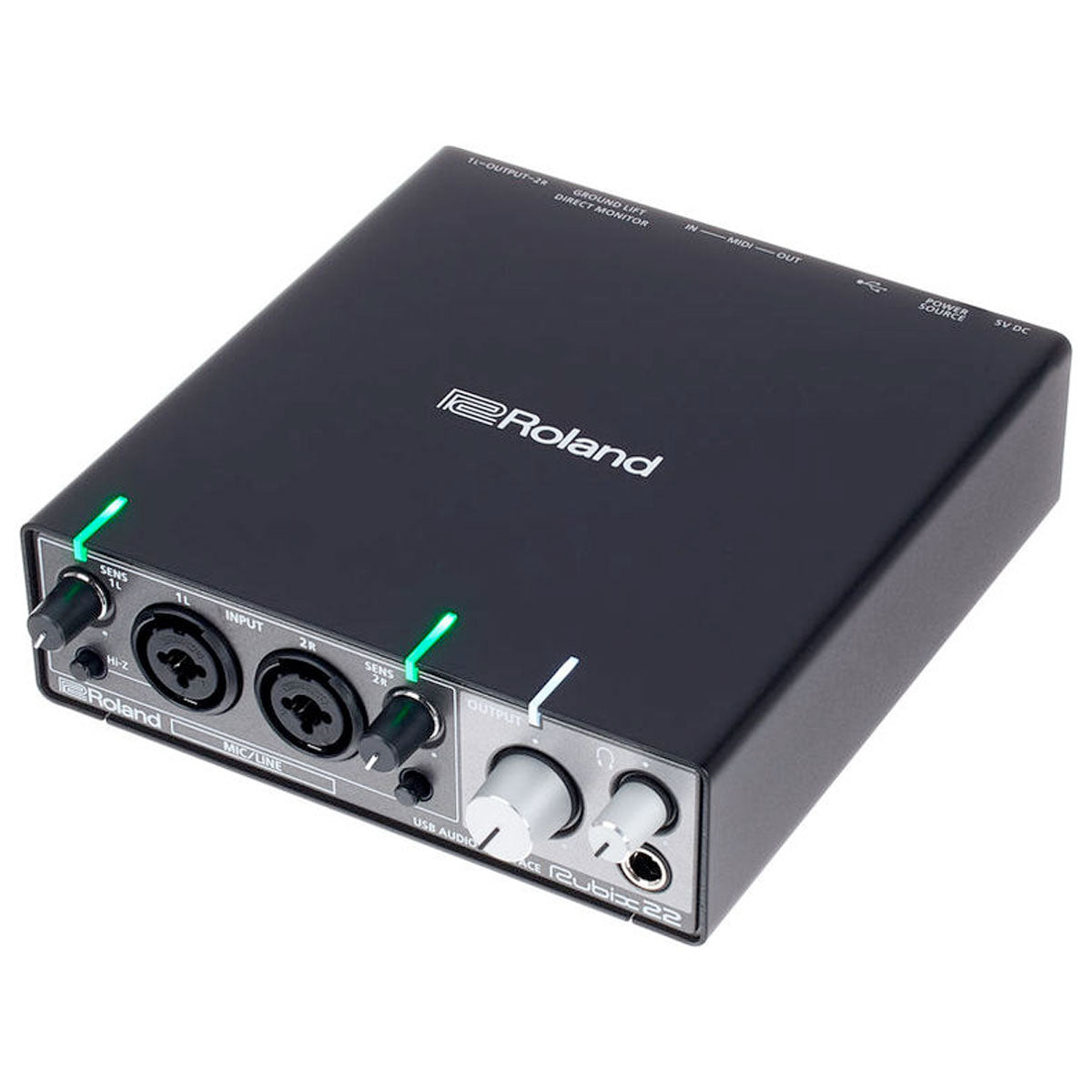

Roland Rubix22 2x2 USB Audio Interface
2-In/2-Out, High-Resolution Interface For Mac, Pc And Ipad
Rubix22 offers a perfect balance of high-fidelity sound, solid build quality, compact size, affordability, and crucial features for today's musicians and producers. With support for high-resolution audio up to 24-bit/192kHz, Rubix22 sounds clear and defined and is carefully engineered to have extremely low noise from input to output. Its near universal USB support means it works seamlessly with Mac and PC computers, and even supports iPads, for the ultimate in portable music production and performance.
Combine your Rubix audio interface with a Roland Cloud Pro membership and take your productions to a whole new level. Roland Cloud includes the mobile-ready Zenbeats music creation app and serves up a treasure trove of authentic Roland instruments with over 20,000 inspiring sounds. Register Your Rubix Audio Interface and join Roland Cloud for free.
- 2-in/2-out USB audio interface
- 2 low-noise mic preamps with XLR combo jacks
- Hi-Z input for guitar and other high impedance sources
- MIDI In/Out ports Extensively shielded, low-noise design
- Sturdy and compact metal construction
- Low latency, class compliant drivers
- FREE 6-months of Roland Cloud Pro membership
Rubix22 is ultra-portable and ultra-flexible. It has low-latency class compliant drivers for Mac and PC, so it's simple to get up and running with smooth, reliable audio performance. And it also supports iPad giving you an extremely compact system for on-location recording, on-the-go production, or live performance. It even includes six months of Roland Cloud Pro membership when you register your Rubix with Roland. Giving you access to authentic Roland instruments, Zenbeats music creation app and over 20,000 inspiring sounds – ready to take your productions to the next level.
Rubix22’s dual microphone preamps are designed for low noise and high definition. They sound clean and transparent with plenty of headroom for capturing all the impact and detail of whatever you’re recording. And the flexible combo jacks mean you can easily connect a wide variety of sources without the need for adapters or special cables.
Specs:
Number of Audio Record/Playback Channels
Record: 2 channels
Playback: 2 channels
Signal Processing
PC interface: 24 bits
AD/DA conversion: 24 bits
Sampling Frequency
AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
Interface
Hi-Speed USB
MIDI IN, OUT
Connectors
INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
PHONES jack: Stereo 1/4-inch phone type
OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced)
MIDI (IN, OUT) connectors
USB port: USB Type B
DC 5V port: USB Type micro B
*1 Current value per channel.
*2 INPUT 1L supports high impedance
Controllers
SENS 1L, 2R knobs
Hi-Z switch
48V switch
OUTPUT knob
PHONES knob
POWER SOURCE switch
DIRECT MONITOR switch
GROUND LIFT switch
Indicator
Level indicators (1L, 2R)
POWER indicator
Hi-Z indicator
48V indicator
Characteristics
Nominal Input Level
INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu
Maximum Input Level
INPUT (1L, 2R) connectors (XLR type): +2 dBu
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu
Nominal Output Level
OUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced)
Maximum Output Level
OUTPUT (1L, 2R) jacks: +8 dBu (impedance balanced)
PHONES Maximum Output Power
20 mW + 20 mW (L + R, 47 ohms load)
Headroom
14 dB
Input Impedance
INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater
*3 When the Hi-Z is turned on
Output Impedance
OUTPUT (1L, 2R) jacks: 2 k ohms (balanced)
PHONES jack: 47 ohms
Residual Noise Level
INPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)
Dynamic Range
AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
DA block OUTPUT (1L, 2R) jacks: 109 dB typ.
Other
Power Supply
Supplied from the computer via USB, DC 5V
Current Draw
500 mA
Operating System
Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10
Apple Mac OS X 10.10 or later
Apple iOS 9 or later
* Although Roland has tested numerous configurations, and has determined that on average, a computer system similar to that described above will permit normal operation of the Rubix, Roland cannot guarantee that a given computer can be used satisfactorily with the Rubix based solely on the fact that it meets the above requirements. This is because there are too many other variables that may influence the processing environment, including differences in motherboard design and the particular combination of other devices involved.
Dimensions
145 (W) x 165 (D) x 46 (H) mm
5-3/4 (W) x 6-1/2 (D) x 1-13/16 (H) inches
Weight (main unit only)
1.0 kg
2 lbs 4 oz
Accessories
Setup Guide
Leaflet "USING THE UNIT SAFELY"
USB cable
* 0 dBu = 0.775 Vrms
