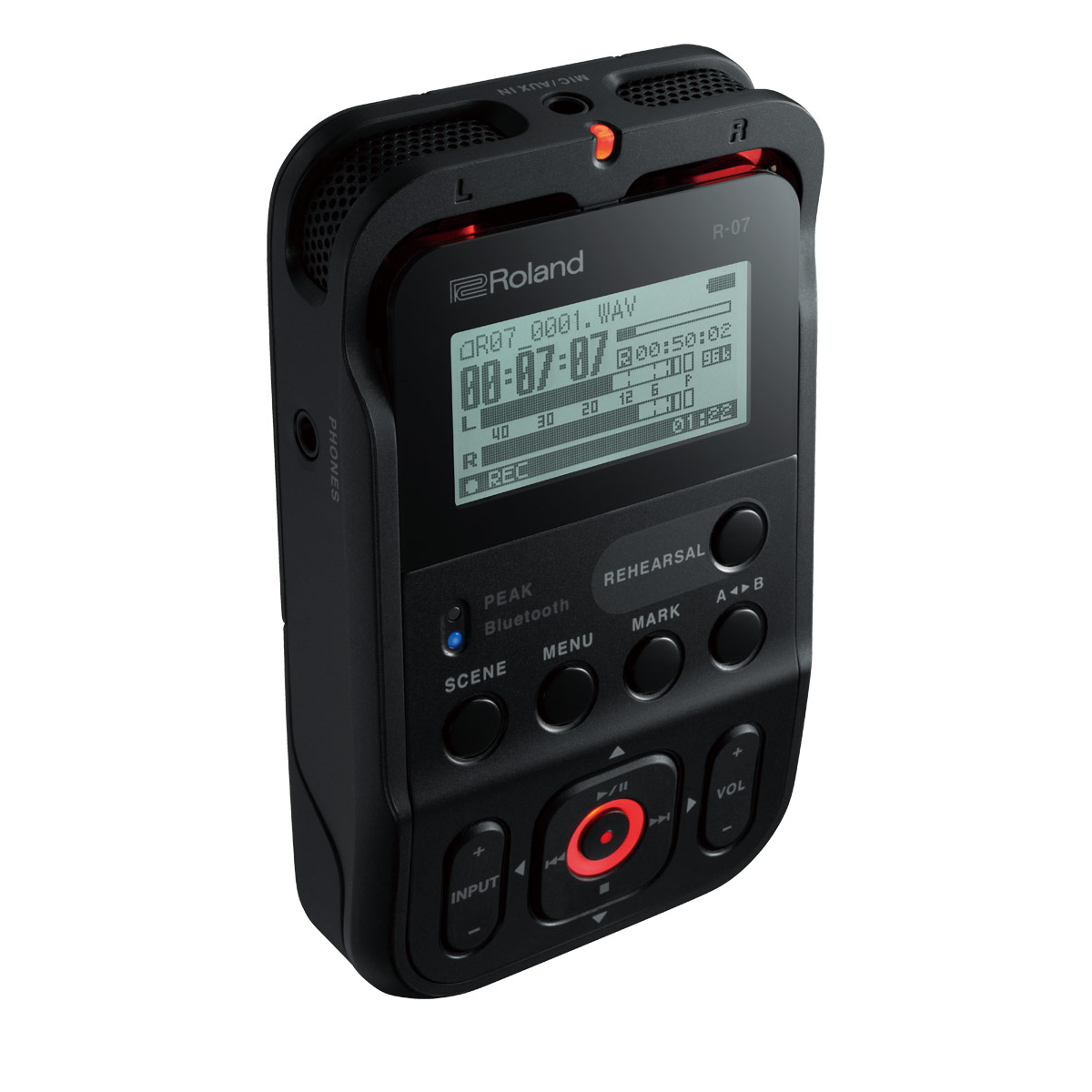

Roland R-07-BK, Portable Audio Recorder

Quantity

The R-07 packs vital recording features into a stylish and ultra-portable device that goes anywhere life takes you. Using Bluetooth remote control, you can place the R-07 in the prime recording location while you monitor and control it from your smartphone and Apple Watch. You can even listen to your recordings wirelessly. Preset recording templates, or Scene Memory, allow you to easily dial in optimal settings for any situation. With Dual Recording mode, the R-07 automatically captures a safety copy of your recording so you’ll never miss those once-in-a-lifetime moments. Capture high-resolution audio easily and confidently with Roland’s R-07.

Bluetooth remote control with smartphone and smartwatch

Wireless headphone and speaker playback

One-touch Scene function for instant setup in any recording scenario

WAV support: 44.1/48/88.2/96 kHz, 16/24-bit

MP3 support: 64/96/128/160/192/224/320 kbps

Recorder Part
Tracks: 2 (stereo)

4 (stereo x2) * WAV x 2 recording mode only
Signal Processing: AD/DA conversion: 24 bits, 44.1/48/88.2/96 kHz
Data Type: [For Recording] * Stereo only

WAVE:

Sampling Rate: 44.1/48/88.2/96 kHz

Bit Depth: 16/24 bits

MP3 (MPEG-1 Audio Layer 3):

Sampling Rate: 44.1/48 kHz

Bit Rates: 64/96/128/160/192/224/320 kbps

WAVE + MP3:

Sampling Rate: 44.1/48 kHz

Bit Depth: 16 bits

Bit Rates: 128 kbps

WAVE x 2:

Sampling Rate: 44.1/48 kHz

Bit Depth: 16/24 bits

[For Playback]

WAVE:

Sampling Rate: 32/44.1/48/88.2/96 kHz

Bit Depth: 16/24 bits

MP3 (MPEG-1 Audio Layer 3):

Sampling Rate: 32/44.1/48 kHz

Bit Rates: 32--320 kbps or VBR (Variable Bit Rate)
Memory Card: microSD Card

SDHC format compatible
Input/Output
Audio Inputs: Internal Stereo Microphone

MIC/AUX IN (Stereo miniature phone type, plug-in powered mic)

*The Internal Mic and the MIC/AUX IN can't be used at the same time; only the MIC/AUX IN is effective.
Audio Output: Phones (Stereo miniature phone type)

Internal Speaker for playback (monaural)

*The Internal Speaker and the Phones can't be used at the same time; only the Phones is effective.
Nominal Input Level (Variable): MIC/AUX IN: -31 dBu (Default input level)

* 0 dBu = 0.775 Vrms
Input Impedance: MIC/AUX IN: 4.5 k ohms
Output Level: 3 mW + 3 mW (In case 16 ohms load)
Recommended Load Impedance: 16 ohms or greater
Frequency Response: 20 Hz – 40 kHz (+-3 dB)
USB Interface: USB port: USB Micro-B type

Supports USB 2.0/1.1 mass storage device class

Supports USB audio class 1.0 (44.1 kHz or 48 kHz, *R-07 system program Ver. 1.100 or later)
Bluetooth
Bluetooth: R-07 Remote: Bluetooth technology: Bluetooth Ver 4.0

Transmitting Power: Specification Power Class 2 (Line of sight range 10 m (30 ft))

Profile Support: A2DP, AVRCP

CODEC Support: SBC, Qualcomm aptX Qualcomm aptX low latency
Effects
Effects: Playback only. Excludes playback in 88.2 kHz or 96 kHz.

Reverb and Speed Change can't be used at the same time.
Reverb: 4 types (Hall1, Hall2, Room, Plate)
Speed Change: 50 – 150 % of playback speed
Other
Display: Graphic LCD 128 x 64 dots (white backlit)
Power Supply: Alkaline battery (AA, LR6) x 2,

or Rechargeable Ni-MH battery (AA, HR6) x 2,

or Supplied from the computer via USB
Operating System (USB Audio Class 1.0): Windows 7, Windows 8.1, Windows 10

OS X 10.10, OS X 10.11, macOS 10.12, macOS 10.13, macOS 10.14

iOS 11, iOS 12
Current Draw: 350 mA (MAX)
Duration of continuous use with Alkaline battery operation: Playback: Approximately 15 hours

Recording: Approximately 15 hours

* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.
Accessories: Leaflet “Read Me First”

Owner’s manual

microSD card (inserted in the R-07)

Batteries (two AA)
Options: Windscreen: R07-WS

Microphone Stand Adaptor: OP-MSA1

Binaural Microphones / Earphones: CS-10EM
Size and Weight
Width: 61 mm

2-7/16 inches
Depth: 103 mm

4-1/16 inches
Height: 26 mm

1-1/16 inches
Weight (including batteries): 150 g

6 oz
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Roland is under license.
Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries, used with permission.

All specificattions and appearance are subject to change without notice.
