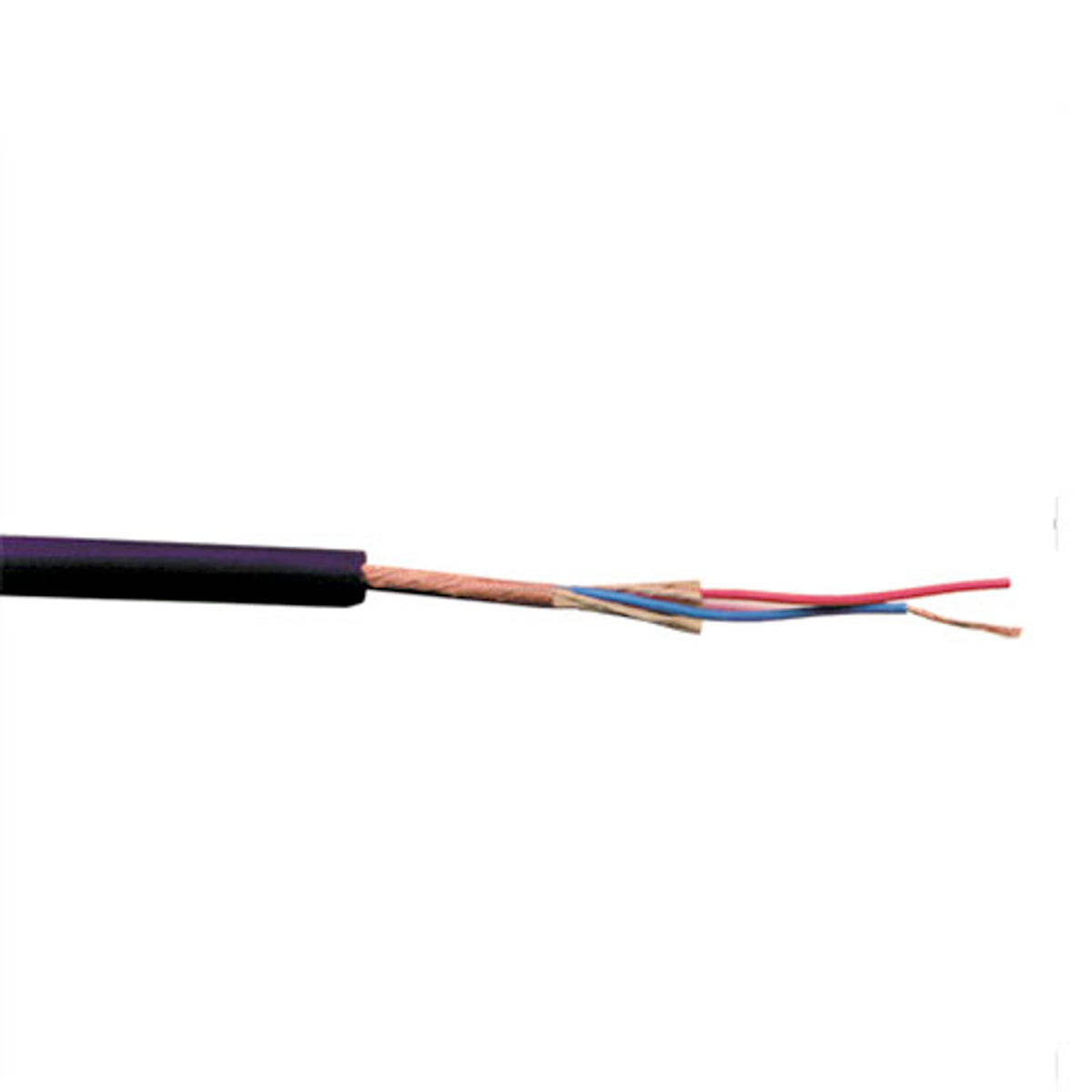

RapcoHorizon MIC1.K 24 AWG Microphone Cable (per ft.)

Description: 2 conductors 24 AWG stranded bare copper, polypropylene insulated,
\noverall serve shielded, PVC jacketed microphone cable
\nVTG Part Number: MIC1
\n1. Conductor
\n1.1 AWG Size and Stranding: 24 AWG 16 strands 36 AWG
\n1.2 Material: Bare annealed copper
\n2. Insulation
\n2.1 Material: Polypropylene
\n2.2 Wall Thickness: .013\" nominal
\n2.3 Diameter: .050\" +/- .002\"
\n3. Color Code
\n3.1 Code: Blue paired with red
\n4. Assembly
\n4.1 Lay Length: 1 3/4\" maximum left hand
\n4.2 Fillers: Jute as required
\n5. Shield
\n5.1 Material: Bare annealed copper serve
\n5.2 Coverage: 95% nominal
\n6. Jacket
\n6.1 Material: Matte finish polyvinyl chloride, color as specified
\n6.2 Colors: Black, blue, green, purple, red white, and neon blue, green, orange,
\npink and yellow
\n6.3 Wall Thickness: .055\" nominal
\n6.4 Diameter: .230 +/- .005\"
\n7. Markings
\n7.1 Type: Surface printing in white ink(blue on white jacket)
\n7.2 Legend: VTG AUDIO LOW NOISE – BALANCED MICROPHONE
\nCABLE, MADE IN USA
\nVTG AUDIO NEON BRITES BALANCED CABLE MADE IN USA
\n8. Electrical Specifications
\n8.1 Capacitance Between Conductors: 21 pF/ft @ 1 kHz
\n8.2 Capacitance Conductor to Shield: 37 pF/ft @ 1 kHz
\n8.3 Characteristic Impedance: 70 ohms @ 1 MHz
\n8.4 Resistance at 20C: 23 ohms/1000 ft.
\nDr. No.: 0712A-01
\nBy: TRM
\nDate: 09/02/97
