QSC ISA-280 Commercial Power Amplifier
QSC ISA-280 Commercial Power Amplifier
Couldn't load pickup availability

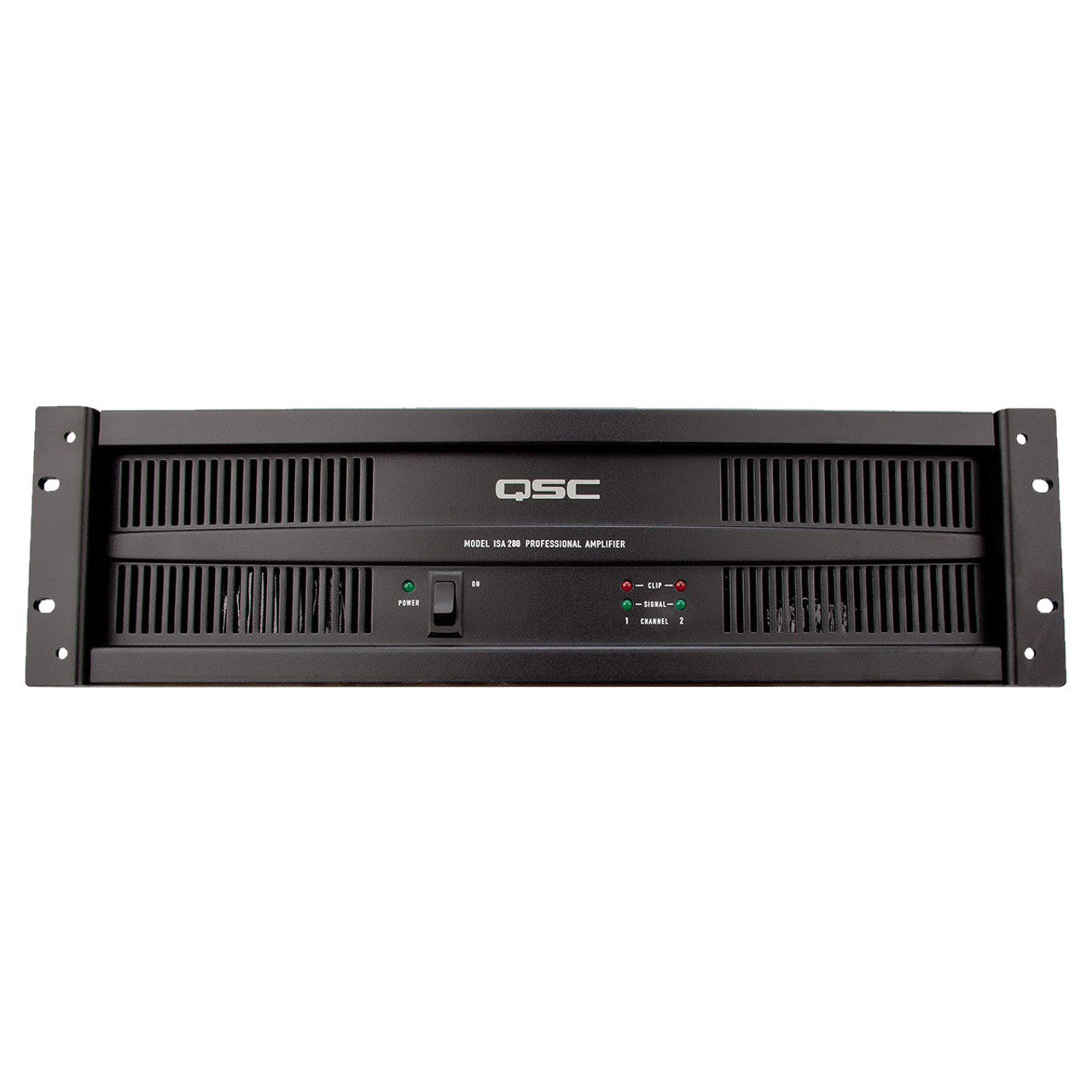

The ISA-280 Commercial Power Amplifier from QSC is a 3-RU rackmount power amplifier designed specifically for sound contractors. It can be used as a low-impedance solution rated for 2-Ohm operation at 430W per side, or 8-Ohm operation at 185W per side. The versatile loading options, feature set, and protection circuitry, in addition to the built-in HD-15 DataPort V2 DSP interface capability, ensures a high-value, cost-effective solution for budget-minded installations.
The ISA-280 is housed in a rugged all-metal chassis that features rear-panel gain controls for tamper-resistant operation and 2 dB detents for quick and repeatable settings. The inputs include both XLR and detachable Euro-style connectors, and the outputs feature covered barrier-strip connectors for full safety agency compliance.
- Rear panel gain controls for tamper resistance; 2-dB detents allow for quick and repeatable settings.
- XLR and detachable Euro-style input connectors
- DataPort V2 for use with DPV2-compatible signal processing accessories (XC-3, SF-3, LF-3) and DSP-3/DSP-4 (with external power supply)
- Independent defeatable clip limiters for reduced distortion
- Selectable high-pass filters (30 Hz or 70 Hz) protect speakers and prevent speaker transformer saturation with minimal effect on program material
- Front panel LED indicators include power, signal, and clip
- Covered barrier strip output connectors for safety agency compliance
- Automatic on-demand variable-speed fan: quiet normal operation, with maximum cooling when needed
- Rear-to-front air flow helps keep equipment racks cool
- Stereo, bridge, or parallel operating modes
- Comprehensive protection circuitry including DC, infrasonic, thermal overload, and short circuit protection
- 3-year warranty plus optional 3-year extended service contract
