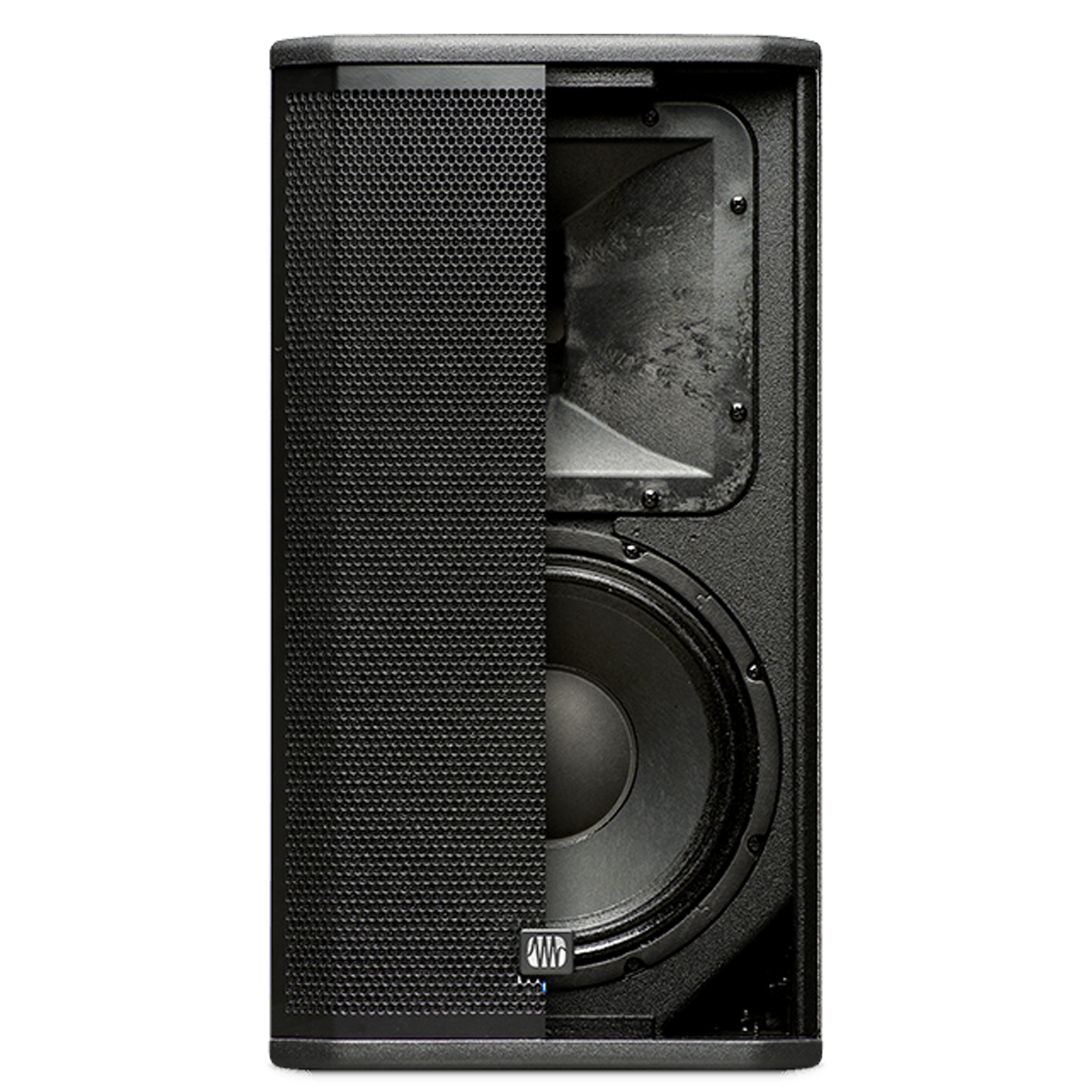

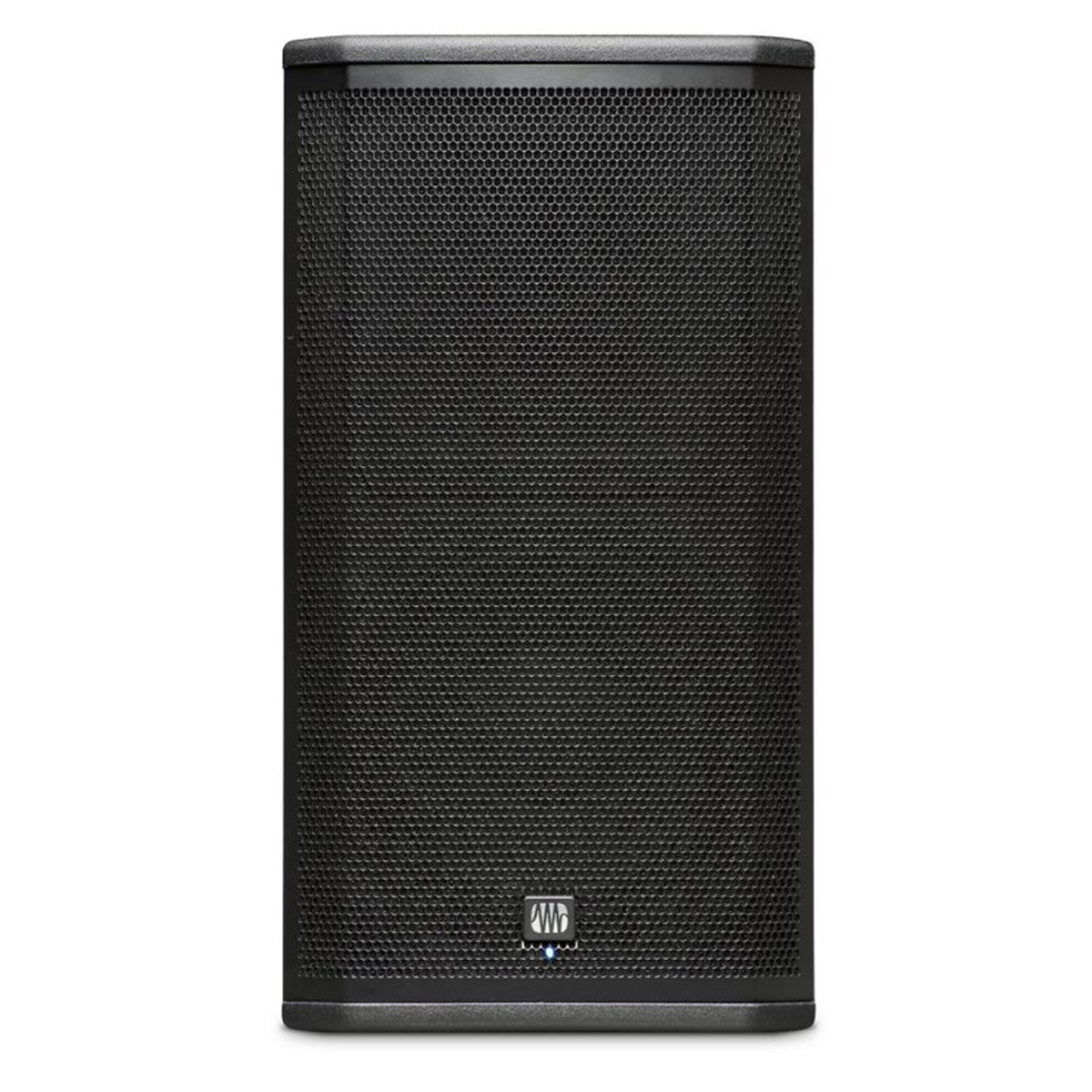

\nPreSonus® ULT10 active loudspeakers combine the widest horizontal dispersion of any loudspeaker in their class with a focused vertical dispersion for an ultra-long throw. The result is even coverage throughout the space, enabling the audience to hear clearly wherever they are. Featuring PreSonus’ proprietary Pivot X110 horn, a custom 10-inch low-frequency driver, and plenty of biamped Class D power in a lightweight design with the performance characteristics that only wood can offer, ULT10 loudspeakers deliver first-rate speech intelligibility and natural music reproduction. This makes them a great choice for both mobile use and permanent installations. \n \n
\n
\n \n
\n
\n
Acoustic Performance
\n
\n
\n
\n
Configuration
\n
2-way biamped
\n
\n
\n
Frequency Response (-3 dB)
\n
60 Hz – 18 kHz
\n
\n
\n
Frequency Response (-10 dB)
\n
55 Hz – 20 kHz
\n
\n
\n
Nominal Coverage (-6 dB)
\n
110° x 50°
\n
\n
\n
Maximum Peak SPL
\n
130 dB
\n
\n
\n
Crossover Frequency
\n
1.6 kHz
\n
\n \n
\n\n
\n \n
\n
\n
Transducer
\n
\n
\n
\n
LF Transducer
\n
1x10\" Ferrite
\n
\n
\n
Voice Coil Diameter
\n
2.5”
\n
\n
\n
HF Transducer
\n
1.75\" compression driver
\n
\n \n
\n\n
\n \n
\n
\n
Amplifier
\n
\n
\n
\n
Type
\n
Class D
\n
\n
\n
Total Power Output
\n
1,300W Peak (650 RMS)
\n
\n
\n
LF Power
\n
1,000W Peak (500W RMS)
\n
\n
\n
HF Power
\n
300W Peak (150W RMS)
\n
\n
\n
Cooling
\n
Free air convection
\n
\n
\n
Rated THD
\n
<0.05% (20 Hz - 20 kHz)
\n
\n
\n
Dynamic Range
\n
119 dB (A-weighted)
\n
\n
\n
Bandwidth
\n
20 Hz - 20 kHz
\n
\n \n
\n\n
\n \n
\n
\n
Connections and Controls
\n
\n
\n
\n
Input Channels
\n
1 mic/line, 1 line
\n
\n
\n
Input Connector Types
\n
2 combo
\n
\n
\n
Mic Input Impedance
\n
1 kΩ
\n
\n
\n
Line Input Impedance
\n
10 kΩ
\n
\n
\n
Maximum Input
\n
+22 dBu
\n
\n
\n
Output Connector
\n
2 XLR (M): Mix out, Direct out
\n
\n
\n
Controls
\n
Mic/Line Level \n Line/Level \n Preset Select \n HPF On/Off \n Front LED On/Off
\n
\n
\n
Indicators
\n
DSP Preset, HPF On/Off, Front LED On/Off, Signal, Clip, Thermal
\n
\n \n
\n
\n\n
\n
\n \n
\n
\n
DSP
\n
\n
\n
\n
Presets
\n
FOH, MON, DJ
\n
\n
\n
Polarity
\n
—
\n
\n
\n
HPF
\n
100 Hz, 4th-order Linkwitz-Riley
\n
\n
\n
Bit Depth
\n
24-bit
\n
\n
\n
Sample Rate
\n
96 kHz
\n
\n \n
\n\n
\n \n
\n
\n
Enclosure
\n
\n
\n
\n
Material
\n
Eucalyptus Plywood
\n
\n
\n
Finish
\n
Chemline™ polyurethane
\n
\n
\n
Grille
\n
Powder-coated steel
\n
\n
\n
Dimensions (HxDxW)
\n
22” x 13.2” x 11.9” (559 mm x 335 mm x 302 mm)
\n
\n
\n
Unit Weight
\n
44 lbs. (19.96 kg)
\n
\n
\n
Handles
\n
2 (Top and Side)
\n
\n
\n
Monitor Angle
\n
30°
\n
\n \n
\n\n
\n \n
\n
\n
Safety
\n
\n
\n
\n
Amplifier Protection
\n
Over-current, DC, over/under-voltage, over-temperature, high frequency
