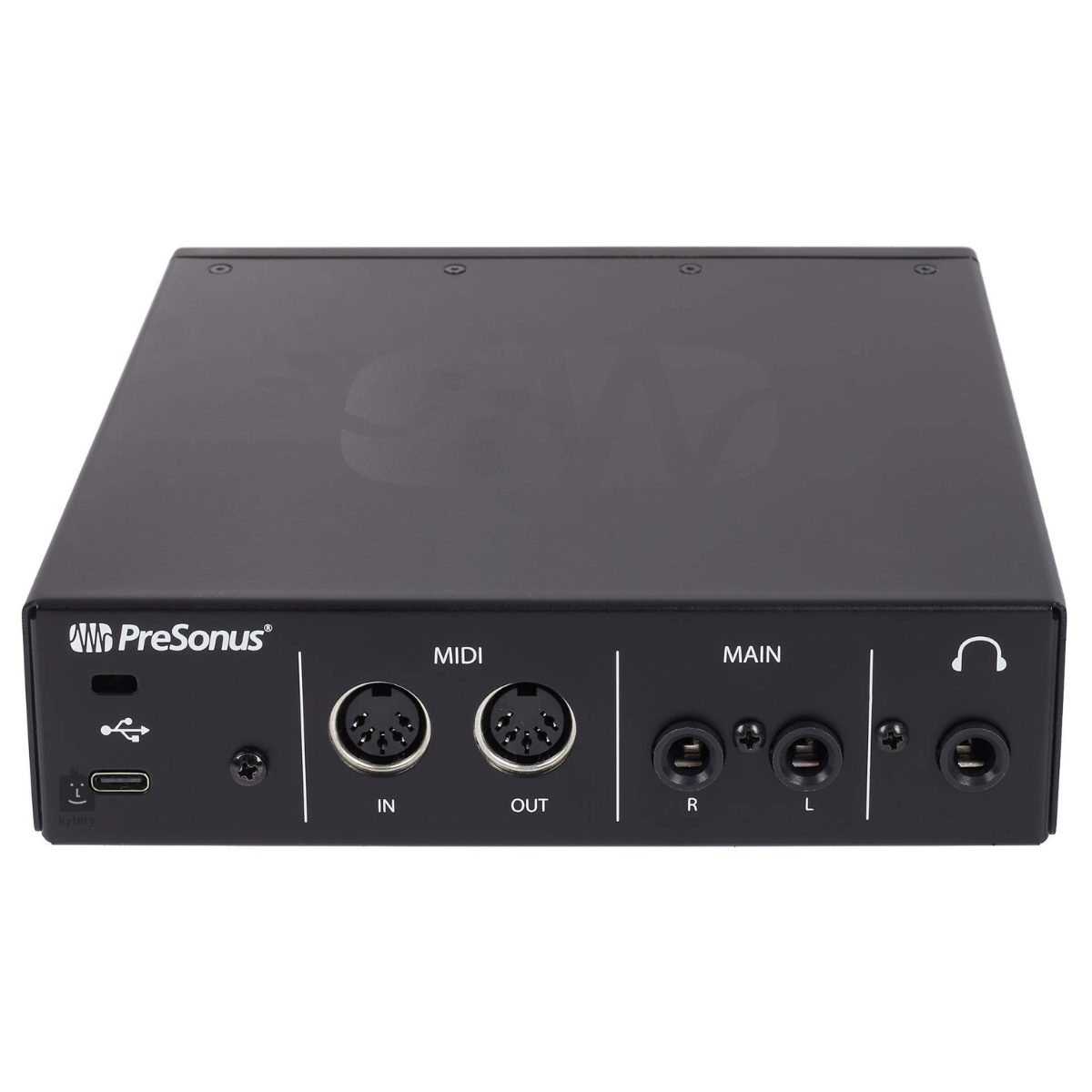

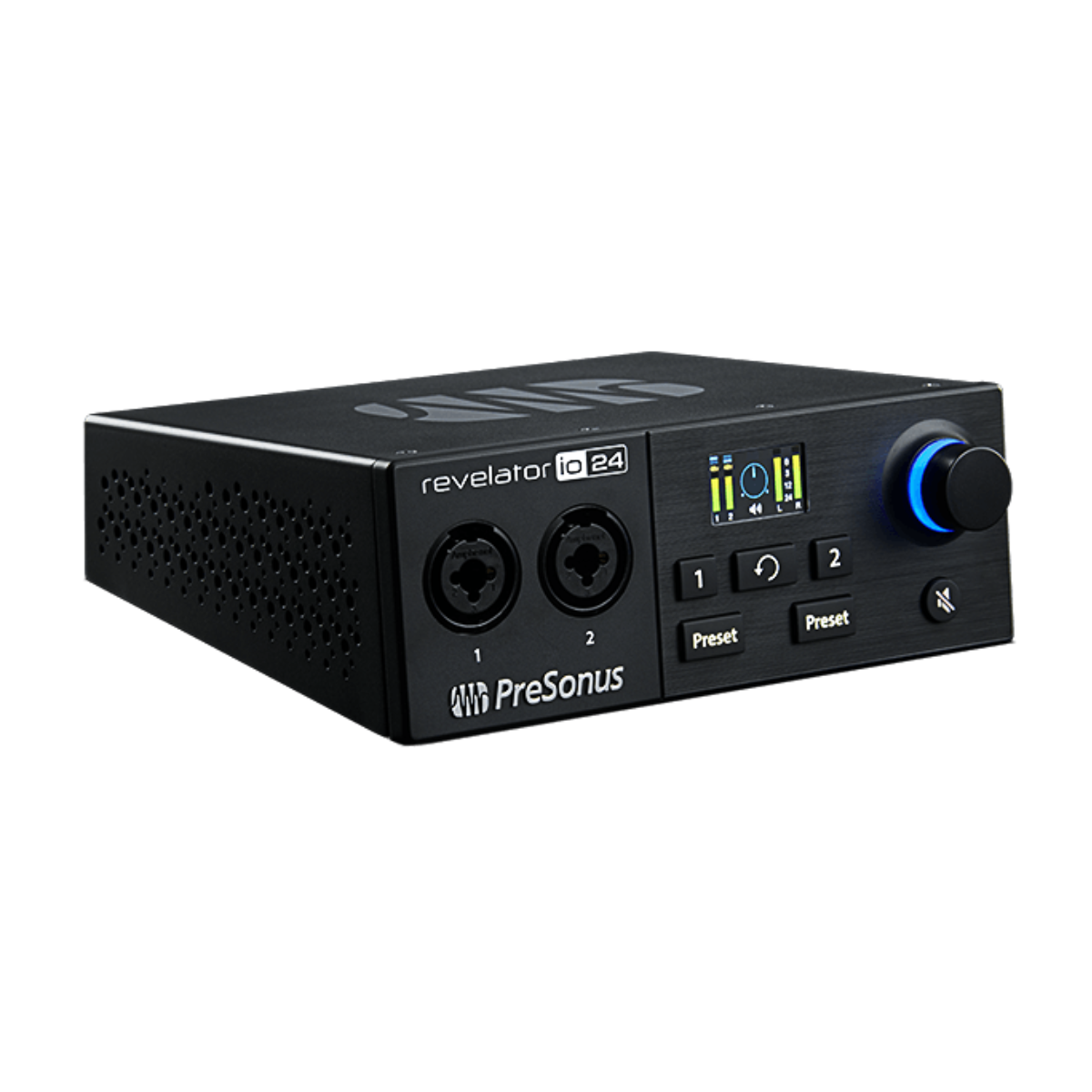

PreSonus Revelator io24 USB-C Audio Interface

PreSonus Revelator io24 USB-C Audio Interface

PreSonus Revelator io24 USB-C Audio Interface

PreSonus Revelator io24: Elevate Your Recording and Streaming Experience

Introducing the PreSonus Revelator io24, the audio interface designed to redefine your recording and streaming capabilities. This flexible and versatile device seamlessly combines professional-grade recording features with powerful streaming capabilities, making it the ultimate tool for content creators, podcasters, and musicians.

Key Features:

  1. XMAX-L Mic Preamps:

    • Equipped with 2 XMAX-L mic preamps with +48V phantom power for top-tier XLR microphones.

    • Ensures crystal-clear sound reproduction for professional-grade recordings.

  2. Versatile Loopback Streams:

    • 2 stereo loopback streams allow seamless mixing of audio from Zoom, Skype, backing tracks, and more.

    • Intuitive loopback mixer for quick and easy incorporation of additional audio elements.

  3. Professional Presets:

    • Professionally-crafted presets for instant pro-level sound at the touch of a button.

    • Design, save, and share your own custom presets for a personalized touch.

  4. Stream Mix Mode:

    • Engage Stream Mix mode for a hassle-free stereo mix.

    • Complete DSP mix, including analog inputs, loopback channels, reverb, and effects, patched to the USB stream for direct integration with streaming software.

  5. Software Bundle:

    • Over $1000 worth of software included: Studio One Artist, Ableton Live Lite, and the Studio Magic Suite.

    • Empower your creativity with industry-leading tools for recording, producing, and polishing your content.

Seamless Integration:

  • Add Revelator power and flexibility to any XLR microphone.

  • Perfect for recording podcasts, streaming live performances, and enhancing your YouTube videos.

Stream with Ease:

  • Quickly record Zoom calls for your podcast or add backing tracks to your live stream performance effortlessly.

  • No complex routing or extra hardware required.

Built to 'Cast:

  • Revelator io24 is tailor-made for content creators seeking a professional edge in both recording and streaming.

System Requirements:

  • Compatible with a range of computer systems to ensure broad accessibility.

Elevate your content creation game with the PreSonus Revelator io24 – where power, flexibility, and simplicity converge. Capture, stream, and create with confidence, backed by cutting-edge technology and a suite of premium software.

  • Voltage

    USB Bus Powered

  • Inputs

    Two - 2 x XLR/TRS Line Combo

  • Line Out

    Two - 1/4" Balanced (Left and Right)


  • Connection Type

    USB-C Cable

  • MIDI I/O

    Dual 5-Pin Female DIN

Microphone Preamp

  • Total Harmonic Distortion

    0.009% (1 kHz, -1 dBFS, Minimum Gain)

  • Gain Control Range

    60 dB (± 1 dB)

  • Microphone Preamp Maximum Input Level

    +10 dBu (±0.5 dBu, Minimum Gain)

  • Phantom Power

    +48 VDC (10 mA Total)

  • Frequency Response

    20 Hz - 20 kHz (+0.1dB/-0.3 dB, Unity Gain, Unweighted)

  • Microphone Preamp Input Impedance

    1.4 kΩ

  • Equivalent Input Noise

    -126 dBu (A-Weighted, 150Ω, Maximum Gain)

Main and Line Outputs

  • Main And Line Outputs Maximum Level

    +10 dBu (1 kHz, Unity Gain, Z-Balanced)

  • Main And Line Outputs Frequency Response

    20 Hz - 20 kHz (+0.1dB/-0.3 dB, Unity Gain, Unweighted)

  • Main And Line Outputs Total Harmonic Distortion

    0.003% (1 kHz, -1 dBFS, Unity Gain)

Headphone Outputs

  • Headphone Outputs Maximum Output

    40 mW/Channel at 56Ω

  • Frequency Response

    20 Hz to 20 kHz, +0.5/-1.5 dB

  • Total Harmonic Distortion

    0.01% (1 kHz, 0 dBFS, Loaded)

  • Headphone Outputs Impedance Working Range

    32Ω to 300Ω

Digital Audio

  • Digital Audio Dynamic Range

    105 dB

  • Digital Audio Bit Depth

    24 Bit

  • Supported Sample Rates

    44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
