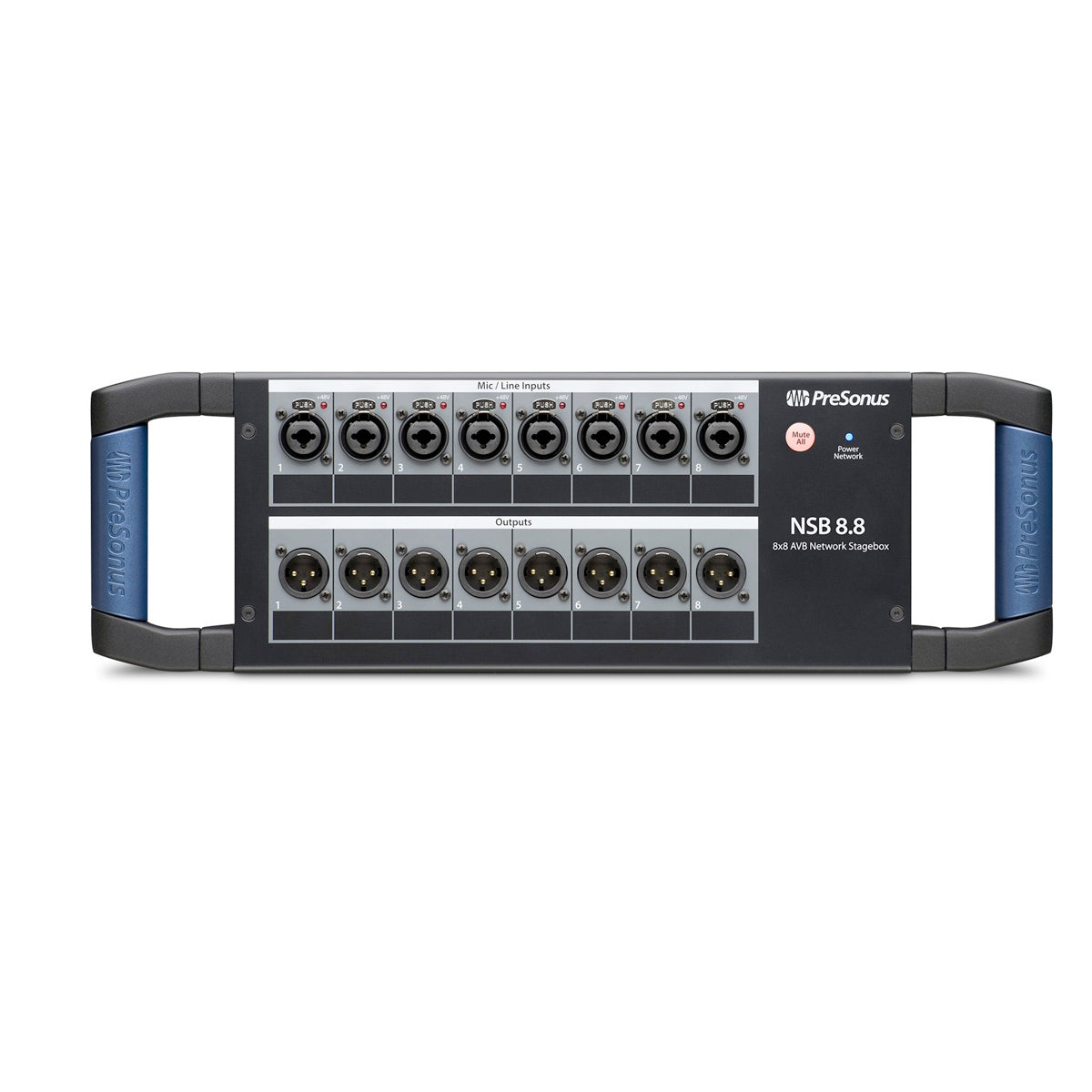

PreSonus NSB 8.8 - 8 x 8 AVB-Networked Stage Box

$4,500.00

Quantity

Inputs and outputs wherever you need them.

The PreSonus® NSB 8.8 networked stage box lets you put your analog I/O for your StudioLive® Series III digital mixer wherever you need it. Equipped with eight digitally controlled XMAX mic preamps, eight balanced line level inputs and eight analog outputs, the NSB 8.8 integrates seamlessly into StudioLive Series III digital mixers with a single Ethernet connection. Remote control input trims, phantom power, and more directly from your StudioLive Series III console or from UC Surface remote mixing software on your tablet or laptop.

Powerful connectivity that’s designed to be shared.

The NSB 8.8 networked stage box is loaded with eight versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼” TRS inputs to connect your line level devices—the NSB 8.8 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets individual gain control without affecting the front-of-house mix.

Rugged stage box, flexible installation.

PreSonus built the NSB 8.8 inside a rugged steel chassis with sturdy handles designed to survive the rigors of the most demanding tours. The NSB 8.8 is also install-friendly: Just remove the handles and attach the optional rackmount kit, and your NSB 8.8 can be racked in your studio or backstage. For permanent installations, the NSB 8.8 is also compatible with stage pockets from Ace Backstage.

Microphone Preamplifier
Input Type	XLR Female, balanced
Frequency Response to Main Output (at unity gain)	20-20 kHz, ±0.5 dBu
Input Impedance	1 kΩ
THD to Main Output	<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)	94 dB
Common Mode Rejection Ratio (1 kHz at unity gain)	65 dB
Gain Control Range (±1 dB)	0 dB to +60 dB
Maximum Input Level (unity gain)	+12 dBu
Phantom Power (±2 VDC)	48 VDC, switchable per channel

Line Inputs
Type	¼” TRS Female, balanced
Frequency Response to Main Output (at unity gain)	20-20 kHz, ±0.5 dBu
Input Impedance	10 kΩ
THD to Main Output	<0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd)	94 dB
Maximum Input Level	+18 dBu

XLR Outputs
Type	XLR Male, balanced
Maximum Output Level	+24 dBu, ±0.5 dBu
Output Impedance	100Ω

Digital Audio
ADC Dynamic Range	115 dB (A-wtd, 48 kHz)
DAC Dynamic Range	115 dB (A-wtd, 48 kHz)
AVB Audio Network Ports	Locking XLR Ethernet
Sampling Rate	48 kHz, 44.1 kHz

Power
Connector	Locking IEC
Input-Voltage Range	90 to 230 VAC (±10%)

Physical
Height	5.2” (132 mm)
Width	16.7” (424 mm)
Depth	4.5” (114 mm)
Weight	5.4 lbs. (2.4 kg)
