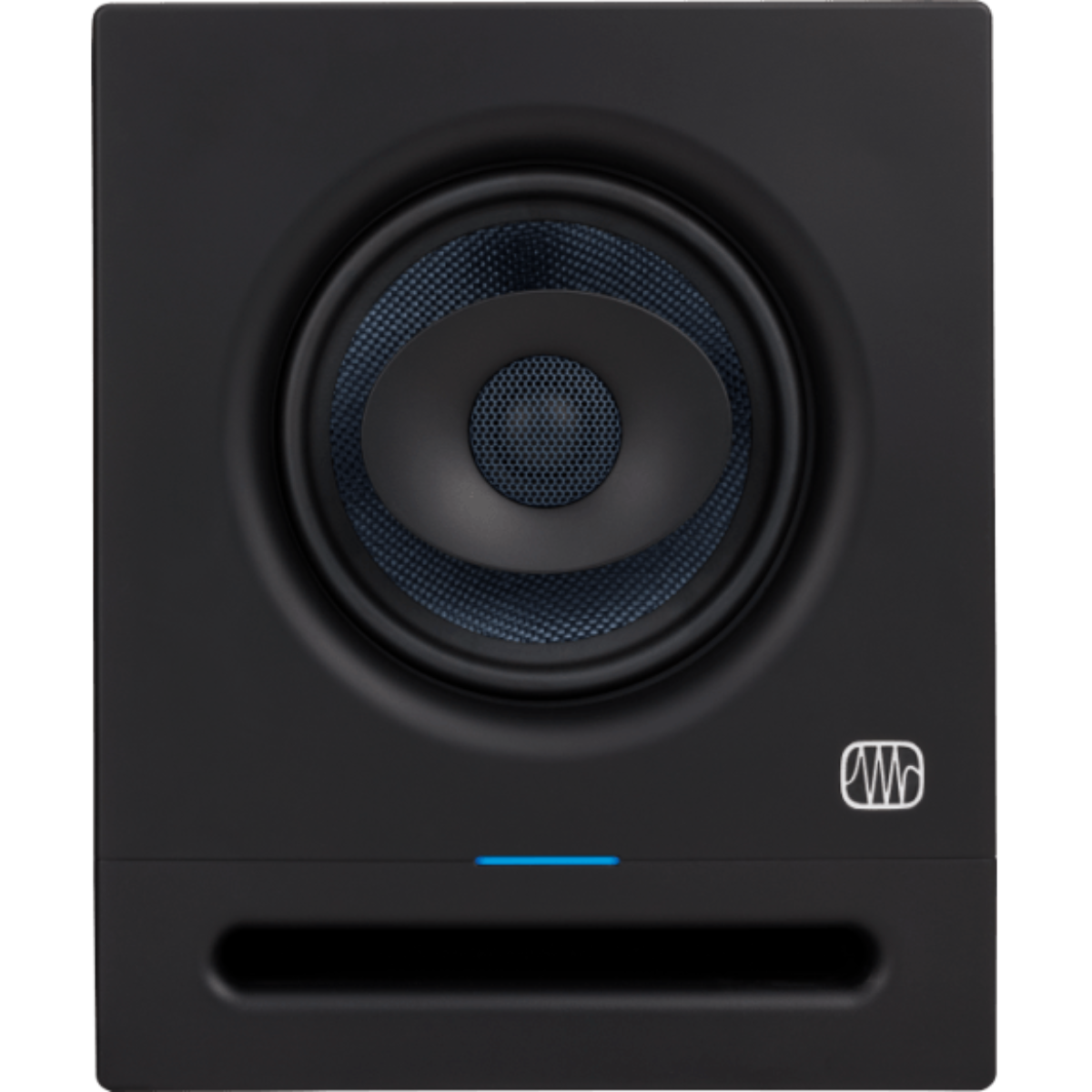

PreSonus Eris Pro 6 Coaxial Reference Monitor (single)

The Eris® Pro 6 is a high-performance, 2-way biamped active coaxial studio monitor, engineered for superior sound reproduction and precision in both professional and home studio environments. With a 6.5-inch coaxial design, these monitors are designed to deliver a lifelike and immersive listening experience, making them particularly well-suited for Dolby Atmos rooms and stereo mix environments.

- Coaxial Design for Precise Audio: The Eris Pro 6 features a coaxial design that places the high-frequency driver in the center of the low-frequency driver. This design ensures a single acoustic point source, resulting in superior phase alignment between components, wide stereo imaging, and a three-dimensional soundstage. This setup is ideal for revealing subtle details in your recordings and providing a natural, lifelike listening experience.

- Powerful and Clear Sound: The monitor includes a 1.25-inch ultra-low mass silk-dome tweeter for accurate transient reproduction and a 6.5-inch woven-composite woofer that delivers tight, punchy bass. With 140 watts of power and a ported enclosure, the Eris Pro 6 can reach an impressive low-frequency response down to 35 Hz, ensuring clear, powerful bass without distortion.

- Advanced Acoustic Tuning: The Eris Pro 6 is equipped with acoustic tuning controls, including Low Cut, Mid, and High controls, as well as a 3-way Acoustic Space tuning. These features allow you to fine-tune the monitor’s frequency response to suit your specific room acoustics, compensating for speaker placement near walls or in corners to achieve the flattest response possible.

- Flexible Connectivity and Mounting: The monitor offers a range of input options, making it easy to connect to various line-level sources such as mixers, audio interfaces, and more. Additionally, provisions for wall and ceiling mounts enable seamless integration into any stereo or multi-channel system setup.

- Symmetrical Dispersion and Clarity: The coaxial design provides symmetrical dispersion, resulting in crisper stereo imaging, greater soundstage depth, and improved separation of components within complex mixes. This design enhances vocal clarity, the attack of percussion, and the presence of instruments, helping you achieve faster, more accurate mixes.

Summary:

The Eris® Pro 6 studio monitor offers inspired design for inspiring results, with its coaxial technology delivering precise and natural sound reproduction. Whether you're working in a professional Dolby Atmos studio or a home setup, the Eris Pro 6 is designed to help you achieve the best possible results in your audio productions.





More Features



    Single point-source coaxial design for wider sweet spot and better phase alignment

    6.5-inch, woven-composite, low-frequency driver

    1.25-inch, silk-dome, high-frequency driver

    140W, Class AB amplification

    35 Hz to 20 kHz frequency response

    106 dB SPL (Peak, @ 1 meter)

    Acoustic Tuning Controls: Acoustic Space (Flat, -2 dB, -4 dB), High Frequency (±6 dB, center 10 kHz, continuously variable), Mid Frequency (±6 dB, center 1 kHz, continuously variable), Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

    XLR and ¼-inch TRS balanced and RCA unbalanced rear-panel inputs

    Protection: RF interference, output-current limiting, over-temperature, turn-on/off transient, subsonic filter

    Power Saver mode (engages after 40 minutes)

    Wall and ceiling mountable



Specifications

Measurements



    Width

    9.45" (24 cm)

    Height

    11.4" (29 cm)

    Depth

    11.19" (28.4 cm)

    Weight

    17 lbs (7.7 kg)



Electronics



    Voltage Requirements

    100-240 VAC, 50-60 Hz

    Connection Type

    IEC



Hardware



    Cabinet Material

    Vinyl-Laminated, Medium-Density Fiberboard



Monitors



    Protections

    RF Interference

    Output-Current Limiting

    Over-Temperature

    Turn-On/Off Transient

    Subsonic Filter

    Audio Switches

    Acoustic Space (Flat, -2 dB, -4 dB)Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

    Audio Controls

    VolumeHigh Frequency (±6 dB, center 10 kHz, continuously variable)Mid Frequency (±6 dB, center 1 kHz, continuously variable)

    Peak SPL

    106 dB (at 1 Meter)

    Crossover Frequency

    3.2 kHz

    Monitor Inputs

    1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA

    HF Transducers

    1.25” Silk Dome Tweeter (Coaxial)

    LF Transducers

    6.5" Woven Glass Fiber Composite (Coaxial)

    Frequency Response

    35 Hz - 20 kHz

    Input Impedance

    10 kΩ

    Monitor Amplifier Power

    140W Bi-Amped



Specifications



    Input Impedance

    10 kΩ
