Total Dynamic Control

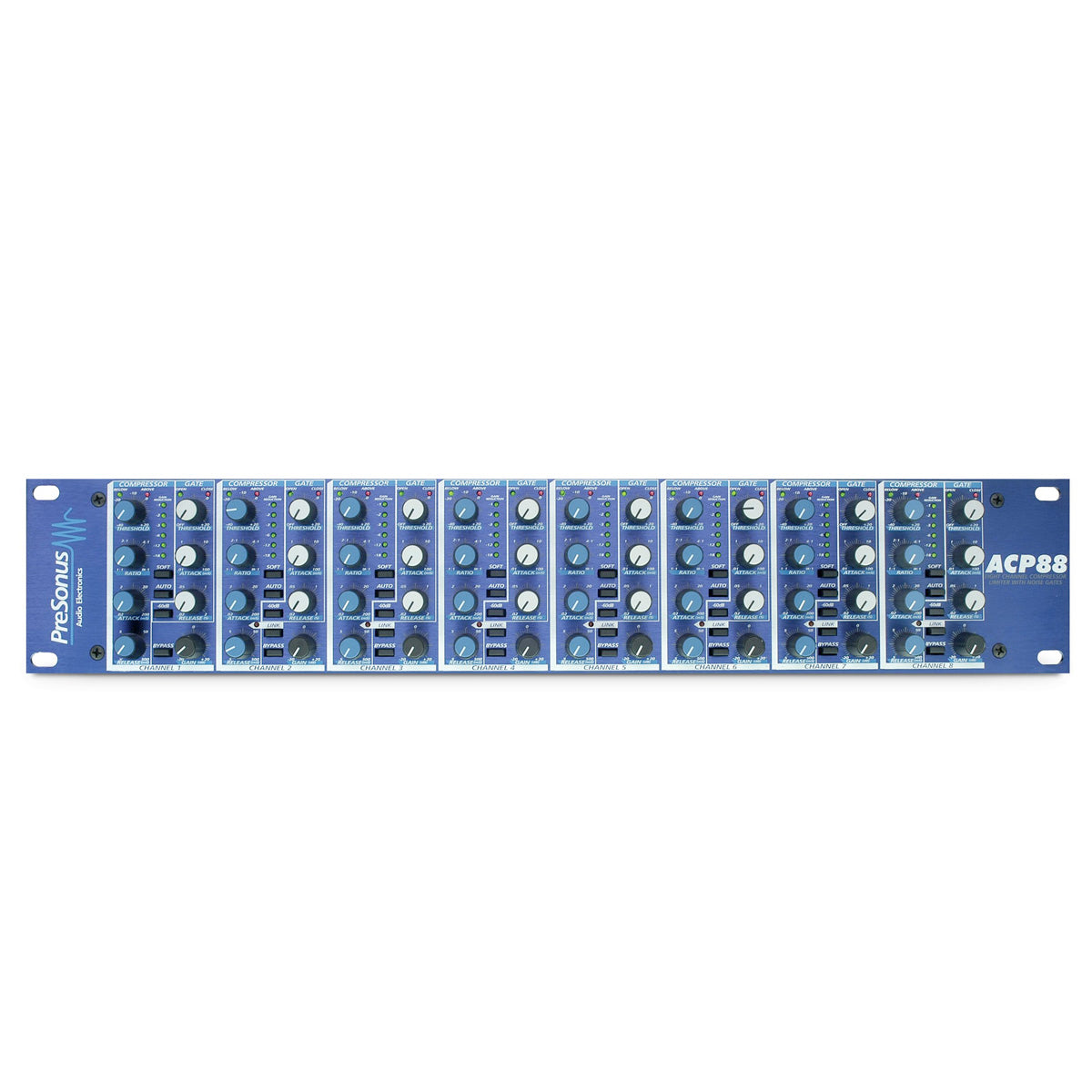

With eight independent analog compressor/limiters and gates, the two-Rackspace ACP88 solves a host of problems. Each channel has a fully variable compressor with a sidechain loop, soft/hard-knee compression, and an Auto Attack feature that applies preset attack and release curves. The full-featured gate includes a gate-range switch and a sidechain/key insert loop. Each channel can be bypassed.

The ACP88 gives you total dynamics control for multi-tracking and live sound reinforcement. Eight compressor/limiters deliver transparent dynamics control. Eight full-featured gates seamlessly control unwanted noise and bleed-through. Control vocals, tame drums, protect speakers, tighten the low-end – all from just two rack spaces of powerful processing.

• Eight Full Featured Compressor/Limiters


• Eight Full Featured Gates


• Side Chain on Every Channel


• Trigger Inputs on Every Channel


• Balanced/Unbalanced I/O


• Comprehensive Linking via Unique Power Summing Bus


• Takes the Place of Multiple Processors


• Crystal Clear Compression & Gating for Multi-Tracking & Live Sound


• Allows Spectral Processing & Gate Keying via Separate Jacks


• +4/-10 Stereo Operating Level


• Number of Channels: Eight


• Dynamic Range: >115dB


• Signal to Noise Ratio: >95dB


• Headroom:

  +24dBu, Unbalanced

  +18dBu, Balanced


• Frequency Response: 10Hz to 50kHz


• Crosstalk: <82dB @10kHz


• Compression Threshold Range: -40dBu to +20dBu


• Compression Ratio: 1:1 to 20:1


• Compressor Attack Time: 0.02ms to 200 ms


• Compressor Release Time: 0.5ms to 500ms


• Auto Attack and Release: Program Dependent


• Gate Threshold Range: -70dBu to +20dBu


• Gate Attack Time: 0.01ms to 100ms


• Gate Release Time: 0.02ms to 2 sec


• Gate Attenuation Range: -15dB or -60dB


• Input Impedance: 10k Ohms


• Output Impedance: 51 Ohms


• THD + Noise: <0.02%


• Output Gain: -20dB to +20dB


• Compression Curve Types: Hard and Soft Knee


• Compression Metering: Above/Below Threshold LED


• Gate Metering: Open and Closed LED


• Sidechain Output Impedance: 51 Ohms


• Sidechain Input Impedance: 10k Ohms


• Internal Operation Level: +4dBu=0dBu


• Input Range: +4dBu or -10dBu


• Input Connectors: 1/4" TRS, Balanced or Unbalanced


• Output Connectors: 1/4" TRS, Balanced or Unbalanced


• Compressor Sidechain Connector: 1/4" TRS


• Gate Sidechain Connector: 1/4" TRS


• Power Supply: Internal, Linear Supply


• Power Requirements: 100V AC to 120V AC or 200V AC to 240V AC


• Power Connection: IEC Receptacle


• Size: 2U Rack


• Dimensions: 19" x 3.5" x 7"


• Weight: 12lbs
