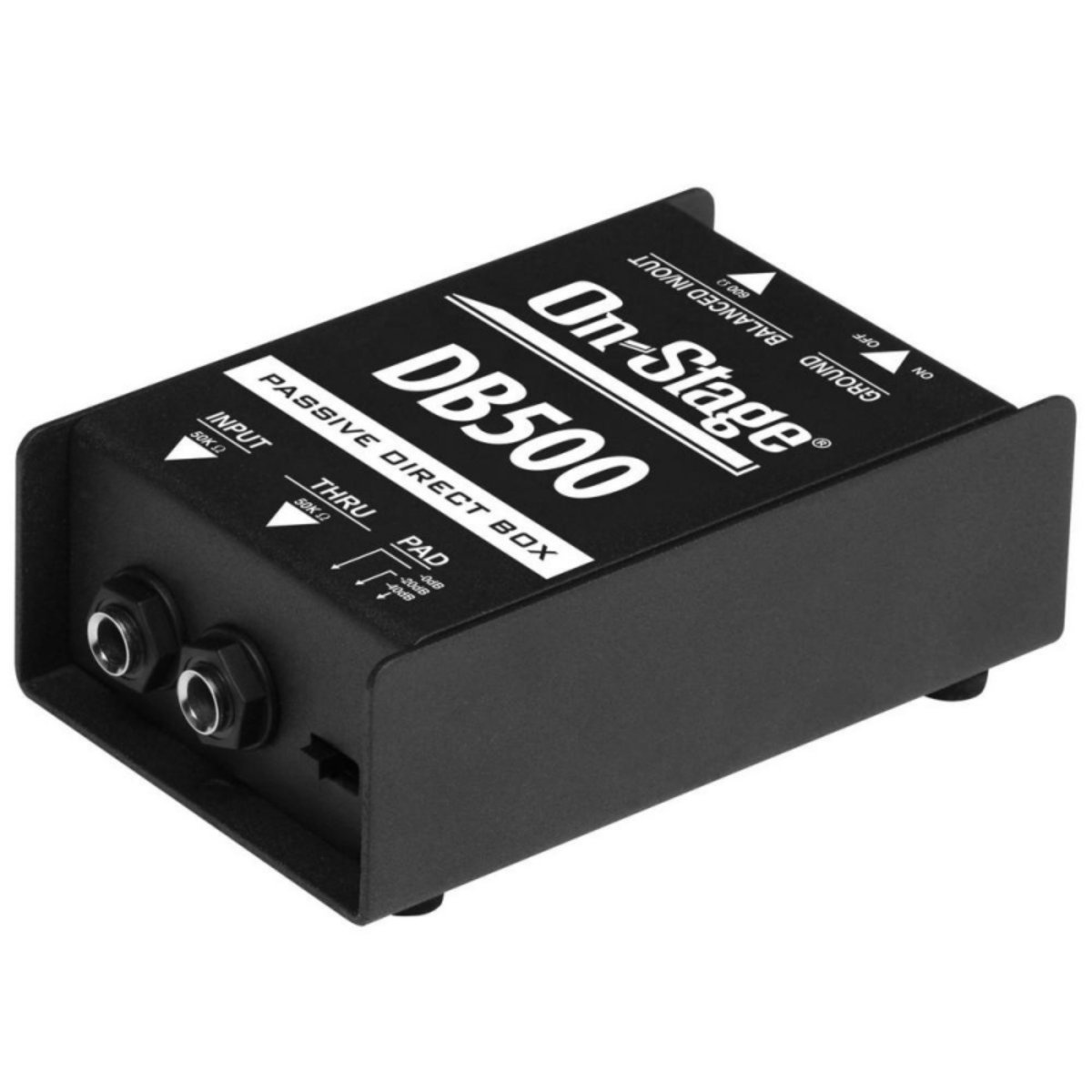

On-Stage DB500 Passive Direct Box
On-Stage DB500 Passive Direct Box
Regular price
$450.00 TTD
Regular price
Sale price
$450.00 TTD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
- Converts a high-impedance (1/4") input to a balanced, low-impedance (XLR) output
- Output signal can be sent via a long cable to a mixer or PA system without frequency loss
- Passive circuit does not require a power supply or batteries
- High-quality transformer for low distortion and an isolated signal path
Application Acoustic guitars, bass guitars, keyboards, and more
Inputs 1/4"
Output XLR
Power Passive/not required
Pad 20dB, 40dB, Ground Lift: Yes
Input Impedence 350K Ohms
Output Impedence 80 Ohms
Construction Metal
Dimensions (W)4.75" x (H)1.375" x (D)2.875"
Weight 0.5 lbs.
- Output signal can be sent via a long cable to a mixer or PA system without frequency loss
- Passive circuit does not require a power supply or batteries
- High-quality transformer for low distortion and an isolated signal path
Application Acoustic guitars, bass guitars, keyboards, and more
Inputs 1/4"
Output XLR
Power Passive/not required
Pad 20dB, 40dB, Ground Lift: Yes
Input Impedence 350K Ohms
Output Impedence 80 Ohms
Construction Metal
Dimensions (W)4.75" x (H)1.375" x (D)2.875"
Weight 0.5 lbs.
