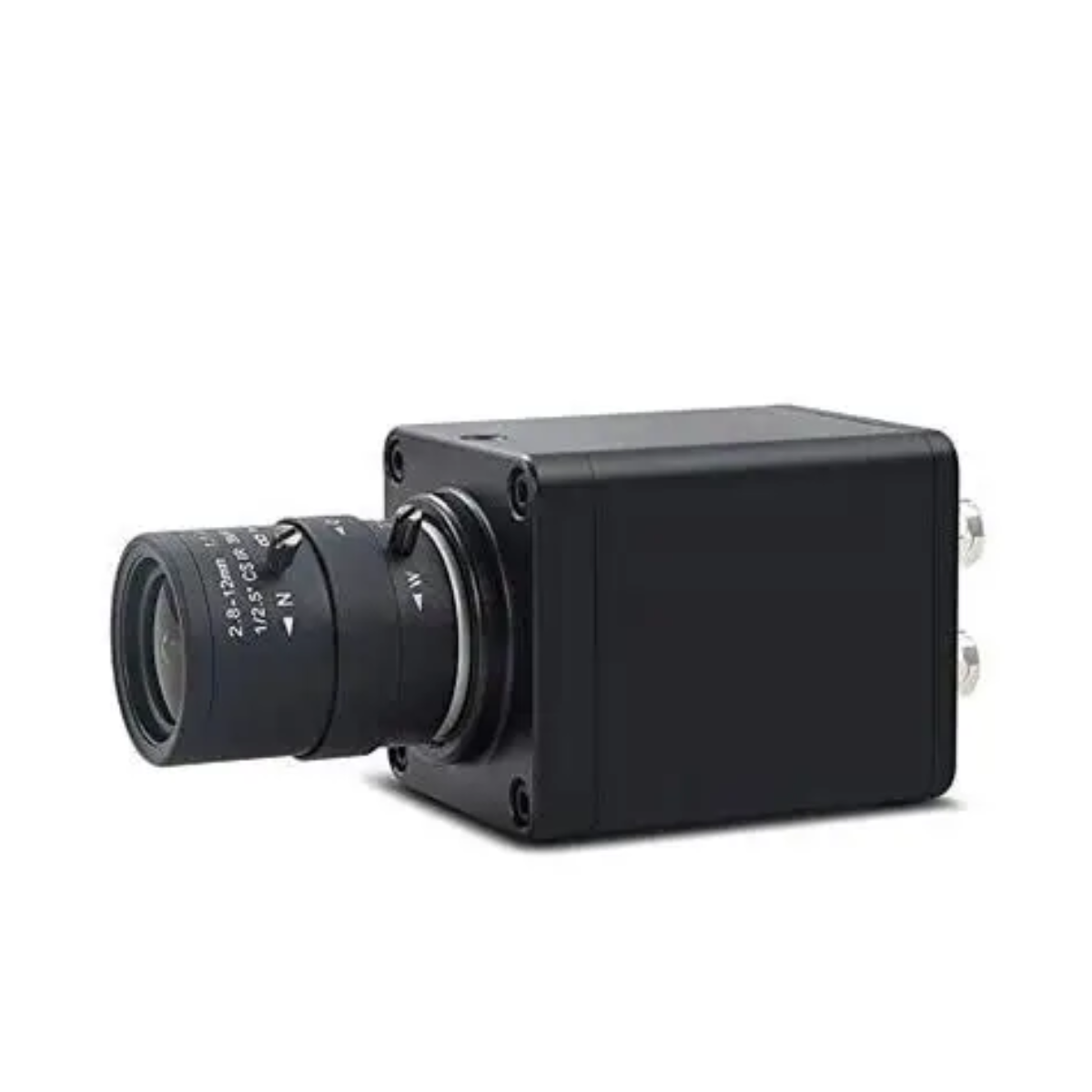

MOKOSE - HD-SDI - Camera SHD60-5 50mm

MOKOSE - HD-SDI - Camera SHD60-5 50mm

Using 1/2.8 CMOS image sensor,  3G / HD SDI digital signal and CVBS analog signal output

Multiple resolutions output, Support 1080@60/50/30/25P, 1080@60/50i, 720@60/50/30/25P，It can better compatibility with switcher or other device

1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission

Ultra-wide dynamic capabilities in a very strong light, can see the features of the image contrast light in a small range, and super wide dynamic , and the highest can reach 60fps.

The noise reduction is a technologies of between frames, realizing the 3 D image denoising. Make the images more pure and fine details! And closer to the actual effect of the human eye can see.

Camera Specification

• MODEL: SHD60


• Output：SDI and CVBS can output same time


• Solution: 1/2.8'' CMOS Sensor


• Effective Pixels: 1920(H)*1080(V)


• Resolution : 1080@60/50/30/25P, 1080@60/50i, 720@60/50/30/25P


• Lens: 3.2MM(No distortion) / 2.8-12MM / 5-50MM manual Lens


• Field of View: 77°(3.2MM) / 42°~110°(2.5-12MM) / 8°~48°(5-50MM)


• Backlight Compensation: Auto


• White Balance: Auto Tracking White Balance


• DAY/NIGHT function: Without


• Working Temperature: -10°C~50°C
