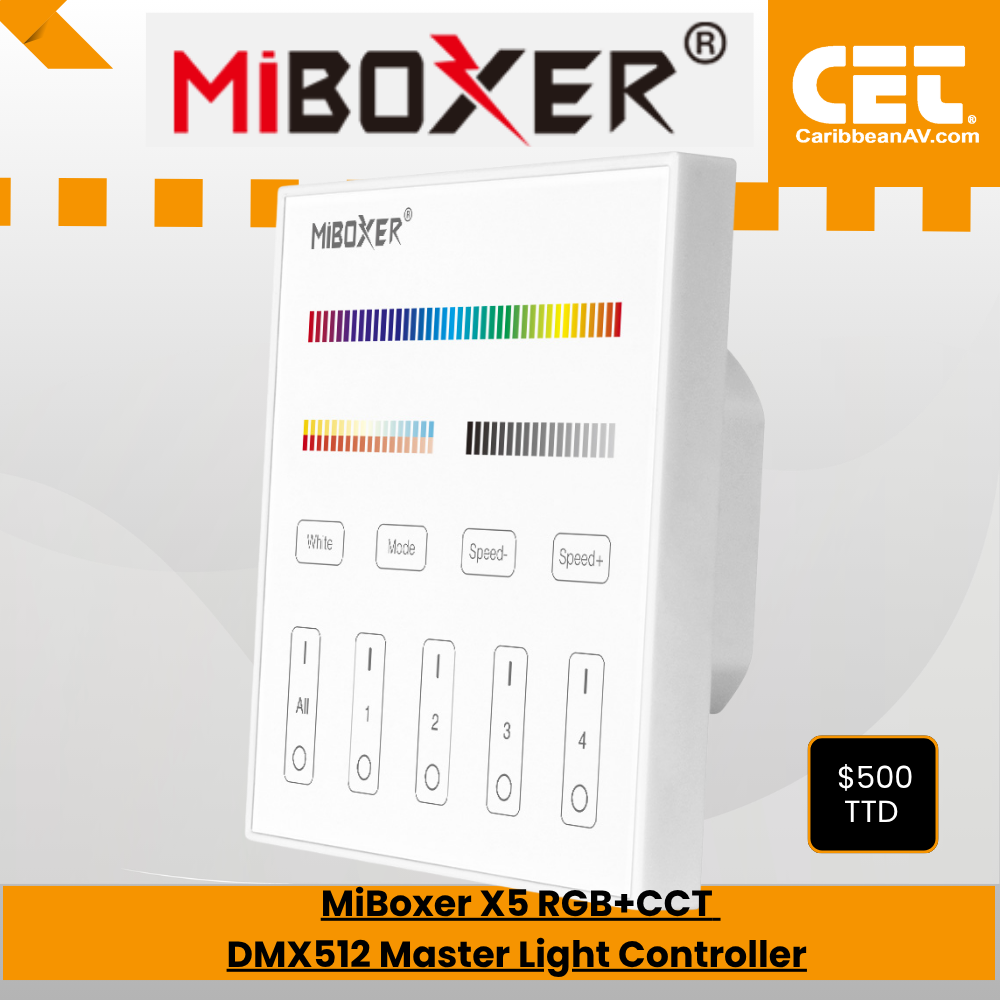

MiBoxer X5 RGB+CCT DMX512 Master Light Controller

The MiBoxer X5 RGB+CCT DMX512 Master Light Controller is an advanced, wall-mounted touch panel designed to provide high-precision management over complex LED installations. It functions simultaneously as a hardwired DMX512 standard protocol master and a 2.4GHz wireless RF transmitter, giving you dual-layered control over your lighting networks.

Power Input: AC 100~240V 50/60Hz (direct mains power)

Signal Output: DMX512 digital protocol + 2.4G RF Wireless

Zone Management: 4 separate zones controlled individually

Wireless RF Range: Up to 30 meters (approx. 100 feet)

Transmitting Power: 6dBm

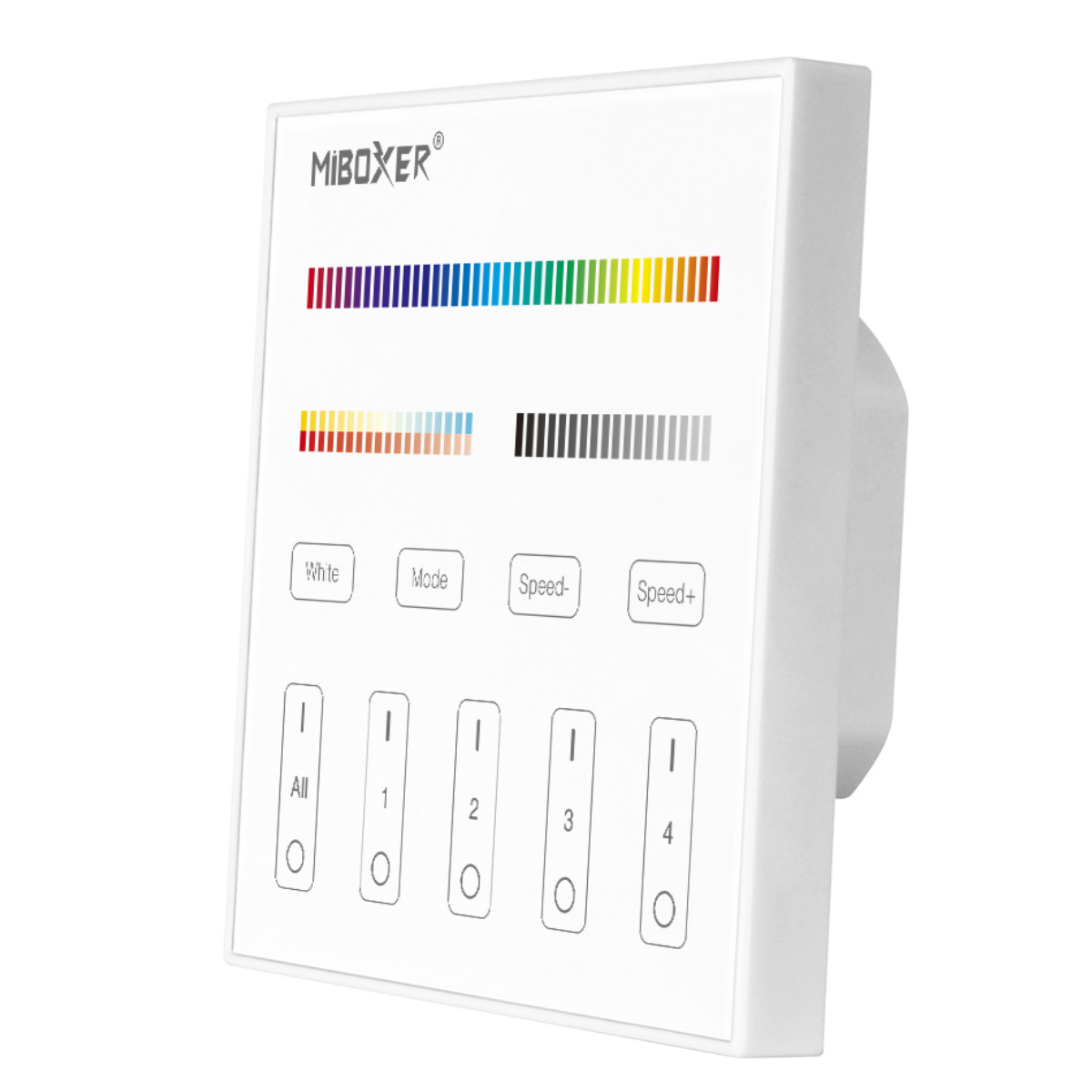

Form Factor: 86 x 86 x 26 mm glass touch panel

RGB+CCT Tuning: Mix up to 16 million colors, tweak color saturation levels, and shift color temperatures smoothly from warm white to cool white.

Dynamic Programming: Features 9 built-in color-changing modes with adjustable speeds.

Touch-Sensitive Surface: High-accuracy glass interface with an optional button-press sound indicator.

Hybrid Operation: It sends wired signals straight to DMX decoders or DMX fixtures, while concurrently acting as an RF master to bind with handheld 2.4GHz remotes (such as the FUT089, FUT092, or FUT096).

Smart Ecosystem Upgrades: By connecting a companion WL-Box1 2.4GHz Gateway, the X5 can be adapted for smartphone control via the Tuya Smart / Smart Life app, plus voice interaction via Amazon Alexa or Google Assistant
