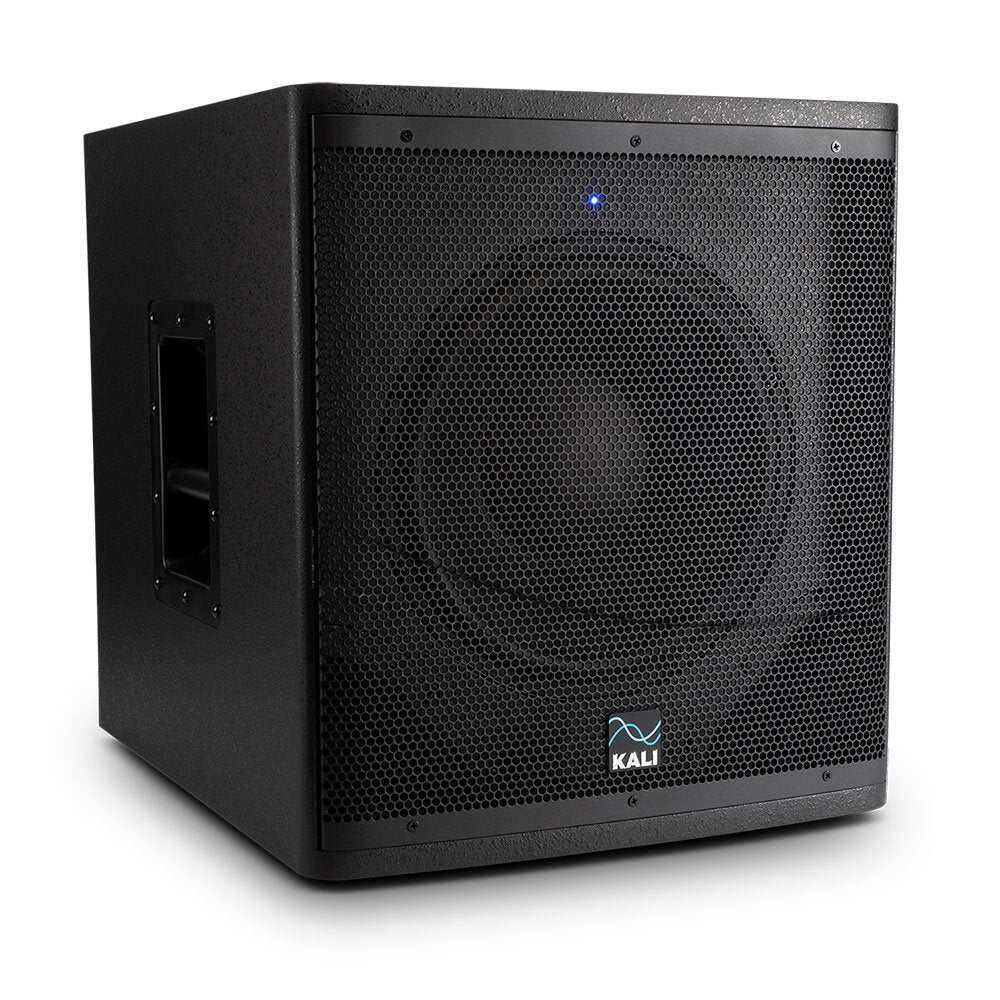

Kali Audio WS-12 Professional Studio/Live Subwoofer

Power. Depth. Adaptability.

\n\n

The WS-12 Subwoofer is made to be used with any near- or mid-field studio monitors, as well as with small portable PA systems in a live setting.

\n\n

One of the key design specifications for the WS-12 is that it be capable of providing bass management in a 5.1 system where all of the full-range speakers are Kali IN-8s. As such, the WS-12 is powered by a 1000W power amplifier mated to a high-excursion 12-Inch driver.

\n\n

This much power also makes the WS-12 a capable live subwoofer. Its enclosure is 18mm plywood and it has handles for easy carrying. Kali’s team made sure that it will fit in small passenger cars, so you can take it with you even when you’re calling a ride to get to your gig!

\n\n

All this power is controlled by a robust, user-friendly DSP section that let you dial in the exact settings you need for your system. Whether you’re using it with a pair of LP-6s, as bass management in a 5.1 system, or on stage with a PA, it’s easy to configure the WS-12 to get exactly what you need.
\n
\nThe WS-12 was designed as a companion subwoofer for Kali’s LP- and IN-Series Studio monitors.
\n
\nWhen used with a pair of Kali monitors, the subwoofer’s crossover and gain settings can be configured to precisely match those of the full-range monitors. With these settings dialed in, set the subwoofer between the speakers, and turn all speakers’ volume knob either to noon or all the way up. The subwoofer’s level will be exactly where it needs to in order to match the full- range speakers.
\n
\nThe WS-12 can be used for bass management in systems as large as 5.1 with any Kali monitors.
\n
\nConvenient settings allow the use of an external crossover, and the WS-12 can even be configured as a dedicated Low Frequency Effects channel.
\n
\nSpecifications

\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Powered:	Yes
Amp Class:	D
Continuous Power:	500W
Peak Power:	1000W
Driver Size:	12 Inches
Freq Response: (-10 dB):	23Hz - 160 Hz
Freq Range: (+/-3 dB):	30Hz - 160 Hz
Crossover:	Selectable; See User's Manual
Max SPL:	123dB
Unbalanced Inputs:	Stereo RCA
Balanced Inputs:	Stereo TRS/XLR Combi Jack
Balanced Outputs:	Stereo XLR
XLR Pass-Through Noise:	.09 mV; 99 dB Signal-to-Noise
THD:	<2% (95 dB @1m w/100 Hz crossover)
Other Inputs/Outputs:	1/4-Inch Footswitch Input
Enclosure:	18mm Plywood
Height:	19.2 Inches (48.8cm)
Depth:	20.5 Inches (52.1cm)
Width:	17.2 Inches (43.7cm)
Weight:	63 Lbs (29kg)
