JBL

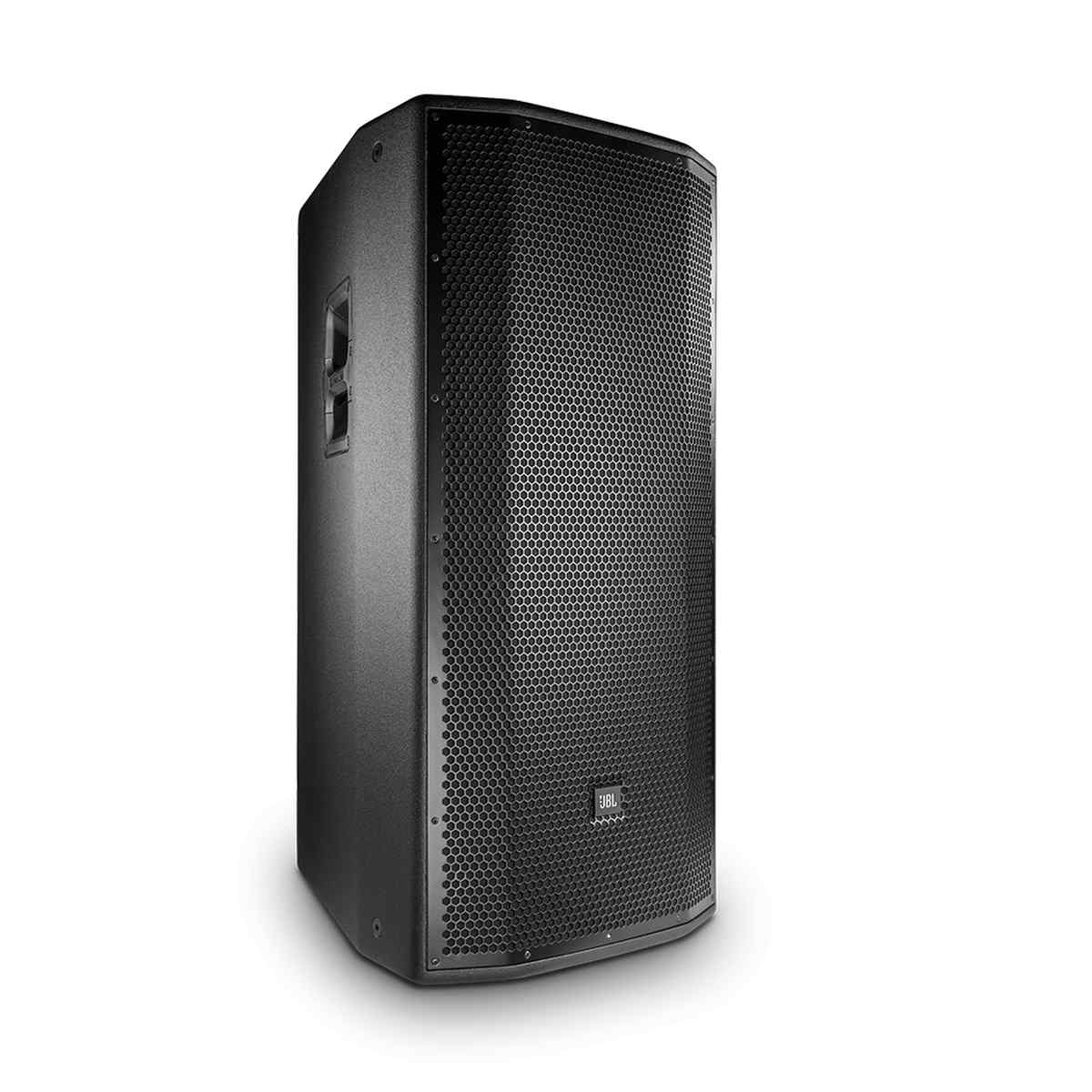

JBL PRX835W 3-Way Powered Loudspeaker
JBL PRX835W 3-Way Powered Loudspeaker
Couldn't load pickup availability
Introducing the JBL PRX835W 3-Way Powered Loudspeaker:
\n\nThe JBL PRX835W is a powerful and versatile full-range speaker designed to excel in main system applications. With its impressive features and superior sound quality, it is the perfect choice for professional audio setups.The PRX835W boasts a robust 15\" woofer, delivering deep and impactful bass frequencies with clarity and precision. Accompanied by a 6.5\" midrange transducer, it ensures accurate reproduction of midrange frequencies, adding warmth and definition to your sound. The 1.5\" compression driver handles the high frequencies, providing clear and detailed treble response.
\nPowered by a 1500-watt class-D amplifier, the PRX835W delivers exceptional volume and dynamic range, allowing your music to be heard with power and clarity. Whether you're performing on stage, setting up for a live event, or simply enjoying music in a large venue, this speaker will impress with its capability to fill the space with rich, immersive sound. Despite its powerful performance, the PRX835W remains lightweight and compact, making it easy to transport and set up. You can confidently take it on the road or install it in various locations without sacrificing audio quality or convenience.
\nOne standout feature of the PRX835W is its integrated Wi-Fi capability. This allows for wireless control and configuration of the speaker through compatible devices, providing you with added flexibility and convenience in adjusting settings and optimizing sound quality.
\nWhether you're a professional audio engineer, a touring musician, or a venue owner, the JBL PRX835W is an excellent choice for a main system speaker. Experience the impressive power, clarity, and versatility that this 3-way powered loudspeaker brings to your sound reinforcement setup.

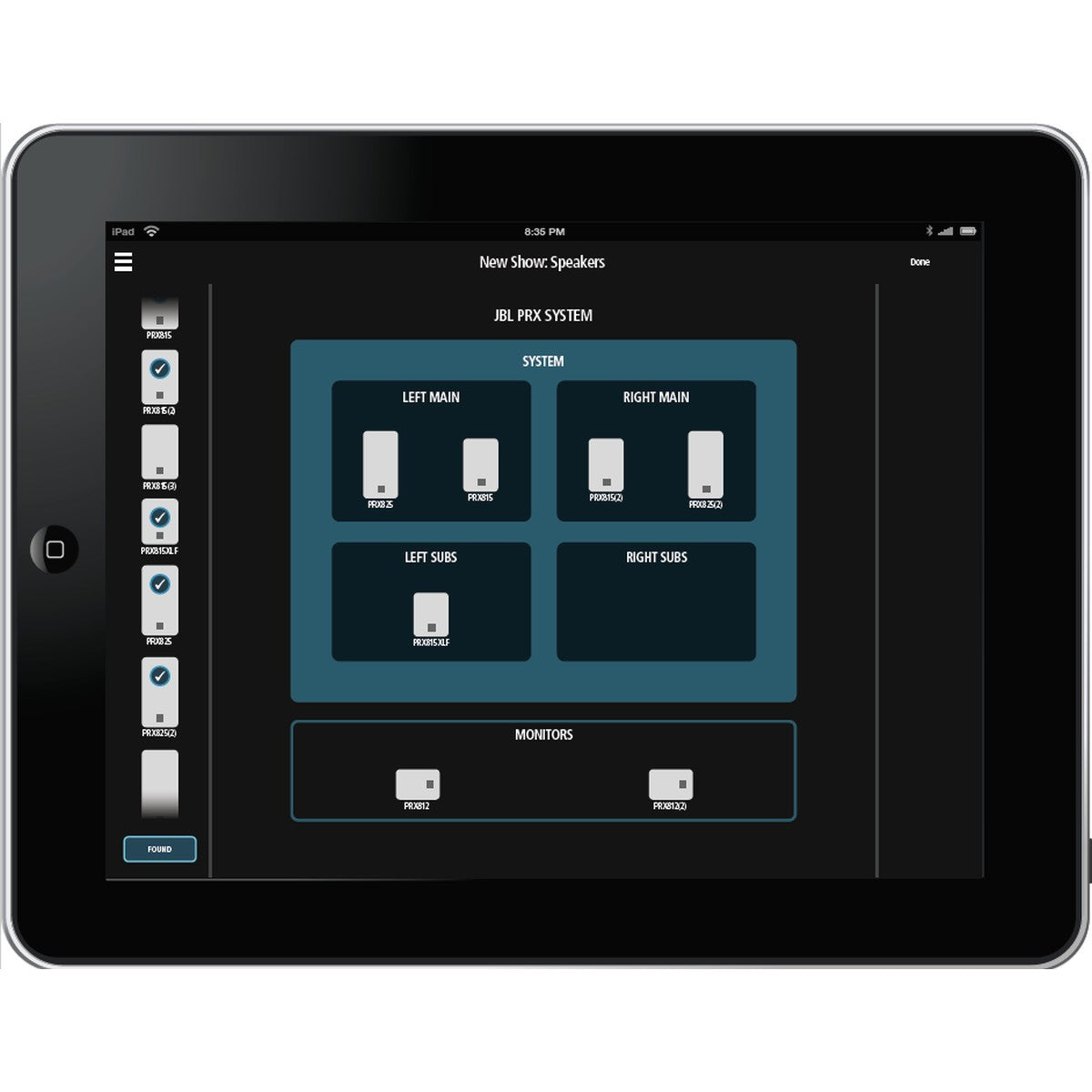

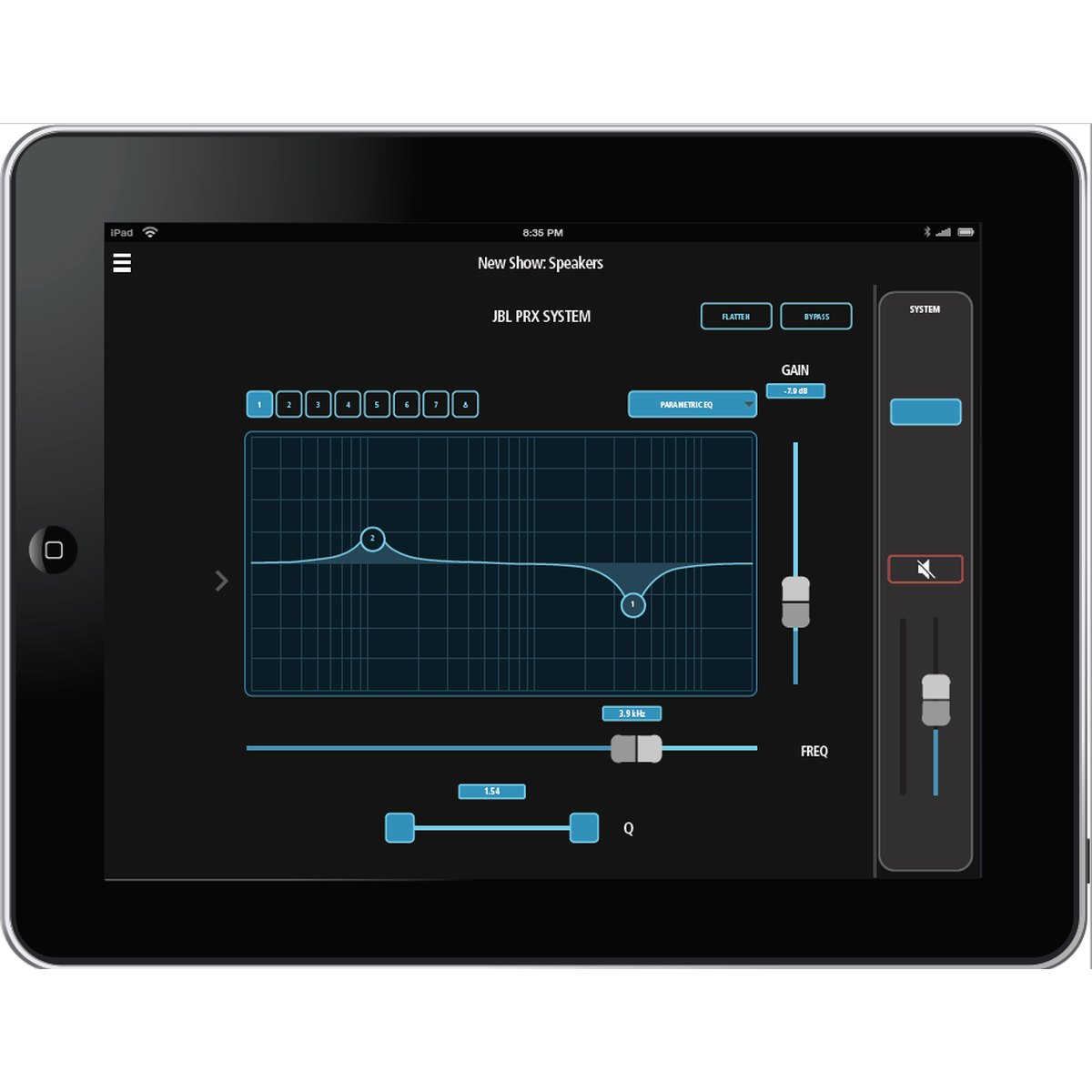

\n- Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
\n- Class-leading 1500-watt amplifier delivers ample power to fill your venue
\n- JBL Differential Drive® transducers for higher SPL in a lightweight design
\n- Next-generation JBL neodymium compression drivers

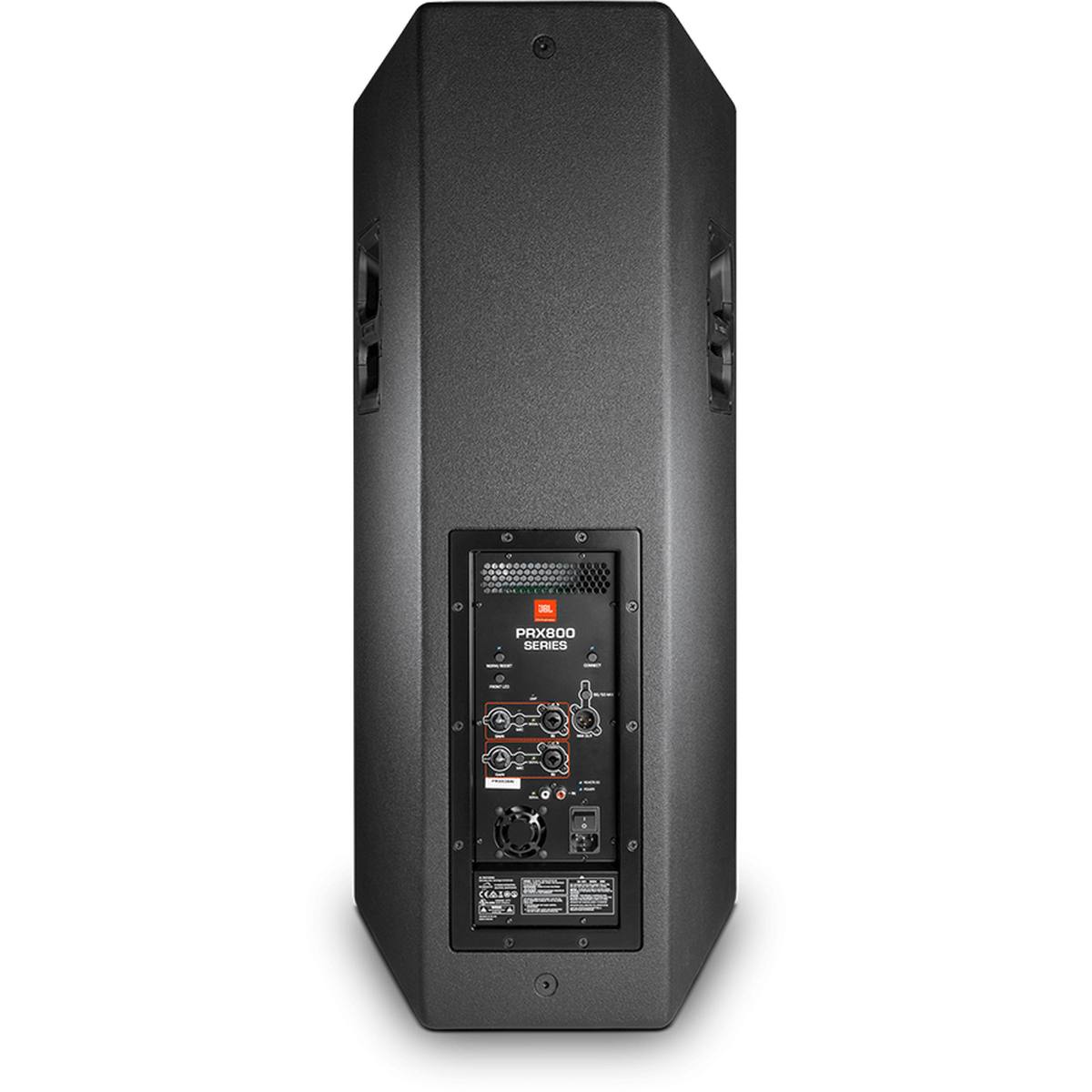

\n- Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
\n- Intelligent variable-speed fan activates only when needed to reduce noise
\n- Updated tuning delivers flat frequency response and smooth off-axis behavior
\n- Integrated 12 x M10 Suspension Points
\n- Universal power supply for worldwide compatibility
\n- dbx Type IV™ limiting ensures clear, accurate sound at high volumes
\n- Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance
\n
\nSpecs
\nSystem Type Self Powered 15”, three-way, bass-reflex
\nMaximum SPL Output 138 dB peak
\nFrequency Range (-10dB) Normal: 35 Hz – 20 kHz Boost: 34 Hz – 20 kHz
\nFrequency Response (±3 dB) Normal: 42 Hz – 20 kHz Boost: 39 Hz – 20 kHz
\nInputs 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
\nInput Impedance 20K Ohms (balanced), 10K Ohms (unbalanced)
\nSignal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio.
\nEQ User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.
\nDynamic Control (Input) dbx Type IV™ limiter circuit
\nCrossover Frequency 580 Hz, 2.1 kHz
\nDesign Highly efficient Class-D amplifier
\nPower Rating 1500W (750W x 2)
\nAC power input 100V - 240V ~ 50/60 Hz

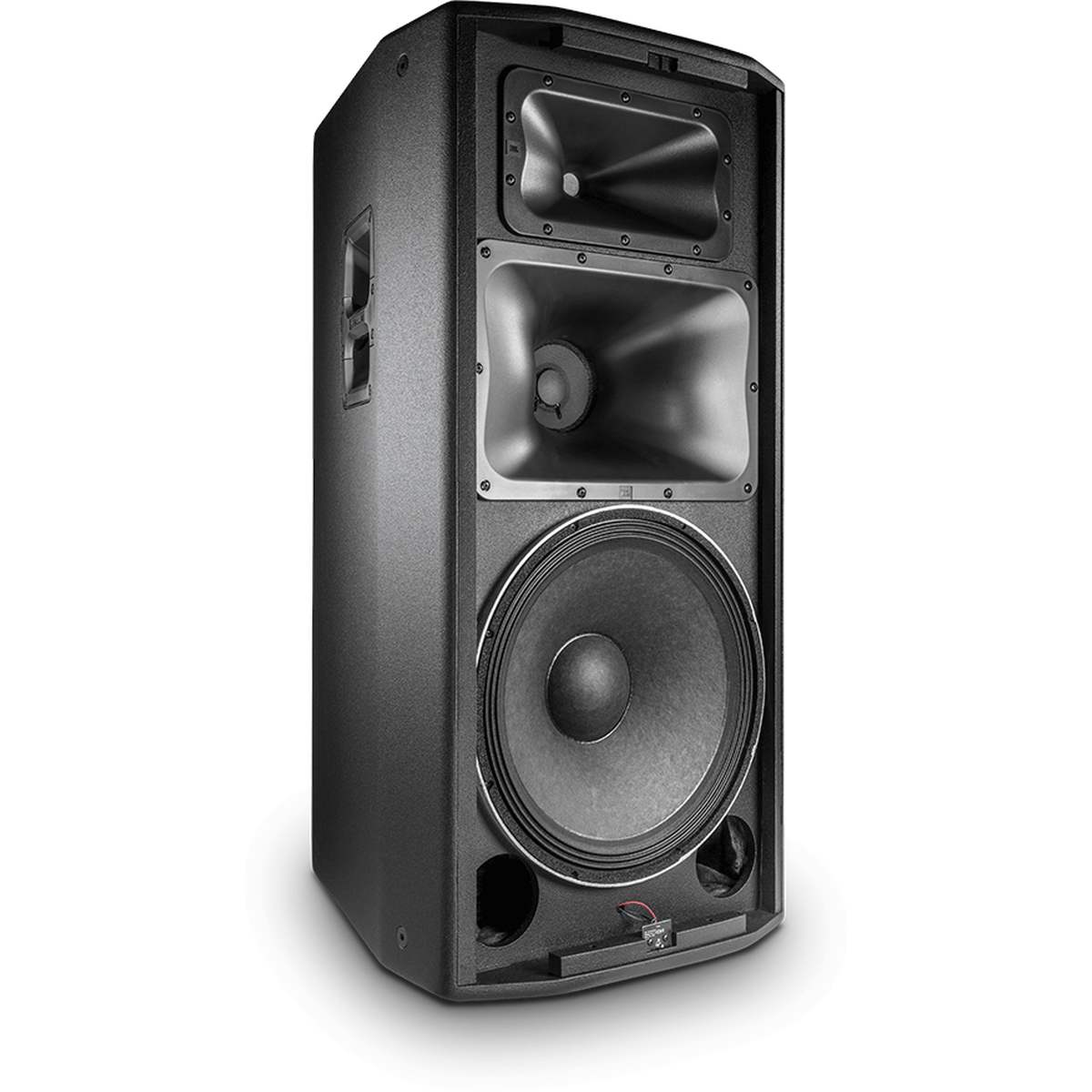

\nLF Driver 1 x JBL 275G 380 mm (15 in) woofer
\nMF Driver 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer
\nHF Driver 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver
\nCoverage Pattern 90° x 50° nominal
\nDirectivity Index (DI) 10.5 dB
\nDirectivity Factor (Q) 11.2
\nEnclosure Trapezoidal, 18 mm, Duraflex coated plywood
\nSuspension / Mounting 12 M10
\nTransport 2 x integrated handles with injection molded backing cup
\nFinish Obsidian DuraFlex™ finish
\nGrille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
\nDimensions (H x W x D) 938mm x 446mm x 539mm (36.9in x 17.5in x 21.2in)
\nNet Weight 32.38 kg (71.4 lb)
\nGross Weight 38.6 kg (85.0 lb)
\nMic Inputs 2
\nPhantom Power No
\nEffects 25 parametric EQ's and speaker delay
\nOutputs 1 x XLR (mix out)
