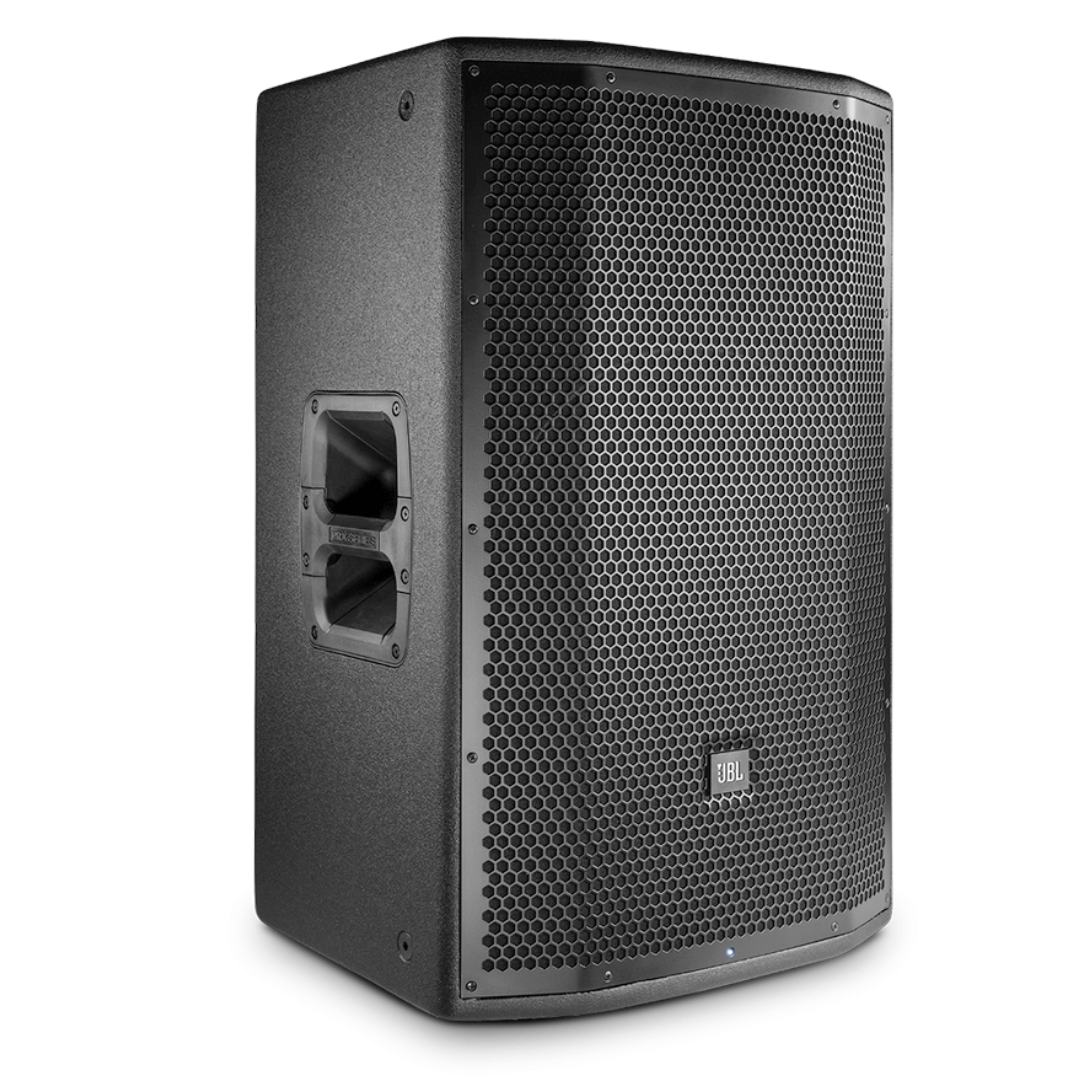

JBL PRX815W 15inch 2-way Loudspeaker
15” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi
The JBL PRX815 is a full-range speaker designed for main system and floor monitor applications. Featuring a 15”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX815 delivers incredible volume in a lightweight and compact form factor.
- Built-in Wi-Fi for wireless control of your system from anywhere in the venue
- Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound.
- Class-leading 1500-watt amplifier delivers ample power to fill your venue
- JBL Differential Drive® transducers for higher SPL in a lightweight design
- Next-generation JBL neodymium compression drivers
- Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
- Intelligent variable-speed fan activates only when needed to reduce noise
- Updated tuning delivers flat frequency response and smooth off-axis behavior
- Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
- Universal power supply for worldwide compatibility
- dbx Type IV™ limiting ensures clear, accurate sound at high volumes
-Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance
Configuration
Active Subwoofer
Total Power Capacity
1500 W
Amplifier Class
Class-D
Drivers
LF Driver
1 x 18" / 45.7 cm Woofer
Performance
Frequency Range
30 Hz to 103 Hz -10 dB
Frequency Response
35 Hz to 87 Hz ±3 dB
Maximum SPL
134 dB (Peak)
I/O Impedance
Input:
20 Kilohms (Balanced)
Connectivity
Audio I/O
2 x Combo XLR-1/4" TRS Balanced Input
Signal Processing
Crossover
100 Hz (Internal)
120 Hz, 24 dB/Octave (Thru Output)
Dynamic Processing
Limiter
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Handles
2
Construction Material
Plywood
Dimensions
27.3 x 20.6 x 28.5" / 69.2 x 52.3 x 72.4 cm
Weight 81 lb / 36.7 kg
Packaging Info
Package Weight
97.6 lb
Box Dimensions (LxWxH)
33 x 29.5 x 25.5"
