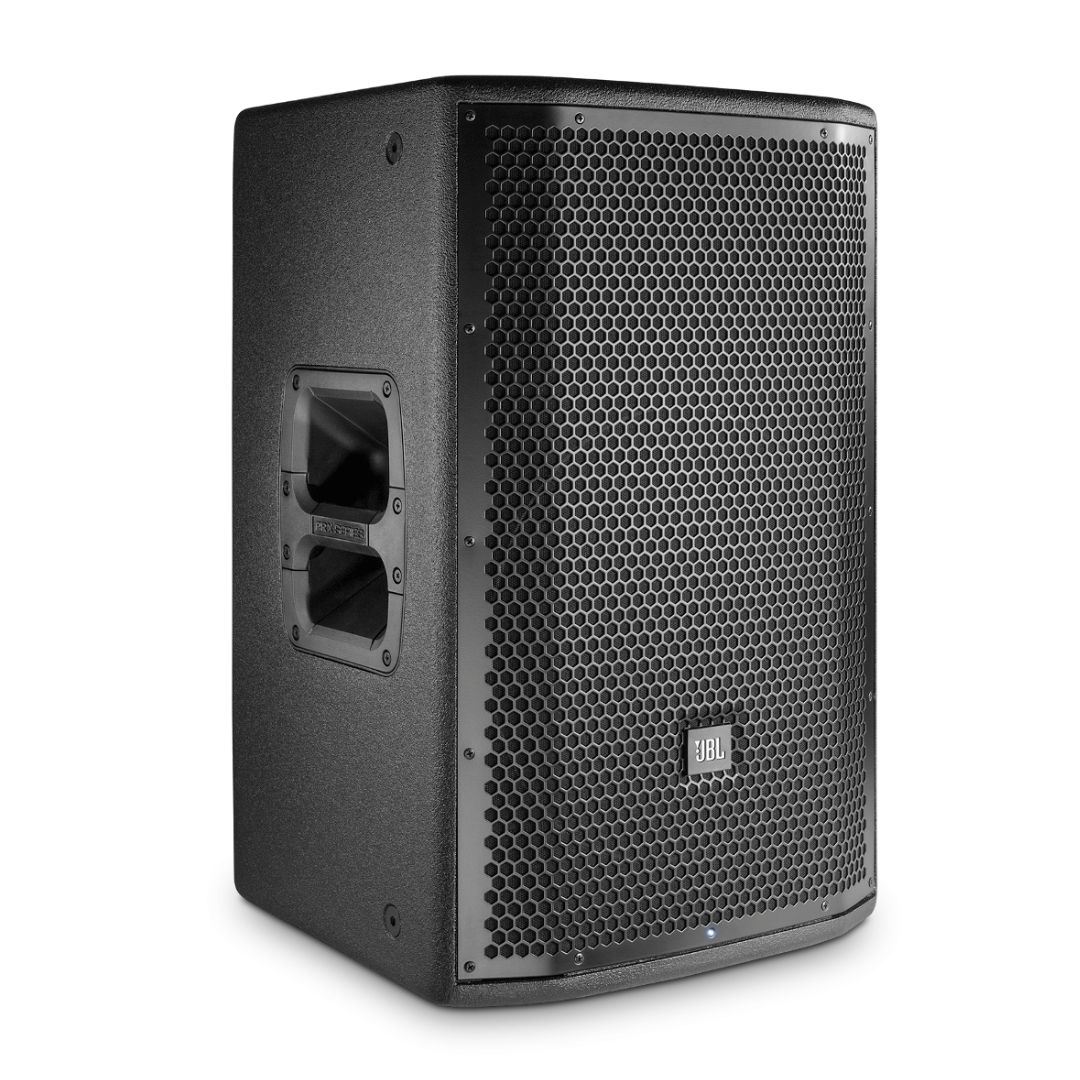

JBL PRX812W 12-inch Powered Loudspeaker

The JBL PRX812 is a versatile 12” two-way full-range main system/floor monitor designed for applications such as stage monitoring and front-of-house main PA. It is equipped with a powerful 1500-watt class-D amplifier and features a bass-reflex design for impressive volume in a compact and lightweight enclosure. The speaker incorporates built-in Wi-Fi for convenient wireless control, accessible through the PRX Connect mobile app available on iOS and Android devices. This app allows users to wirelessly control volume levels, utilize an 8-band parametric EQ, and apply up to 50ms of speaker delay for precise sound adjustments.

Key Features:

    Wi-Fi Connectivity: Built-in Wi-Fi enables wireless control of the system from any location within the venue.
\n    PRX Connect Mobile App: The free PRX Connect mobile app, compatible with iOS and Android, provides wireless control over volume levels, 8-band parametric EQ, and up to 50ms of speaker delay.
\n    Powerful Amplification: Class-leading 1500-watt amplifier delivers ample power to fill the venue with high-quality sound.
\n    Differential Drive® Transducers: JBL Differential Drive® transducers provide higher SPL in a lightweight design.
\n    Neodymium Compression Drivers: Next-generation JBL neodymium compression drivers enhance performance.
\n    Redesigned Crown Input Technology: Features XLR, 1/4”, and RCA inputs, plus XLR loop-through for versatile connectivity.
\n    Intelligent Variable-Speed Fan: Fan activates only when needed to reduce noise.
\n    Updated Tuning: Delivers flat frequency response and smooth off-axis behavior.
\n    Durable Construction: Wooden cabinets with tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles ensure durability.
\n    Universal Power Supply: Compatible with power systems worldwide.
\n    dbx Type IV™ Limiting: Ensures clear, accurate sound at high volumes.
\n    Applications: Suited for use as a stage monitor or a front-of-house main PA. Ideal for use with a PRX818XLF subwoofer for a high-performance self-powered sub/sat system.
\n    Components: Comprised of a 12” Differential Drive® woofer, a 2408H-1 neodymium compression driver mounted to a 90° by 50° horn, and a 1500-watt Class-D digital power amplifier.
\n    DSP: Sophisticated DSP at the core of a fully-featured input section provides user-selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting, and discrete component optimization.
\n    Construction: Built from 18 mm poplar plywood with tongue and groove joints. DuraFlex™ finish for protection. Grilles made from dent-resistant 16-gauge steel, and handles made from light-weight glass-filled nylon.
\n    Amplifier Input Panel: Offers XLR or ¼ inch jack compatibility, and a sensitivity switch for flexibility. Signal present and limiter lights indicate system status.

The JBL PRX812 is designed to deliver maximum performance for its weight and size, providing a high-powered and easily controlled audio solution for various applications.
\n
\nSystem Type     Self Powered 12”, two-way, bass-reflex
\nMaximum SPL Output     135 dB peak
\nFrequency Range (-10dB)     Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz
\nFrequency Response (±3 dB)     Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz
\nInputs     2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
\nInput Impedance     20K Ohms (balanced), 10K Ohms (unbalanced)
\nSignal Indicators     Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio
\nEQ     User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
\nDynamic Control (Input)     dbx Type IV™ limiter circuit
\nCrossover Frequency     1.85 kHz
\nDesign     Highly efficient Class-D amplifier
\nPower Rating     1500W (750W x 2)
\nAC power input     100V - 240V ~ 50/60 Hz
\nLF Driver     1 x JBL 272G 305 mm (12 in) woofer
\nHF Driver     1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
\nCoverage Pattern     90° x 50° nominal
\nDirectivity Index (DI)     10.2 dB
\nDirectivity Factor (Q)     10.4
\nEnclosure     Asymmetrical, 18 mm, Duraflex coated plywood
\nSuspension / Mounting     Dual 36 mm pole socket, 12 x M10 Suspension Points
\nTransport     1 x injection molded handle with backing cup
\nFinish     Obsidian DuraFlex™ finish
\nGrille     Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
\nDimensions (H x W x D)     599mm x 385mm x 341mm (23.6in x 15.1in x 13.4in)
\nNet Weight     40 lbs / 18.1 kg
\nGross Weight     21.2 kg (48.0 lb)
\nMic Inputs     2
\nPhantom Power     No
\nEffects     25 parametric EQ's and speaker delay
\nOutputs     1 x XLR (mix out)
