JBL EON208P Personal PA System

JBL 208P Overview

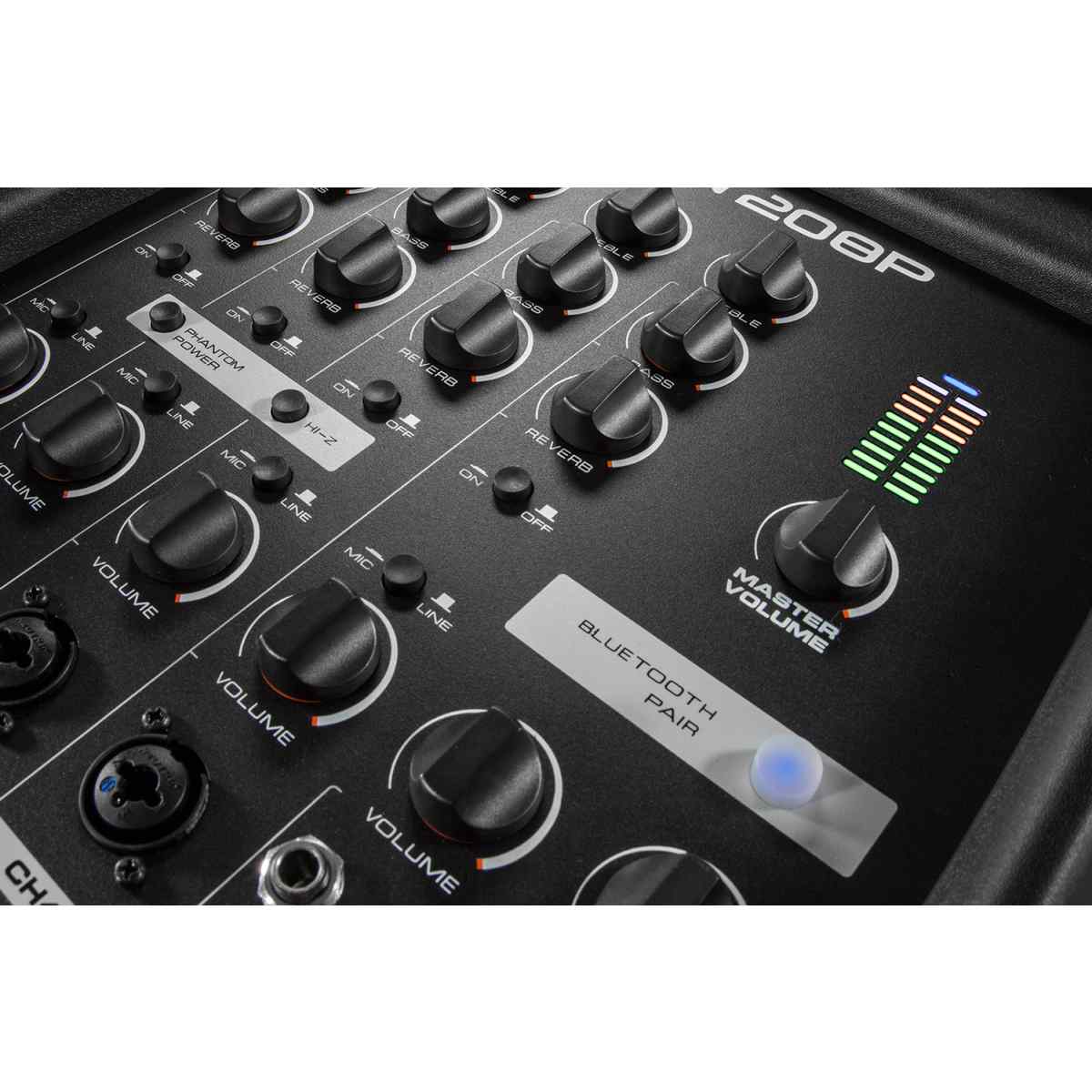

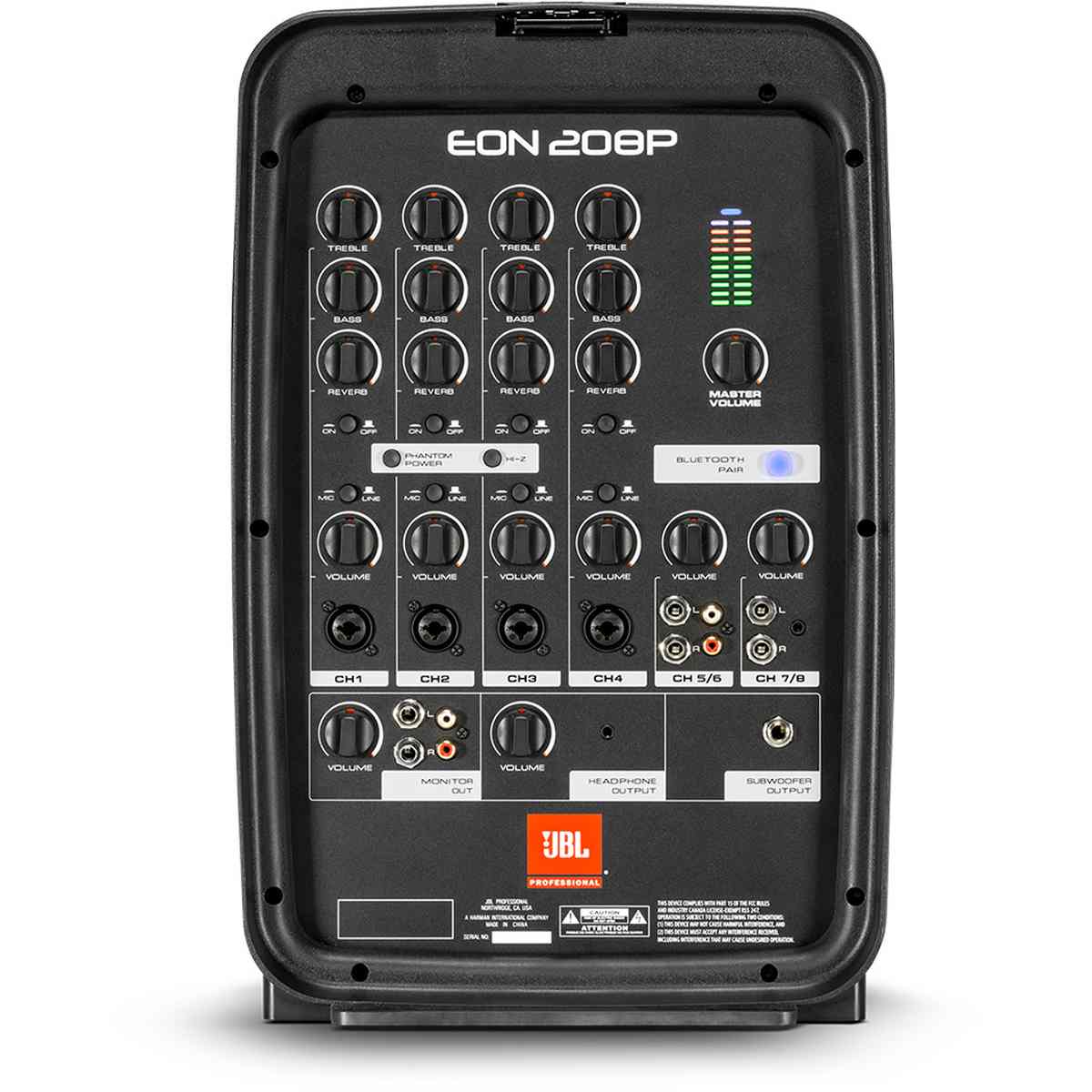

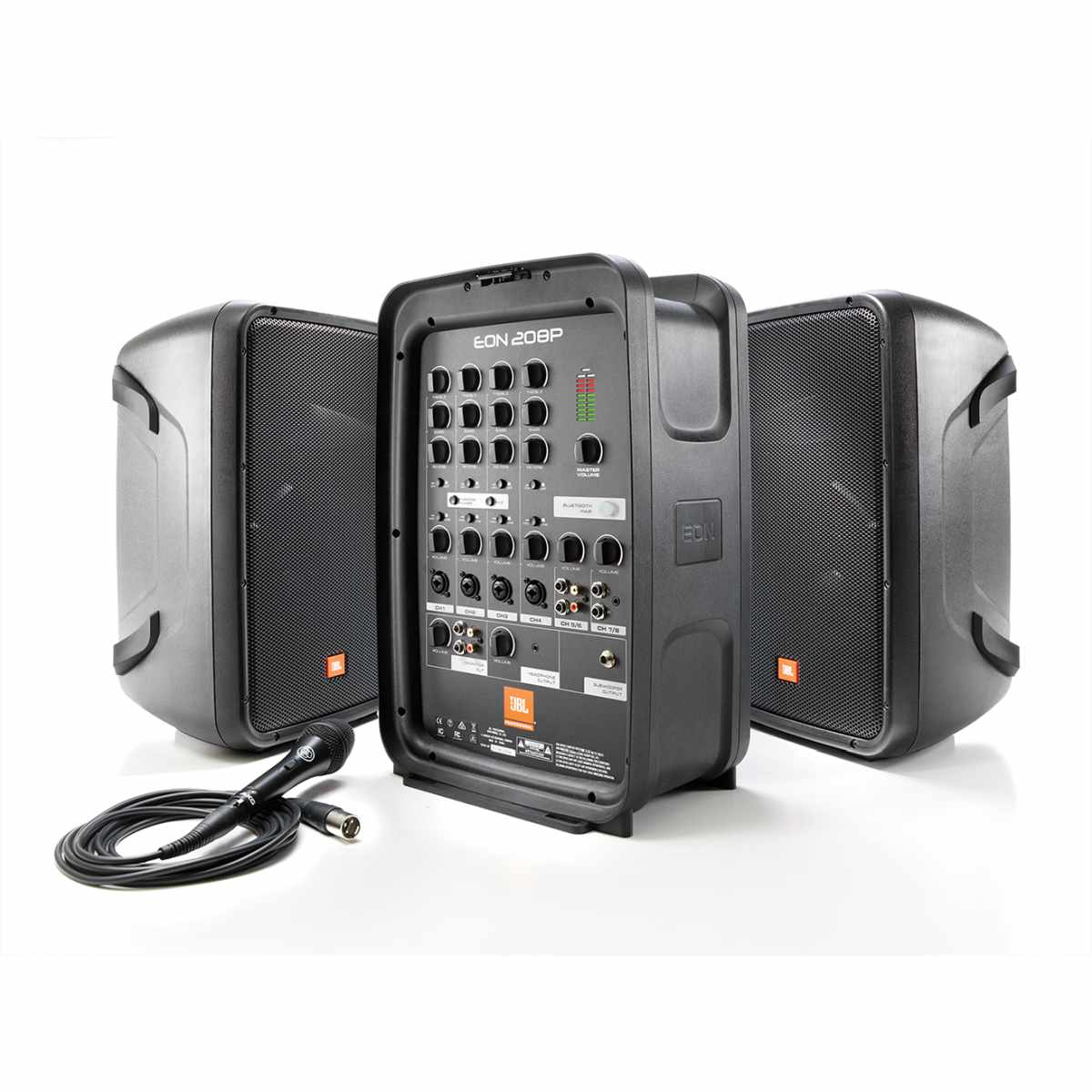

\nThe EON208P Personal PA System from JBL includes an eight-channel mixer and a pair of two-way loudspeakers which all clip together to form one portable unit. On the mixer itself, channels one through four feature bass, treble, reverb, and volume controls, as well as combo XLR-1/4\" jacks. The first two channels provide phantom power—useful for condenser microphones—while channel three sports a Hi-Z input for guitars. Channels five through eight are grouped in stereo pairs, with the first two giving you RCA options, the second two giving you a 1/8\" / 3.5mm stereo input for MP3 players and phones, and both sets offering dual 1/4\" jacks as well. Additionally, this mixer can pair with Bluetooth devices for wireless streaming with tablets, smartphones, and other devices.
\n

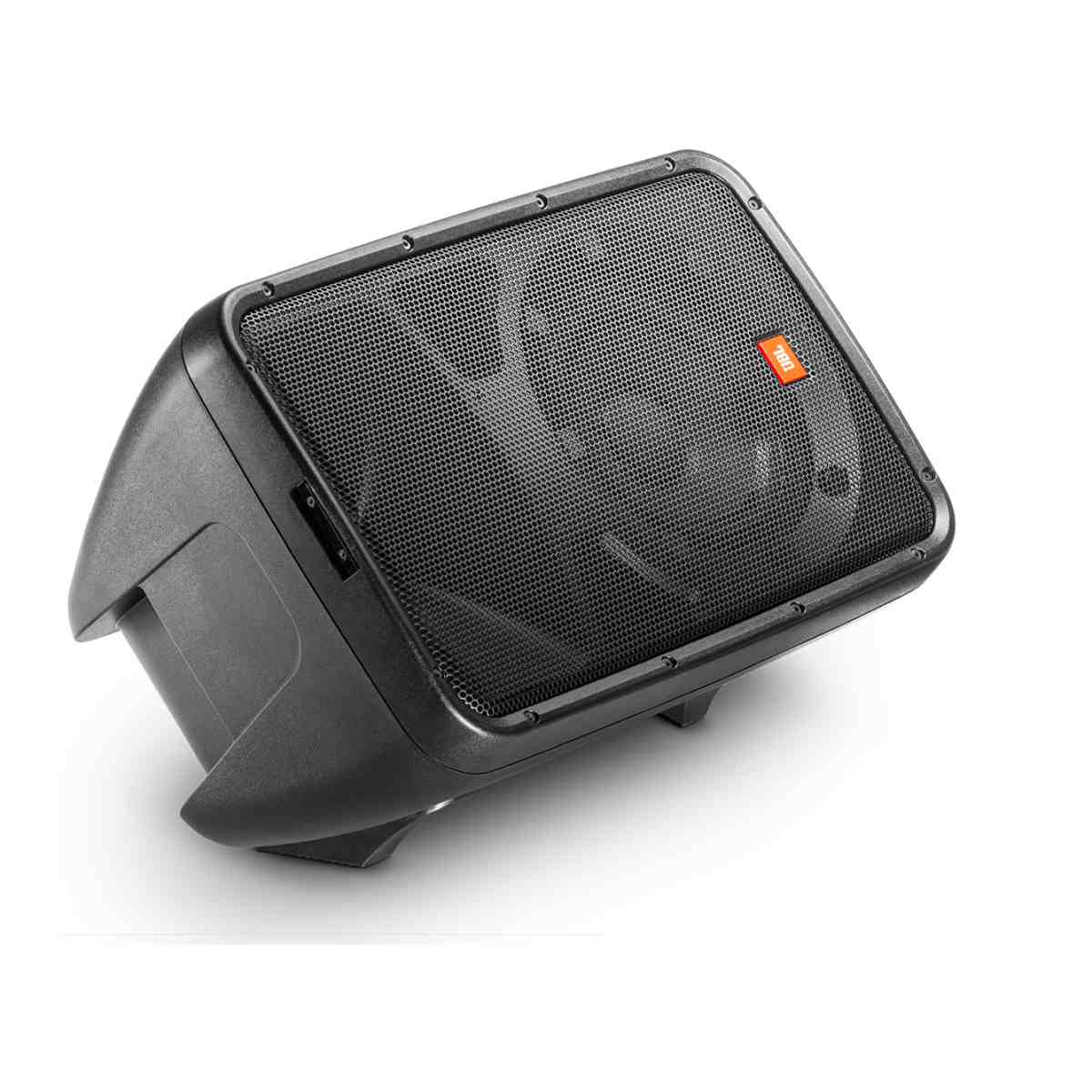

\nBoth 8\" two-way loudspeakers deliver a wide degree of coverage, as well as 300W of power and a maximum sound pressure level of 121 dB.
\nBluetooth
\nWith Bluetooth connectivity, EON208P lets you stream audio from your mobile or Bluetooth-enabled device.
\nPortable Design

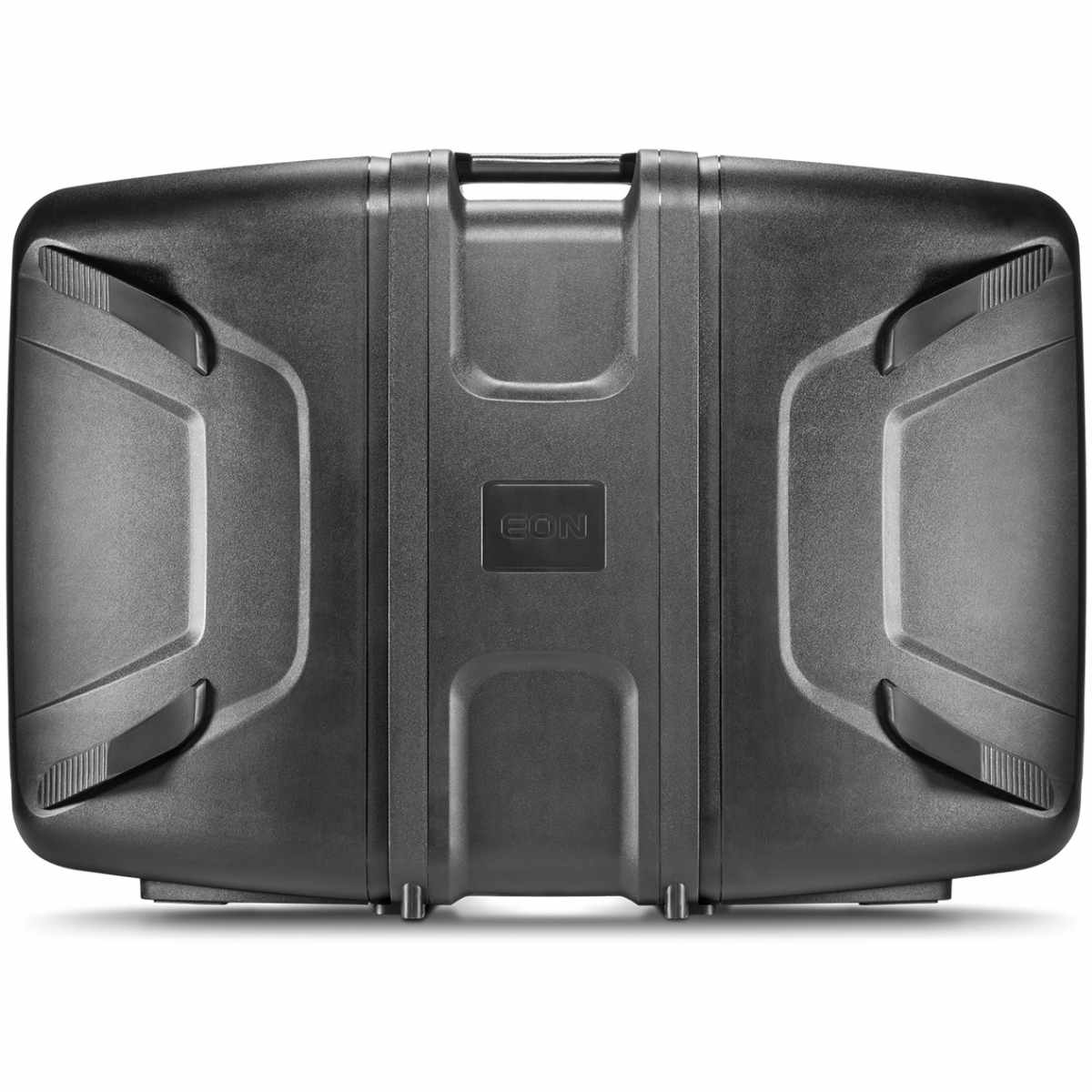

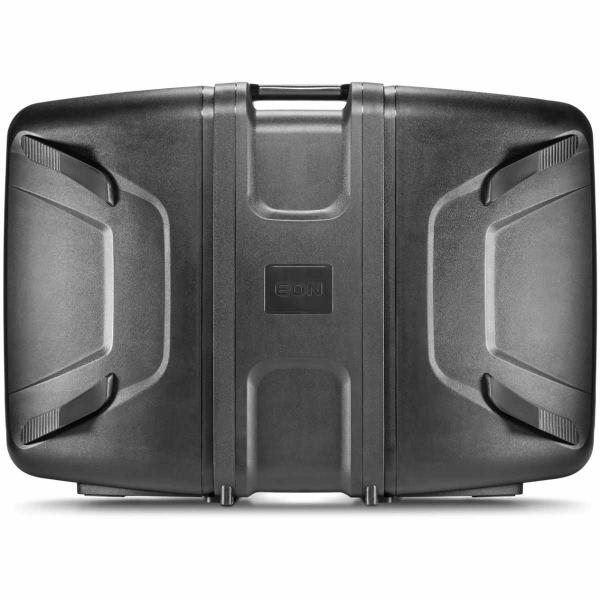

\nBoth 8\" speakers clip onto either side of the 8-channel mixer, thus providing portable transport from gig to gig.\n

Specs

\nPortable PA System\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Speaker Configuration	2 x 2-Way Loudspeaker
Number of Input Channels	8
Amplifier Power Rating	300 W
Amplifier Class	Class-D

\nSpeakers\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

HF Driver	1 x 1\" / 25.4 mm Aluminum Dome Tweeter
LF Driver	1 x 8\" / 203 mm Woofer
Magnet	HF Driver: \n Neodymium

\nSignal Processing\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Crossover	2 kHz, 12 dB/Octave (Passive)
EQ	8 x HF Shelf: \n ±12 dB \n 8 x LF Shelf: \n ±12 dB
Dynamic Processing	Limiter

\nPerformance\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Frequency Range	60 Hz to 20 kHz -10 dB \n 70 Hz to 18 kHz ±3 dB
Maximum SPL	121 dB (Peak)
Coverage Angle	100° H x 50° V

\nConnectivity\n\n\n \n \n \n \n \n \n \n \n \n \n

Audio I/O	2 x 1/4\" TS Unbalanced Output \n 2 x RCA Monitor Output \n 2 x 1/4\" TRS Balanced Output \n 1 x 1/8\" / 3.5 mm TRS Headphone Output \n 1 x 1/4\" TRS Balanced Subwoofer Output \n 4 x Combo XLR-1/4\" Input \n 4 x 1/4\" TRS Balanced Input \n 1 x 2RCA Input \n 1 x 1/8\" / 3.5 mm TRS Input
Phantom Power	Yes

\nPower\n\n\n \n \n \n \n \n \n

AC Input Power

100 to 120 VAC, 50 / 60 Hz

\nPhysical\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Transport Options	1 x Handle (Top)
Mounting	1.4\" / 35.56 mm Pole Socket
Construction Material	Perforated Metal Grille, Polypropylene
Weight	38.2 lb / 17.3 kg

\nPackaging Info\n\n\n \n \n \n \n \n \n \n \n \n \n

Package Weight	50 lb
Box Dimensions (LxWxH)	30.5 x 22.55 x 15.75\"

\n
\nSpec Sheet
