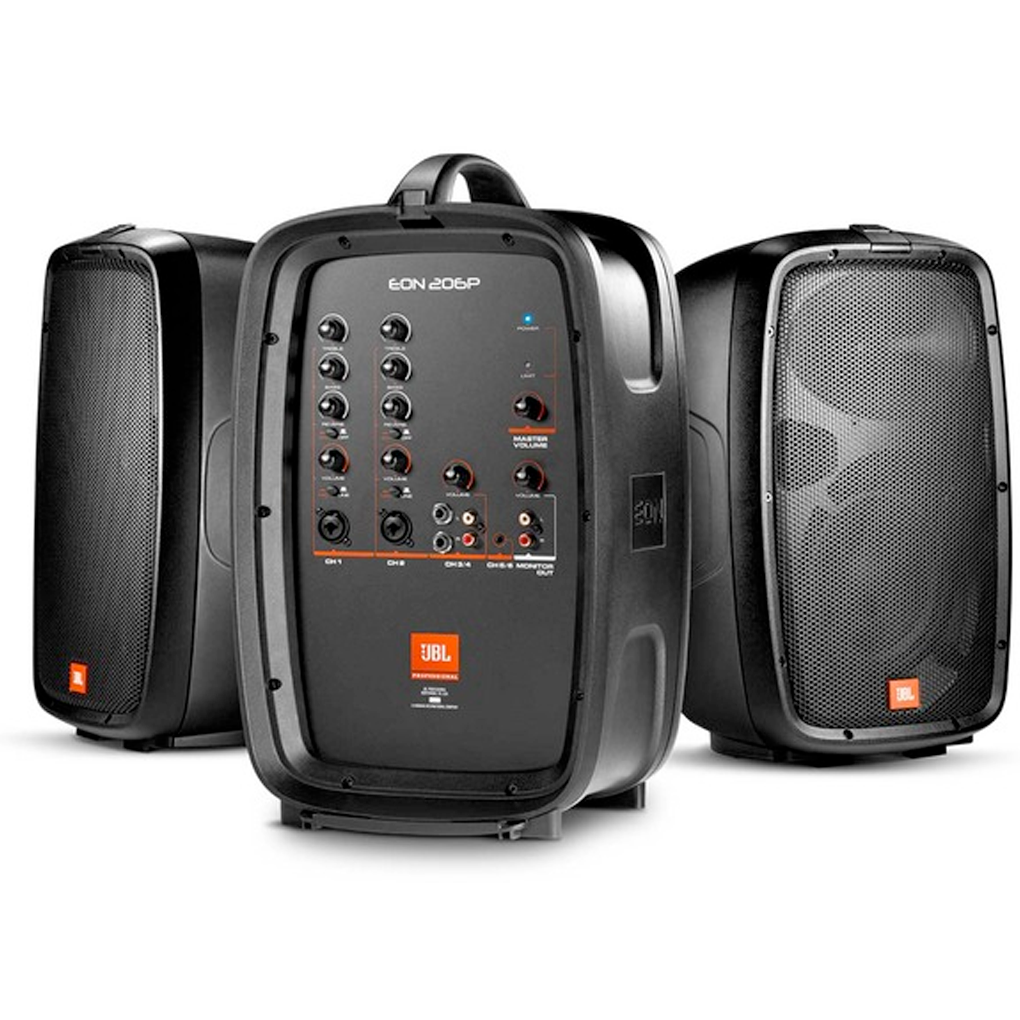

JBL EON206P Portable 6.5” Two-Way system with detachable powered mixer

Meet the EON206P: your all-in-one, on-the-go PA system. Boasting multiple input channels with individual tone controls and reverb, along with versatile sound output capabilities, this system seamlessly adapts to any audio environment. Its lightweight, ergonomic design ensures easy handling without sacrificing sound quality. Whether you're a musician, vocalist, DJ, educator, or simply someone in search of compact portability, the EON206P delivers everything you need to make your message heard loud and clear.



System Type 2 Self powered 6.5”, two-way, bass-reflex

Max SPL Output 113 dB

Frequency Range (-10dB) 64Hz – 22kHz

Frequency Response (-3dB) 77Hz – 20kHz

Coverage Pattern 100° x 80°

Amplifer Design Class D

Power Rating 160 W (2 X 80W)

Package Dimensions (H x W X D, mm) 530 x 705 x 340

Package Dimensions (H x W x D, inch) 20.9” X 27.8” x 13.4”

Net Weight 11.38 kg (25 lbs)

EON206 POWERED MIXER Yes

Input Connectors 6 inputs (2 Mono Mic/Line, 2 x Stereo)

Channels 1-2 are XLR / 1/4” jack combo connectors, XLR is a mic level input, 1/4” is a line level input, 3-4, one pair of 1/4” balanced TRS jacks (stereo), and a pair of RCA jacks (stereo) 5-6 is a 3.5 mm stereo jack

Input Impedance Ch 1-2 Combo

Ch 1-2 Combo TRS 40 K Ohms Balanced

Ch 3-4 TRS 20 K Ohms Balanced

Ch 3-4 RCA 5 K Ohms Unbalanced

Ch 5-6 3.5 mm 10 K Ohms Unbalanced

Output Connectors Monitor outputs:

one pair of RCA jacks (stereo) Yes

Signal Indicators Limit:

Yellow LED indicates limiter active condition Yes

EQ Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost

System Limiter On Board DSP Limiting and Tuning
