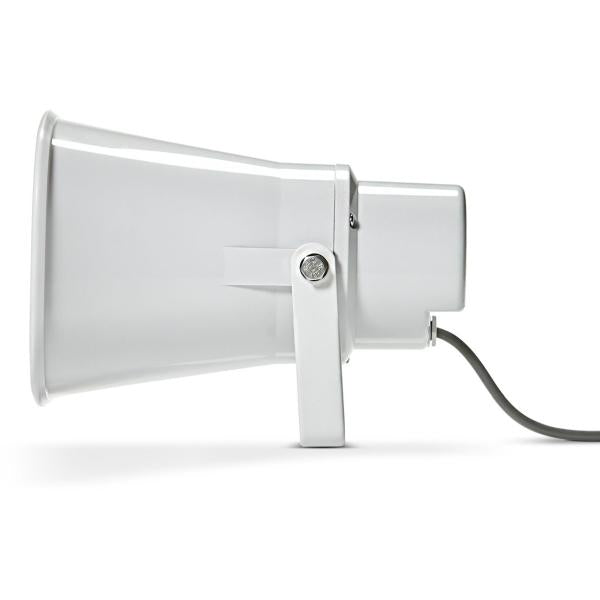

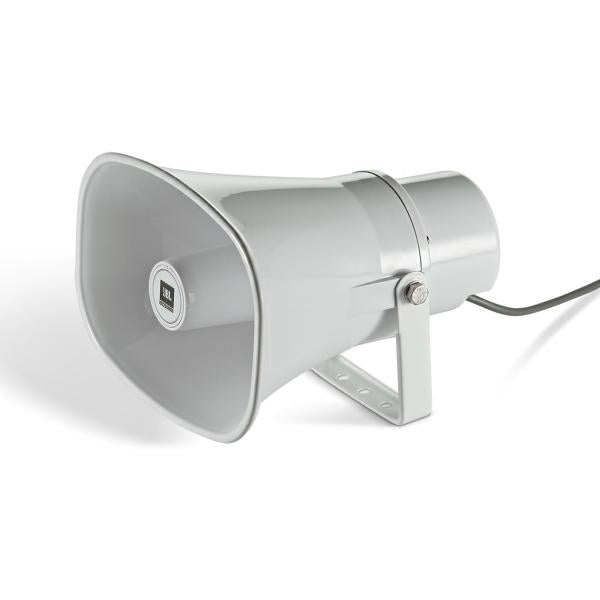

JBL CSS-H15 Paging Horn

JBL CSS-H15 Paging Horn (4-pk) Overview

\nThe Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.\n\n

 Key Features

\n\n

\n
• Excellent voice range clarity for announcement and paging.
\n
• High sensitivity delivers high sound levels with minimal power amplification.
\n
• Wide 70° horizontal by 90° vertical coverage for medium throw applications.
\n
• Phenolic diaphragm driver for outdoor durability and high reliability.
\n
• UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass.
\n
• Built-in high-pass filter enhances reliability by protecting against low frequency damage.
\n
• Highly weather-resistant, with stainless steel bracket and hardware.
\n

\n\n

 Applications

\n\n

\n
• Public Access Areas
\n
• Warehouses
\n
• Factories
\n
• Schools
\n
• Recreational Facilities
\n
• Commercial Buildings
\n
• Distribution Centers
\n
• Civic Centers
\n
• Other Commercial Sound and Protective Signaling Systems
\n

\n\n

Specs

\nSystem\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Frequency Response	-10 dB: 400 Hz to 7.5 kHz (based on average 1 kHz to 6 kHz sensitivity)
Coverage Pattern	70° (H) x 90° (V) (at 2 kHz and averaged 1 kHz to 4 kHz)
High-Pass Filter	Included: Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range
Directivity Factor	10.9 (2 kHz)
Directivity Index	10.4 (2 kHz)
Power Rating	15 W (60 W peak), 100 hours
Sensitivity	1 W, 2.83 V @ 3.3' (1.0 m): 105 dB, average 1 kHz to 6 kHz; 111 dB at 2 kHz
Maximum SPL	3.3' (1.0 m): \n 117 dB continuous average (123 dB peak), 1 kHz to 6 kHz \n 123 dB continuous average (129 dB peak), 2 kHz, 15 W input, 8 Ω setting
Nominal Impedance	15 W / 70 V, NC / 100 V Tap: 333 Ω \n 7.5 W / 70 V, 15 W / 100 V Tap: 667 Ω \n 3.8 W / 70 V, 7.5 W / 100 V Tap: 1333 Ω \n 1.9 W / 70 V, 3.8 W / 100 V Tap: 2666 Ω \n 0.9 W / 100 V, 1.9 W / 100 V Tap: 5332 Ω \n 8 Ω at 8 Ω direct setting

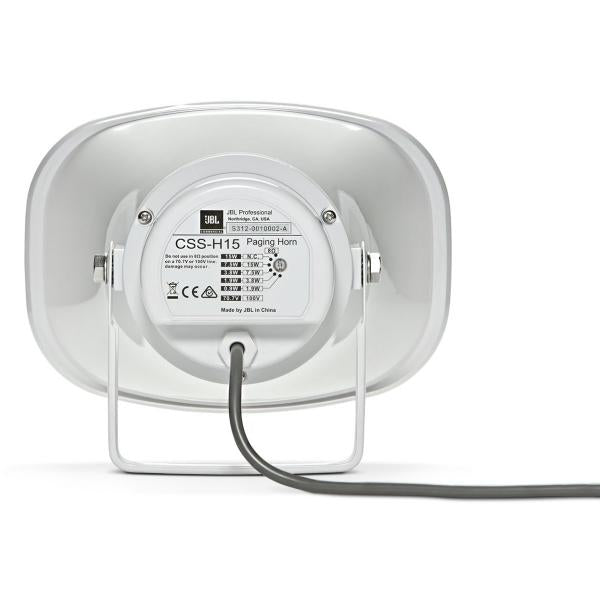

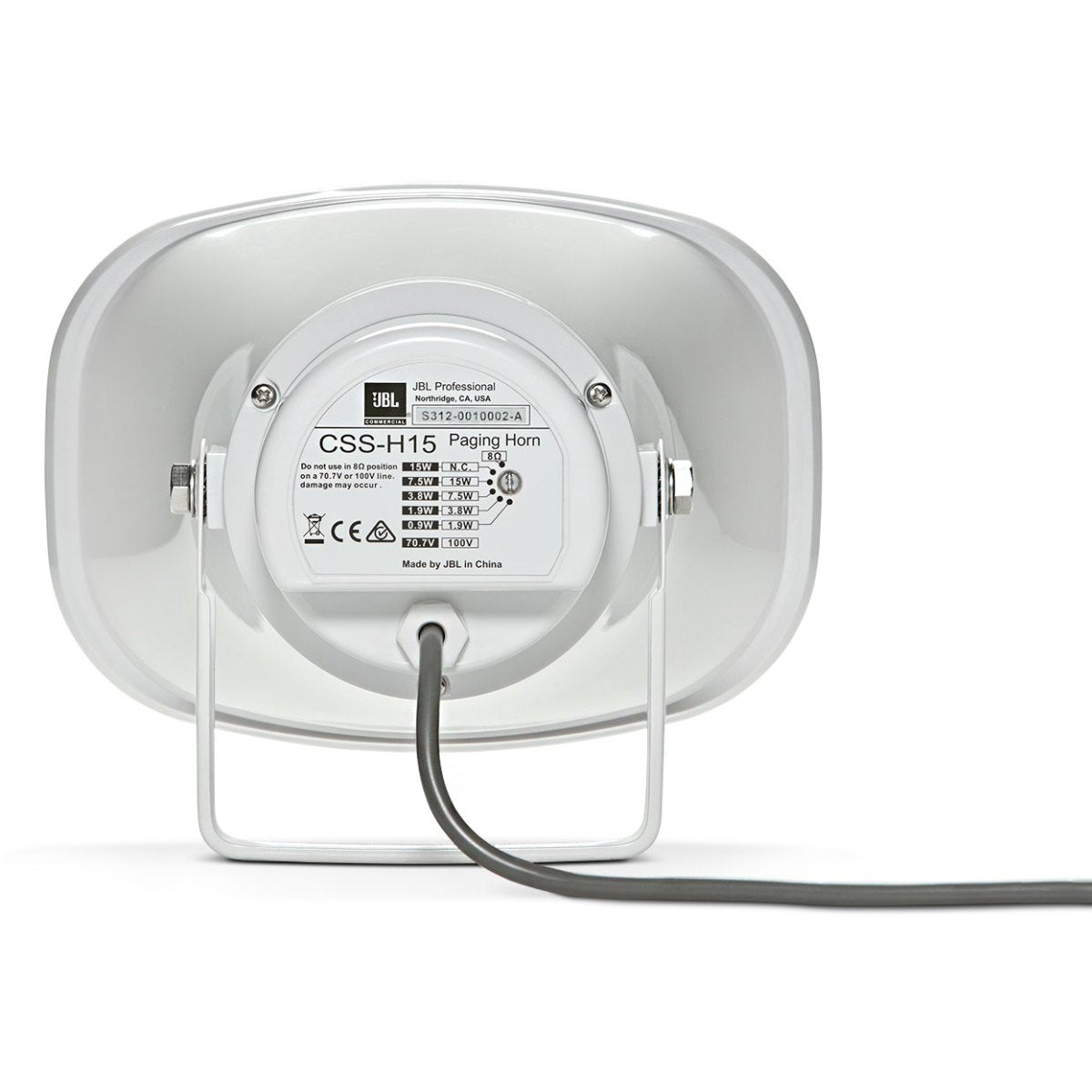

Transformer Taps	70 V: 15 W, 7.5 W, 3.8 W, 1.9 W. 0.9 W \n 100 V: 15 W, 7.5 W, 3.8 W, 1.9 W

\nTransducers\n\n\n \n \n \n \n \n \n

Driver

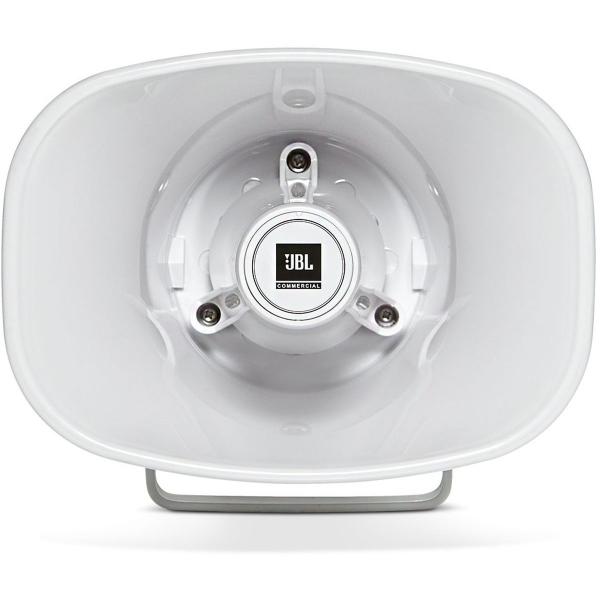

Full-Range: 1.3\" (3.3 cm) diameter with phenolic diaphragm

\nPhysical\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Material	Horn: ABS
Mounting Hardware	Stainless steel powder-coated U-bracket (yoke) with 3 x 0.34\" (0.88 cm) diameter mounting holes; stainless steel exterior hardware
Input Connection Type	12\" (30 cm) pigtail to bare wire; entrance via water-tight fitting \n Wire colors: Red: Positive (+); Black: Negative (-)
Environmental	IP65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware
Safety Agency Approvals	Transformer UL registered per UL1876 \"Isolating Signal and Feedback Transformers for Use in Electronic Equipment\"
Dimensions (H x W x D)	Horn Only: 6.5 x 8.8 x 9.2\" (16.3 x 22.2 x 23.2 cm) \n With Mounting Bracket: 7.1 x 8.8 x 9.2\" (18.1 x 22.2 x 23.2 cm) (depth excludes cable exit)
Weight	3.0 lb (1.4 kg)

\n
