JBL CSMA 280 Mixer/Amplifier

JBL CSMA-280 Overview

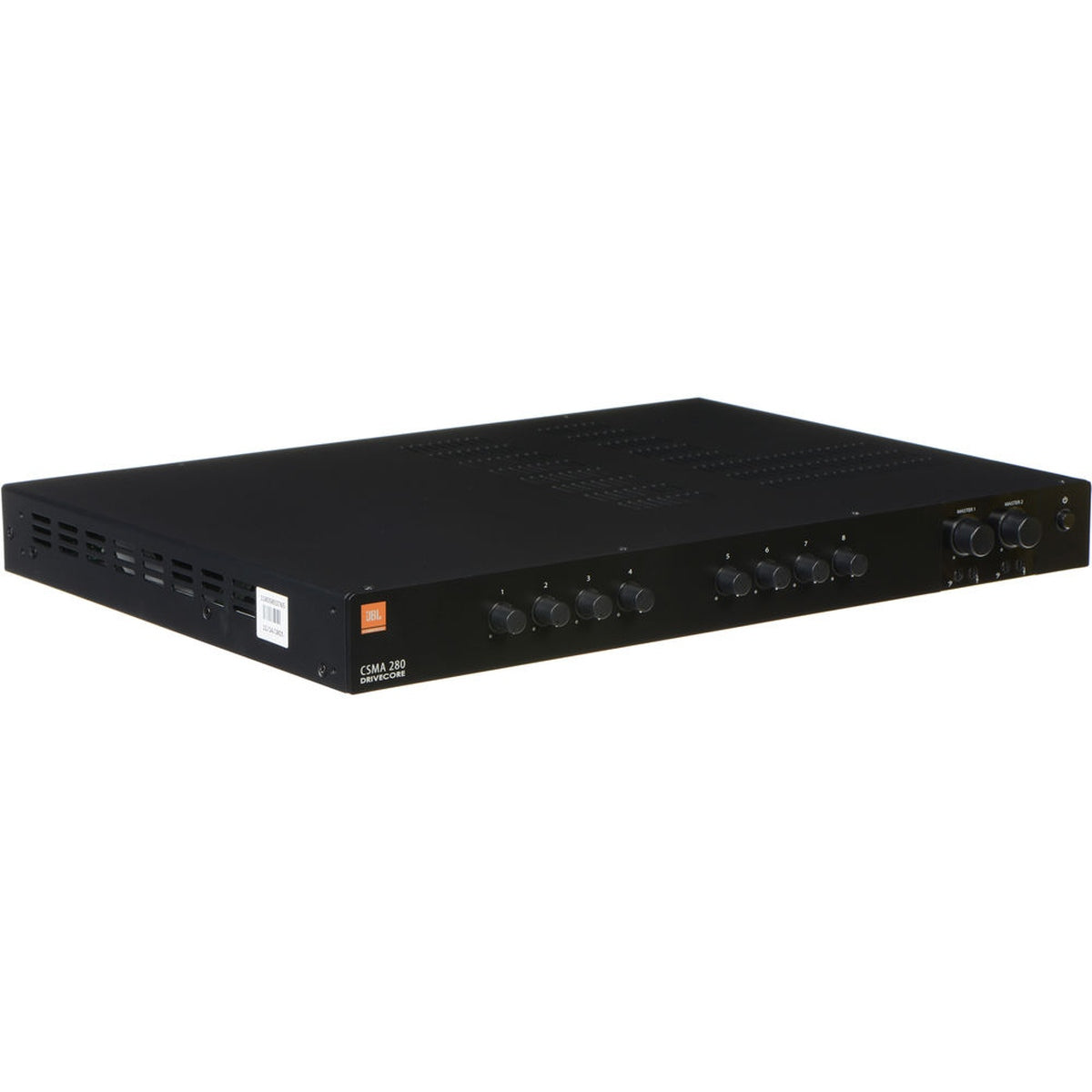

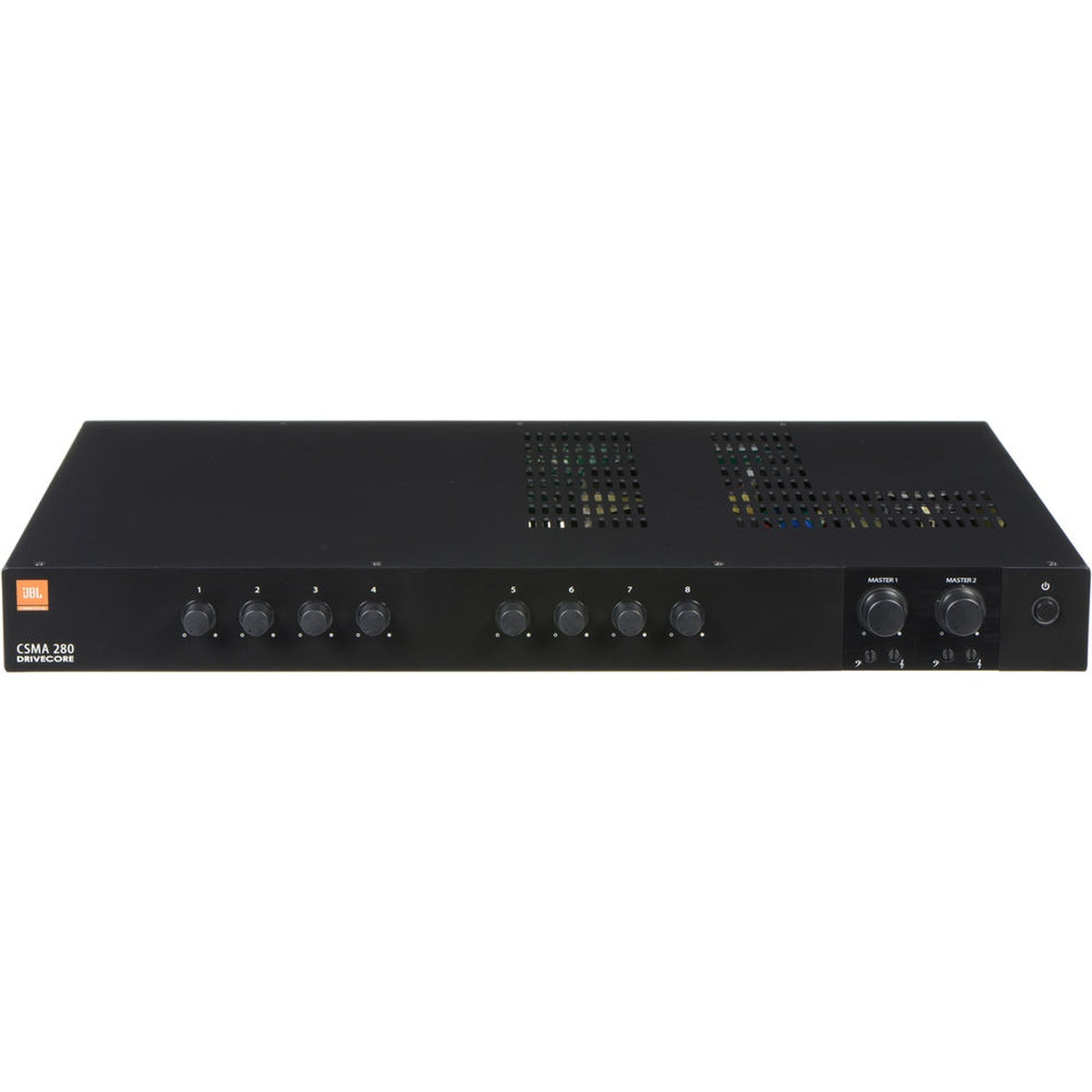

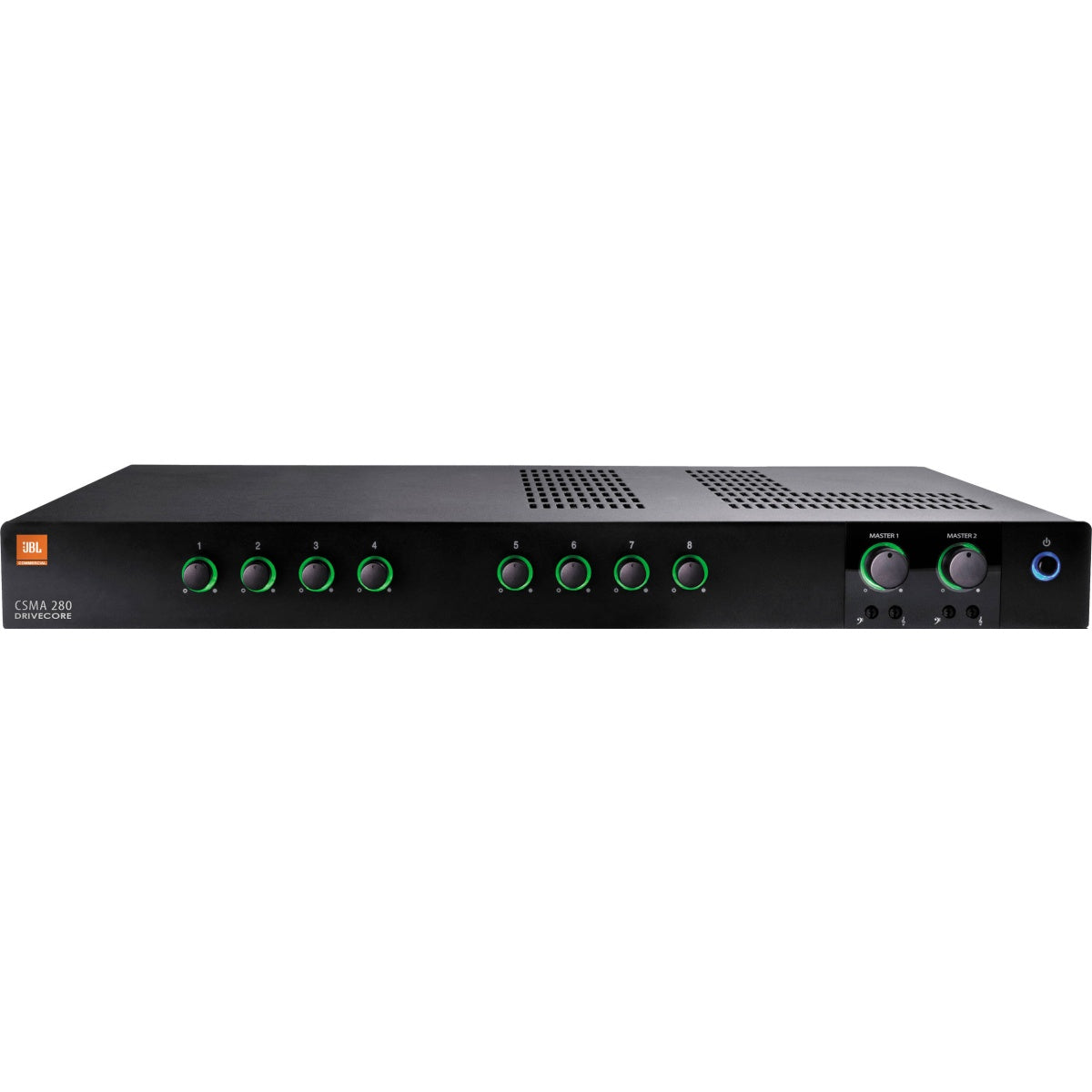

\nDesigned for commercial and industrial use, the CSMA 280 Commercial Series Mixer/Amplifier from JBL is a mixer/amplifier with eight mixer-channel inputs and two output channels. It's capable of reaching 80W of peak power with 10W per channel. The unit's front panel sports volume controls for each channel, as well as two master volume adjustment knobs, two sets of bass and treble controls, and a power switch. The volume controls are illuminated so they can be seen and operated in darkened environments.

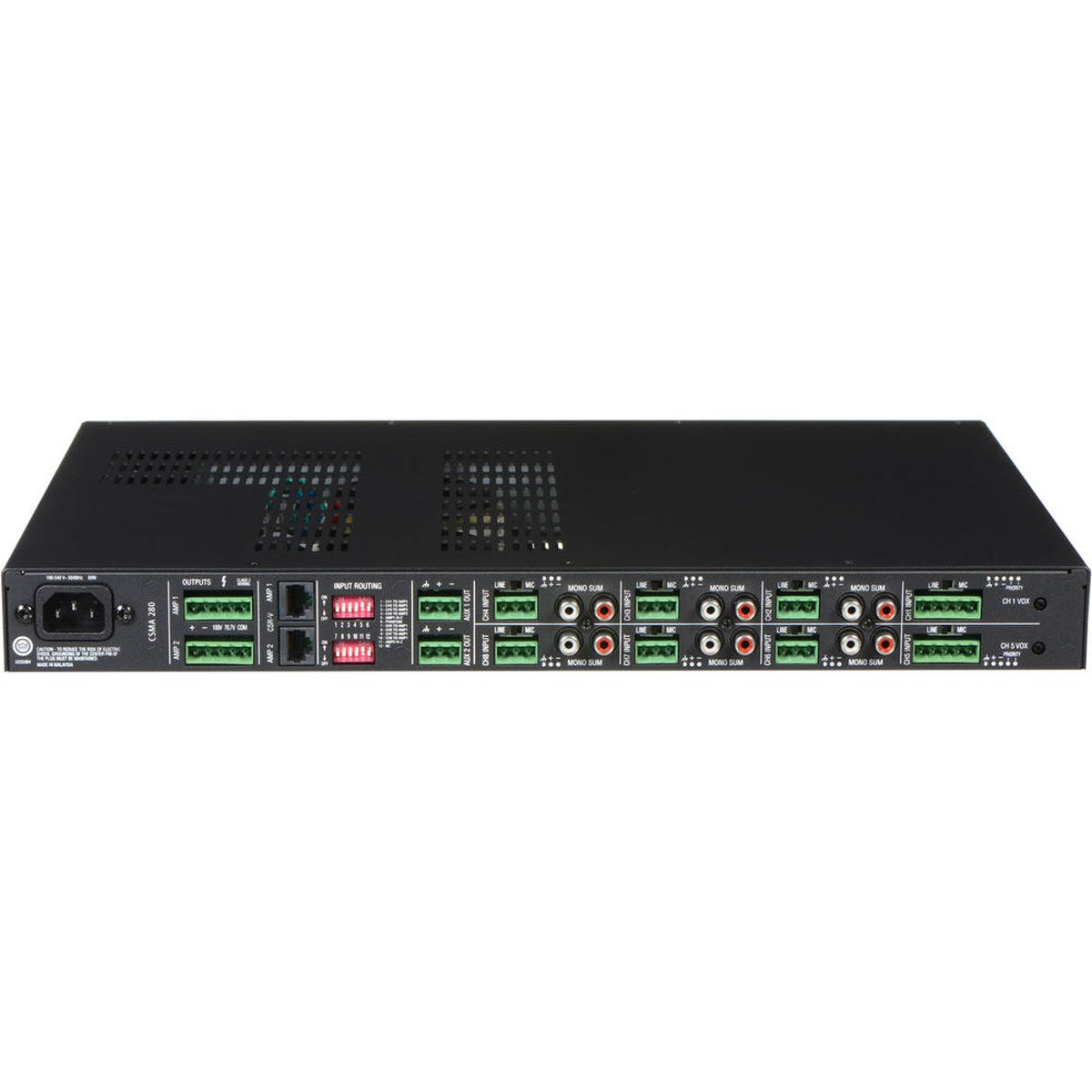

\nThe amplifier, capable of driving both eight and four Ohm loads, can be used with 70V and 100V distributed audio systems without the need for a separate transformer. On its back panel you'll find euroblock connections for mic/line inputs, as well as unbalanced RCA inputs, speaker connections, dip switches for input routing, and more. The unit is also equipped with two RJ45 connectors for use with JBL CSR-V in-wall volume controls (available separately).
\nThis Commercial Series mixer/amplifier boasts such features as voice activating ducking (useful for paging over background music), priority muting for channels one and five, and a sleep mode which automatically powers down the unit when no audible signal has been received for longer than 30 minutes. Also, with two auxiliary outputs, you may connect to an additional amplifier, though the master volume and tone controls will have no bearing on the resulting signal.\n

Specs

\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Maximum Output Power	80 W per channel into 4 Ohms or 8 Ohms, 1 kHz, ≤ 0.5% THD
Insertion Loss	1 dB maximum for 70 and 100 V outputs
Continuous Power	10 W per channel
Line Output Level	5.0 V RMS into 10 kOhms
Input Sensitivity	To obtain full rated power at 8 Ohms (or 5 VRMS to line output) \n Mic Input: 3 mV RMS \n Line Input: 775 mV RMS \n RCA Input: 300 mV RMS
Number of Channels	Input: 8 \n Output: 2
Frequency Response	Measured at 2.83 V RMS into rated load impedance at any output \n 4/8 Ohms Output: 20 Hz - 20 kHz, ±2 dB \n 70 V/100 V Outputs: 80 Hz - 15 kHz ±2 dB \n Line Out: 20 Hz - 20 kHz, ±1 dB
Total Harmonic Distortion (THD)	Measured at 2.83 V RMS into rated load impedance at any output \n Power Amplifier Output: Line Output: 0.05% typical
Signal to Noise Ratio	> 90 dB
Nominal Input Impedance	Mic: 400 Ohms \n Line: 20 kOhms (balanced) \n RCA: 50 kOhms
Minimum Load Impedance	Low Impedance Output: 4 Ohms \n 70 V Output: 60 Ohms \n 100 V Output: 120 Ohms
Crosstalk	-70 dB @ 1 kHz
Controls	Front Panel: \n 8 x Input level rotary knobs \n 2 x Output volume-attenuating knobs \n 1 x Power switch \n 2 x Bass potentiometers \n 2 x Treble potentiometers \n \n Rear Panel: \n 2 x Input-routing dip switches (including phantom and Hi-Z switches) \n 8 x Mic/Line selector switch \n 2 x Vox adjustment switches
Indicators	Front Panel: \n 8 x Input signal presence ring, green \n 2 x Output volume ring, green \n 1 x Power switch ring, green/blue
Connectors	Rear Panel: \n 1 x IEC power input \n 2 x Aux out connection points \n 6 x 3-pin euroblock connectors \n 2 x 5-pin euroblock connectors \n 6 x Dual RCA input connectors \n 2 x RJ45, remote volume
Operating Temperature / Humidity	32 to 95°F / 0 to 35°C, 95% RH (non-condensing)
Storage Temperature	-4 to 185°F / -20 to 85°C
Phantom Power	27 VDC
AC Input	100-240 VAC, 50/60 Hz
Dimensions (W x D x H)	17.2 x 11.9 x 1.7\" / 436.9 x 302.3 x 43.2 mm
Weight	Approximately 11.9 lb / 5.4 kg

\nPackaging Info\n\n\n \n \n \n \n \n \n \n \n \n \n

Package Weight	16 lb
Box Dimensions (LxWxH)	20.5 x 16.3 x 5.2\"
