JBL CSA 180Z Audio Amplifier (1 x 80W) (CSA180Z)

JBL 180Z Overview

The JBL CSA 180Z Audio Amplifier (1x 80W) provides a compact and powerful amplification solution for installed applications. The unit utilizes a universal switch-mode power supply and Crown's DriveCore technology to deliver reliable and efficient sound amplification.

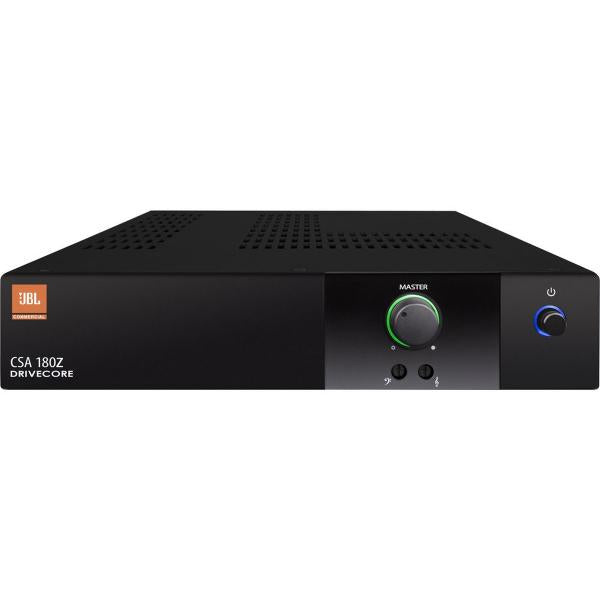

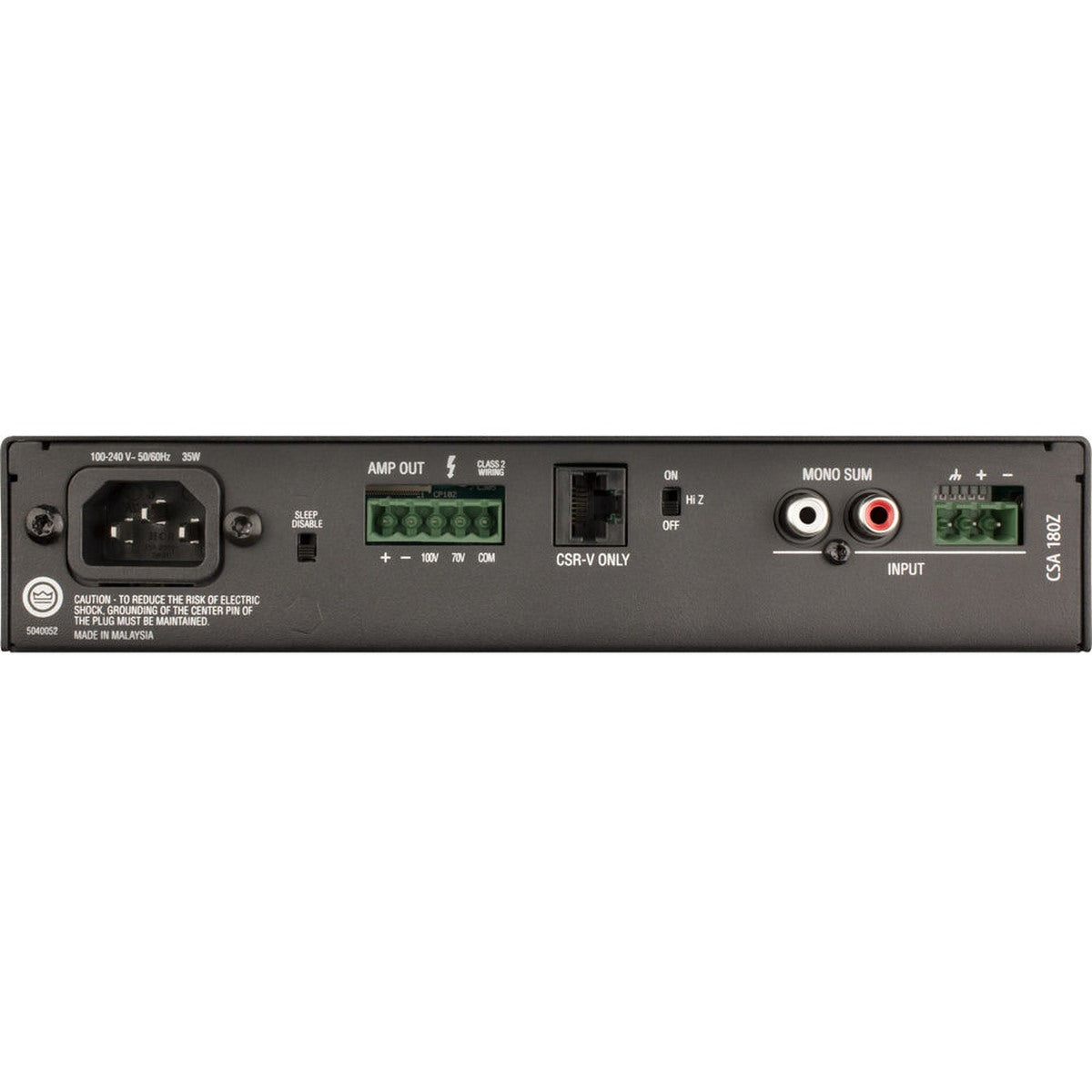

The unit supports both 70 and 100V installations out of the box. It includes 1 x RJ45 connector for use with the company's CSR-V in-wall volume controls. Inputs are provided by mono sum RCA connectors and Euroblock. Outputs are provided by Euroblock connectors. Illuminated knobs provide visual feedback, and the universal power supply allows the amplifier to accept AC voltages from 100 to 240 VAC, 50/60 Hz. The amp also fulfills HARMAN's GreenEdge environmental initiative.

Specs

Power Amplifier

Number of Channels	1
Power Rating	4 Ohms / 8 Ohms: 80 W (1 kHz, 0.5% THD)
Load Impedance / Voltage	4 Ohms (Minimum) 70 / 100 V

Performance

Frequency Response	20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Input Sensitivity	1.4 Vrms
Input Impedance	Euroblock: 20 Kilohms (Balanced) RCA: 50 Kilohms
SNR	>100 dB
THD
Crosstalk	>70 dB

Signal Processing

EQ

2-Band EQ

Connectivity

I/O	1 x 2RCA Summed-Mono Input 1 x Euroblock Input 1 x Euroblock Output
Digital I/O	1 x RJ45 (Control)

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Operating Temperature	32 to 95°F / 0 to 35°C
Storage Temperature	-4 to 185°F / -20 to 85°C
Dimensions	8.6 x 11.9 x 1.7" / 218.5 x 303.4 x 43.3 mm
Weight	6.9 lb / 3.1 kg

Packaging Info

Package Weight	10.4 lb
Box Dimensions (LxWxH)	16 x 12 x 5"



Spec Sheet
