JBL

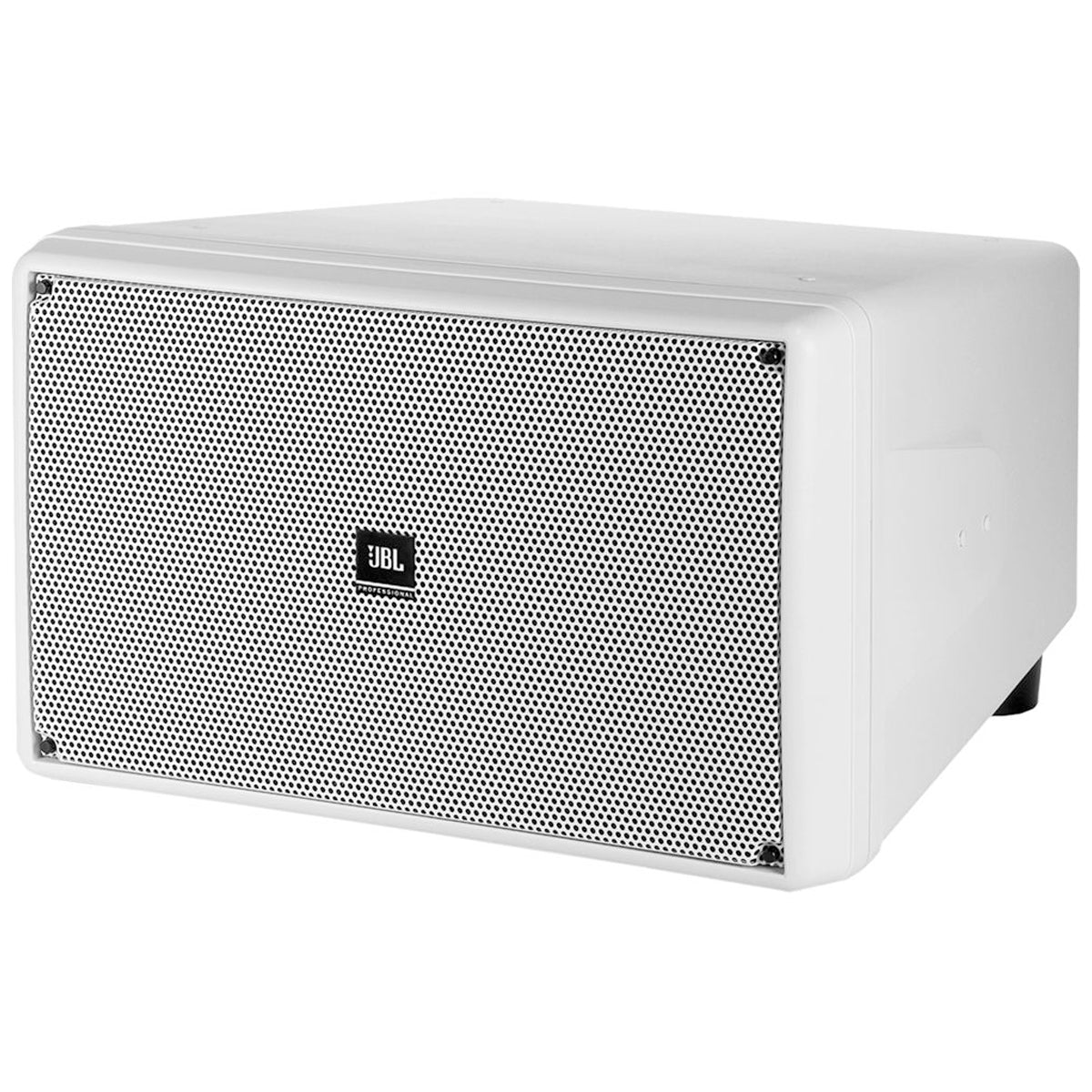

JBL Control SB2210 10\" Subwoofer White
JBL Control SB2210 10\" Subwoofer White
Regular price
$7,297.00 TTD
Regular price
$0.00 TTD
Sale price
$7,297.00 TTD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Control SB2210 provides low frequency reinforcement for a wide variety of sound system applications. Its compact size, high output and outdoor capable design makes it one of the most versatile subwoofers in the installation market
\n
\n 2 x 250 mm (10 in.) Woven Fiberglass Cone LF Drivers
\n 500 Watts Power handling
\n Frequency Response Down to 38 Hz
\n 13 x M6 Insert Points Including Inserts for Optional U-Bracket
\n Compact, Low Profile Design
\n
\nFrequency Range (-10dB) 38 Hz - 500 Hz
\nFrequency Response (-3 dB) 48 Hz - 95 Hz
\nPower Rating 500W (2000W peak) Continuous Pink Noise (2 hrs) 1000W Continuous Program(2 hrs) 400W (1600W peak) Continuous Pink Noise (100 hrs)
\nMaximum Input Voltage 60.0VRMS (2 hrs), 120V peak
\nSensitivity 95 dB, 1W @ 1m in half-space (2π loading, average 50 – 90 Hz)
\nMaximum SPL (1m) 122 dB in half-space (2π loading)
\nImpedance 8Ω
\nMinimum Impedance 7.2Ω at 160 Hz
\nRecommended Filter 45 Hz, 24 dB/oct high-pass filter
\nDrivers Two 250 mm (10 inch) diameter LF drivers, long-excursion design, woven fiberglass cone, highly damped butyl rubber surround, linear suspension spider , high temperature anodized aluminum voice coil former, high-temp voice coil wire and coil adhesive, FEA optimized motor construction, aluminum conductive ring.
\nEnclosure High Impact PolyStyrene (HIPS) w/ 10% glass fill and internal 8 mm polyurethane co-mold, painted with highly-UV-resistant paint on white (-WH) model for maximum UV fade resistance.
\nGrille Thermoset composite coated steel, zinc-plated, 3-layer foam backing.
\nOutdoor Capability IP-45 rating per IEC529 when installed with included MTC-PC2 terminal panel cover. Exceeds MilSpec 810 for humidity, salt spray, temperature & UV. Passes Mil-STd-202F for salt spray.
\nInput Connectors Screw-down terminal strip, zinc plated copper base, nickel-plated metal screws/washers. Accepts up to 9 mm outside, 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5mm2). Included MTC-PC2 and optional MTC-PC3 protective covers available to provide sealed entrance for additional weather protection.
\nSafety Agency ROHS-compliant. Optional MTC-SBT300 transformer is UL recognized per UL1876.
\nColors Black or white (-WH)
\nDimensions (H x W x D) 355 x 590 x 570 mm (14 x 23.3 x 22.5 in.)
\nNet Weight (each) 23.31 kg (51.4 lb)
\nShipping Weight 25.85 kg (57.0 lb)
\nIncluded Accessories 1 pc MTC-PC2 input panel cover, 4 pcs floor standing feet 4 pcs beveled washers.
\nOptional Accessories MTC-210UB (&-WH) U-BracketMTC-SBT300 70V/100V Transformer, 300W multi-tap, installs onto inside of back input panel using included 4 studs.Transformer Taps:70V: 300W, 150W, 75W, 38W100V: 300W, 150W, 75W
\nMounting Hardware Optional U-bracket, insert points on top & bottom.
