JBL Control 28-1 Indoor/Outdoor Loudspeaker

JBL Control 28-1 Indoor/Outdoor Loudspeaker Overview

\nHigh Output Indoor/Outdoor Background/Foreground Speaker
\nThe Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors, This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.\n

Key Features

\n\n

\n
• Components:
  \n • 8” woofer with woven fiberglass cone
  \n • 1” PEI diaphragm tweeter with fluid cooling
\n
• Contemporary, high-design appearance
\n
• Built-in InvisiBall® mounting hardware*, plus available U-bracket
\n
• Weather resistant enclosure and transducers
\n
• Wide 100° x 100° coverage
\n
• 120 Watt power handling (240 Watt program) in direct 8Ω setting, plus built-in 60 Watt 70V/100V multi-tap transformer.
\n
• High fidelity sound character with broad frequency response of 45 Hz – 20 kHz.
\n

\n\n

Specs

\nSpeaker\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Active or Passive	Passive
Speaker Configuration	2-Way
Power Handling	For 100 Hours: \n 90 W RMS \n 360 W Peak \n For 2 Hours: \n 240 W Program \n 120 W RMS \n 480 W Peak

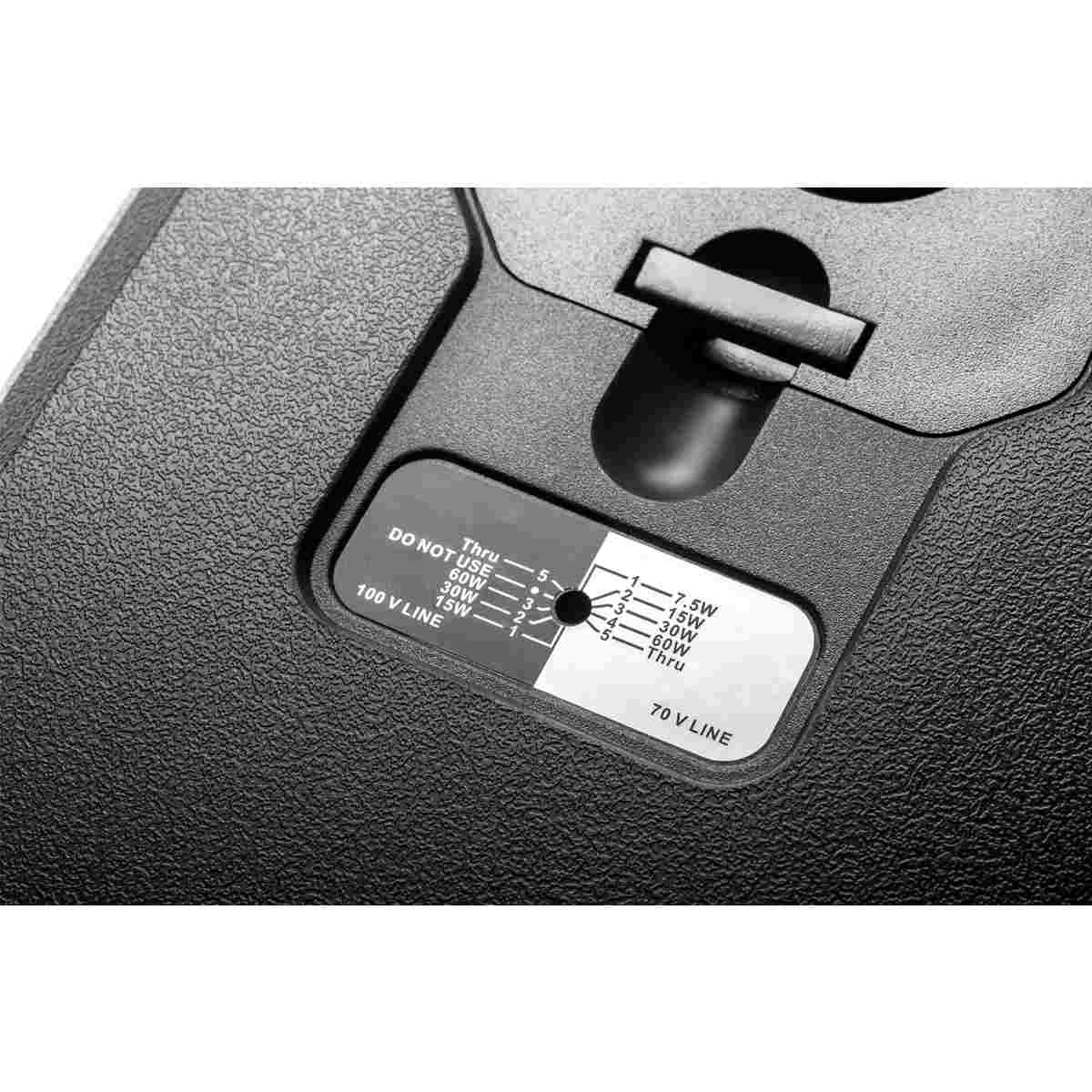

Constant Voltage / Transformer Taps	100 V: \n 60 / 30 / 15 W or 8 Ohms Bypass \n 70 V: \n 60 / 30 / 15 / 7.5 W or 8 Ohms Bypass
Impedance	8 Ohms (Thru Setting)

\nDrivers\n\n\n \n \n \n \n \n \n \n \n \n \n

HF Driver	1\" / 25 mm PEI Tweeter
LF Driver	8\" / 20 cm Fiberglass Woofer

\nPerformance\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Frequency Response	45 Hz to 20 kHz ±10 dB \n 62 Hz to 16 kHz ±3 dB
Sensitivity	91 dB
Coverage Angle	100° H x 100° V
Directivity	7.3 (Directivity/Q Factor) \n 8.3 dB (Directivity Index)
Crossover	Low-Pass: \n 12 dB/Octave \n High-Pass: \n 6 dB/Octave
Recommended High-Pass Filter	15 / 7.5 W, Low-Z: \n 45 Hz, 24 dB/Octave \n 30 W: \n 55 Hz, 24 dB/Octave \n 60 W: \n 65 Hz, 24 dB/Octave
Maximum Input Voltage	27.5 V RMS \n 55 V Peak
Transformer Insertion Loss

\nConnectivity\n\n\n \n \n \n \n \n \n \n \n \n \n

I/O Connectors	Screw Terminal
Maximum Wire Gauge	12 AWG / 2.5 mm

\nEnvironmental\n\n\n \n \n \n \n \n \n \n \n \n \n

Certifications	RoHS, UL, as per Manufacturer
IP Rating	IP44

\nPhysical\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Color	Black
Construction Material	High-Impact Polystyrene, Metal Grille
Dimensions	15.2 x 11.1 x 8.6\" / 386 x 282 x 219 mm
Weight	15 lb / 6.8 kg

\nPackaging Info\n\n\n \n \n \n \n \n \n \n \n \n \n

Package Weight	34.5 lb
Box Dimensions (LxWxH)	22 x 17 x 13.54\"

\n
