JBL Control 16C/T 2-Way 6.5\" Coaxial Ceiling Loudspeakers (pair white )

\nJBL Control 16C/T 2-Way 6.5\" Coaxial Ceiling Loudspeakers Overview

\nTwo-Way 6.5\" Coaxial Ceiling Loudspeaker

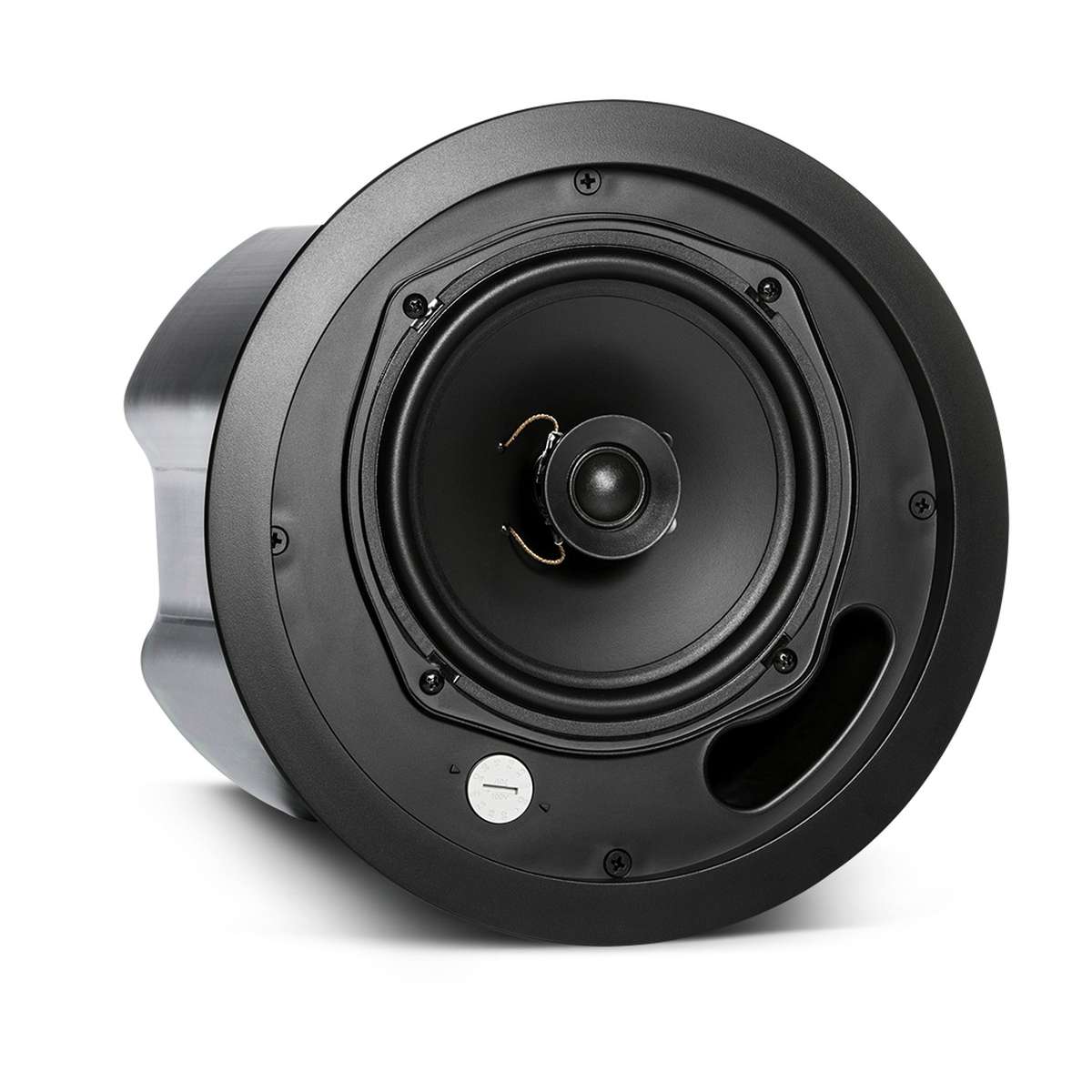

\nControl 16C/T is a full-range ceiling speaker consisting of a 165 mm (6.5 inch) high tech cone driver and a 19mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blindmount backcan for quick and easy installation.\n

Features

\n\n

\n
• Components:
  \n • 165 mm (6.5 in) high output driver with polypropylene cone and butyl rubber surround
  \n • 19 mm (0.75 in) soft-dome liquid-cooled tweeter
\n
• Blind-mount backcan for quick and easy install
\n
• Dual conduit/cable clamps
\n
• Combined 70V/100V and low impedance direct operation
  \n •50 Watts at 8Ω nominal setting
  \n • 30W multi-tap at 70V/100V
\n
• 62 Hz – 20 kHz bandwidth with wide 110° coverage
\n
• High 91 dB sensitivity for high maximum SPL
\n

\n\n

Specs

\nSystem\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Frequency Range (-10 dB)	62 Hz – 20 kHz
Frequency Response (±3 dB)	96 Hz – 15 kHz
Power Capacity (at low-Z)	100W Continuous Program Power \n 50W Continuous Pink Noise
Nominal Sensitivity	91 dB
Rated Maximum SPL	108 dB @ 1 m (3.3 ft) average, 116 dB peak
Nominal Impedance	8 ohms (in direct/bypass 8Ω setting)
Dimensions	253 mm diameter x 225 mm depth from back of \n baffle (10.0 in diameter x 8.8 in depth)
Net Weight	3.4 kg (7.4 lbs, one speaker)
Shipping Weight	11.2 kg (24.7 lbs, pair in master carton)

\n
\nTransducers\n\n\n \n \n \n \n \n \n \n \n \n \n

LF Driver	165 mm (6.5 inch) with polypropylene cone, butyl \n rubber surround, anodized aluminum voice coil \n former, high-temperature voice coil
HR Driver	19 mm (3/4 in), highly damped and treated \n silk dome, Kapton™ voice coil, liquid cooling, \n wide dispersion waveguide

\n
\nEncloure\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

Input Connector	Removable locking 4-pin connector with screw-down \n terminals; max wire size 12 AWG (2.5 mm2)
Connector Wiring	Pin 1 = + In \n Pin 2 = - In \n Pin 3 = + Loop Thru \n Pin 4 = - Loop Thru
Strain Reliefs	Strain relief for two cables or two flex conduits via \n coupled clamping mechanism

\n
