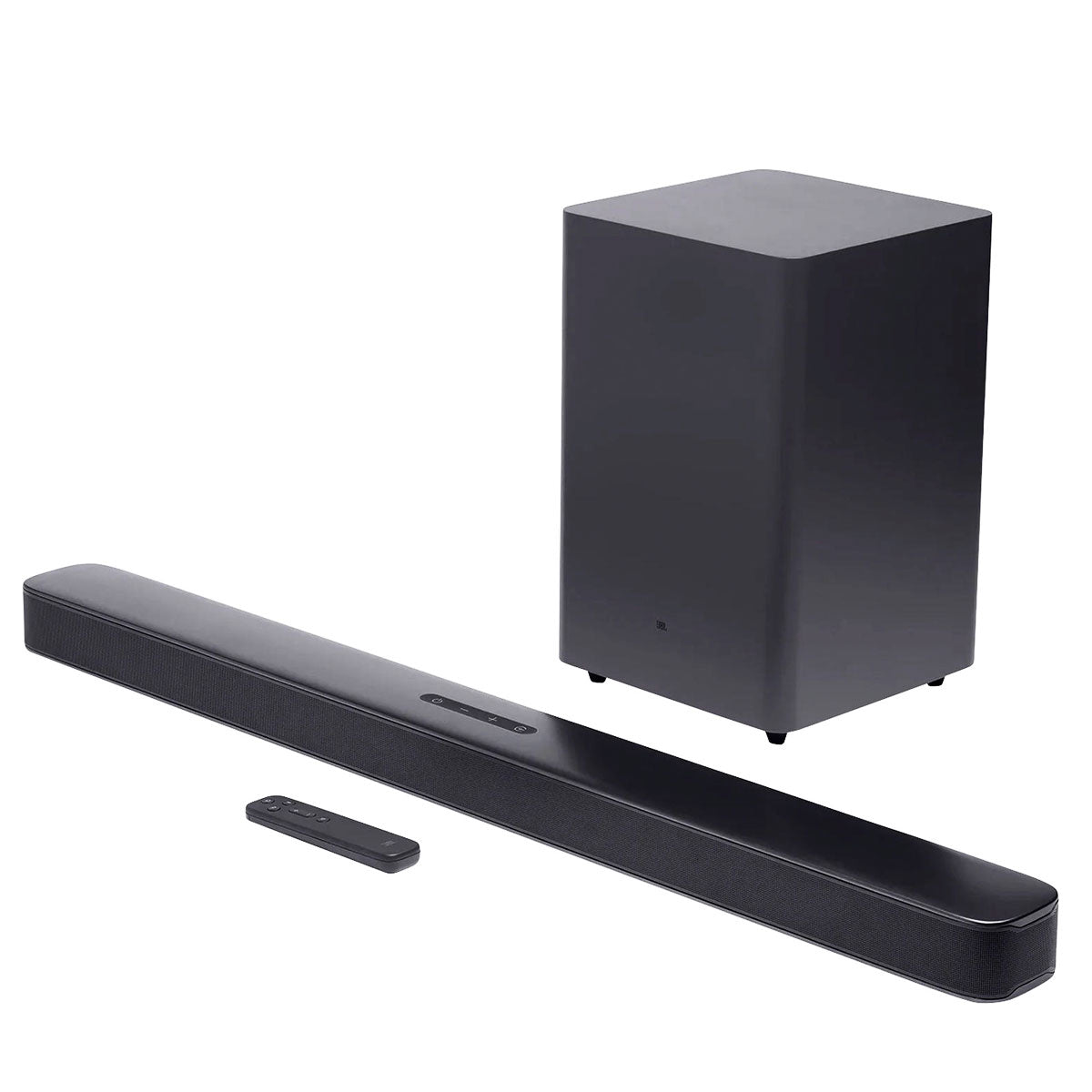

JBL Bar 2.1 Deep Bass 300W 2.1-Channel Soundbar System
Big Thrilling Bass
The elegant JBL BAR 2.1 Deep Bass Soundbar features Bluetooth, Optical, HDMI in and ARC connectivity with both Dolby Digital and JBL Surround Sound modes. Its room-filling 300 Watts of total system power delivers an immersive experience by way of its four powerful full-range drivers, two 1” tweeters, and JBL engineered 6.5” subwoofer. On-board Bluetooth allows you to use the Bar 2.1 for streaming music from your favorite device in addition to its ability to deliver a real JBL theater experience when coupled with your flat panel TV. Its elegant and low profile design will look amazing below your TV.
--
-Bar 2.1 Deep Bass CNTR (Soundbar Unit),
-Bar 2.1 Deep Bass SUB (Subwoofer Unit)
-Power supply 100 - 240V AC, ~ 50/60Hz
-Total speaker power output (Max. @THD 1%) 300W Output power (Max. @THD 1%): Yes 2 x 50W (Soundbar); 200W (Subwoofer) Yes
-Transducer 4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer) -Soundbar and Subwoofer standby power <0.5W
-Operating temperature 0°C - 45°C
-HDMI Video output (With Audio return channel)
-1 HDMI version 1.4 HDMI Video input -1
-Frequency response 40Hz - 20KHz
-Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
-Dimensions (W x H x D): 965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar); 240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer) Weight 2.16 kg (Soundbar); 5.67 kg (Subwoofer)
-Packaging dimensions (W x H x D) 1045 x 310 x 405mm
-Packaging weight (Gross weight) 10.4kg USB port Type A USB rating 5V DC/ 0.5A -Supporting file format mp3, wav MP3 Codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 -Layer 3 MP3 sampling rate 16KHz - 48 KHz MP3 bitrate 80kbps - 320kbps
-WAV sample rate 16KHz - 48 KHz WAV bitrate Up to 3000kbps
-Bluetooth version 4.2 Bluetooth profile A2DP V1.3, AVRCP V1.5
-Bluetooth frequency range 2402MHz-2480MHz
-Bluetooth Max. transmitting power <10dBm (EIRP)
-Modulation Type GFSK, π/4 DQPSK, 8DPSK 5G
-Wireless frequency range 5736.35 - 5820.35MHz 5G
-Max. transmitting power <9dBm (EIRP)
-Modulation Type π/4 DQPSK
-Bar 2.1 Deep Bass SUB (Subwoofer Unit)
-Power supply 100 - 240V AC, ~ 50/60Hz
-Total speaker power output (Max. @THD 1%) 300W Output power (Max. @THD 1%): Yes 2 x 50W (Soundbar); 200W (Subwoofer) Yes
-Transducer 4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer) -Soundbar and Subwoofer standby power <0.5W
-Operating temperature 0°C - 45°C
-HDMI Video output (With Audio return channel)
-1 HDMI version 1.4 HDMI Video input -1
-Frequency response 40Hz - 20KHz
-Audio inputs 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)
-Dimensions (W x H x D): 965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar); 240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer) Weight 2.16 kg (Soundbar); 5.67 kg (Subwoofer)
-Packaging dimensions (W x H x D) 1045 x 310 x 405mm
-Packaging weight (Gross weight) 10.4kg USB port Type A USB rating 5V DC/ 0.5A -Supporting file format mp3, wav MP3 Codec MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 -Layer 3 MP3 sampling rate 16KHz - 48 KHz MP3 bitrate 80kbps - 320kbps
-WAV sample rate 16KHz - 48 KHz WAV bitrate Up to 3000kbps
-Bluetooth version 4.2 Bluetooth profile A2DP V1.3, AVRCP V1.5
-Bluetooth frequency range 2402MHz-2480MHz
-Bluetooth Max. transmitting power <10dBm (EIRP)
-Modulation Type GFSK, π/4 DQPSK, 8DPSK 5G
-Wireless frequency range 5736.35 - 5820.35MHz 5G
-Max. transmitting power <9dBm (EIRP)
-Modulation Type π/4 DQPSK
