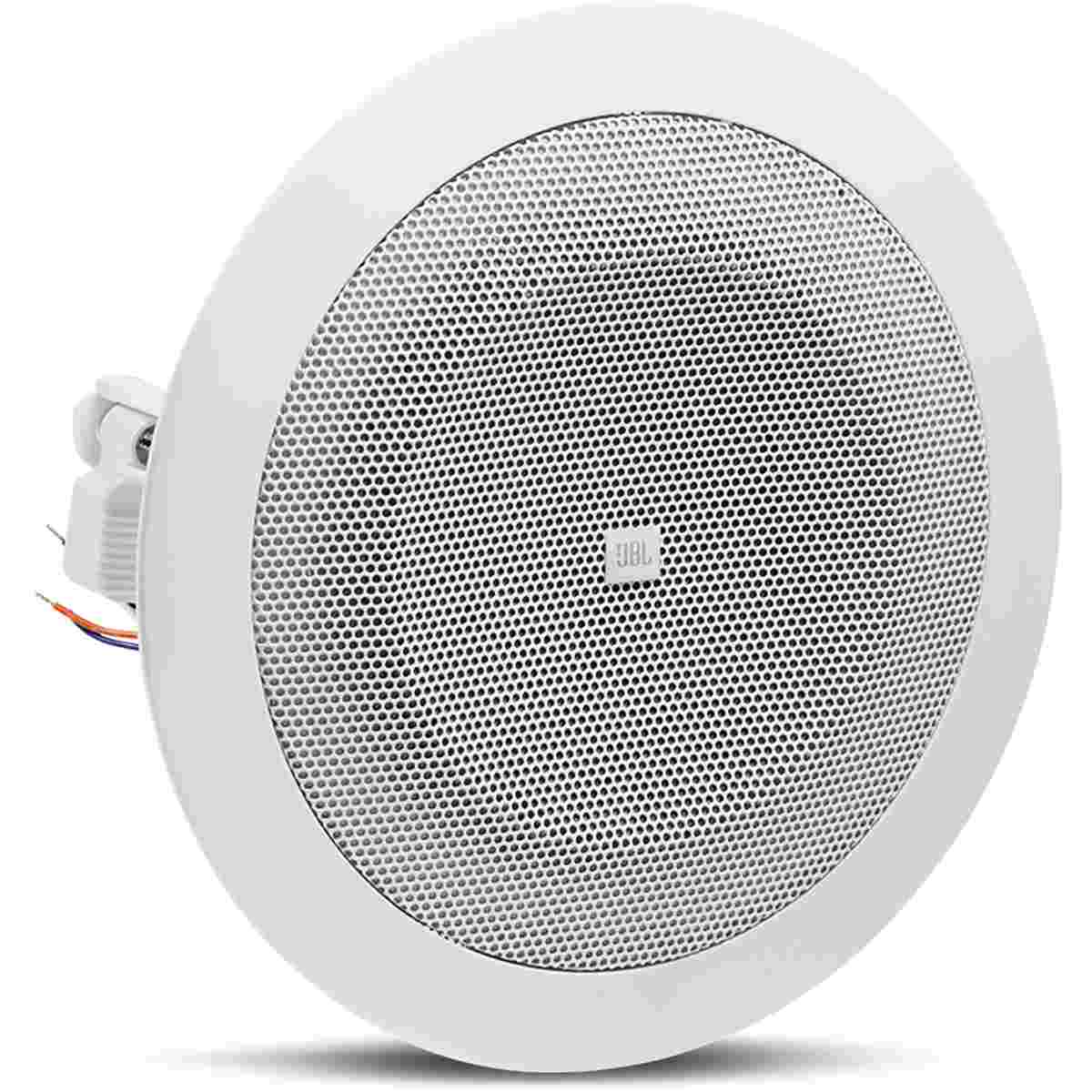

JBL 8124 100mm 4-Inch Full Range Ceiling Loudspeakers (each)

JBL 8124 4-Inch Ceiling Loudspeakers Overview

\n4-inch, Full-range, In-Ceiling Loudspeaker
\nThe 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications. The 8124 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.\n

Features

\n\n

\n
• Clear, High-Fidelity Performance
\n

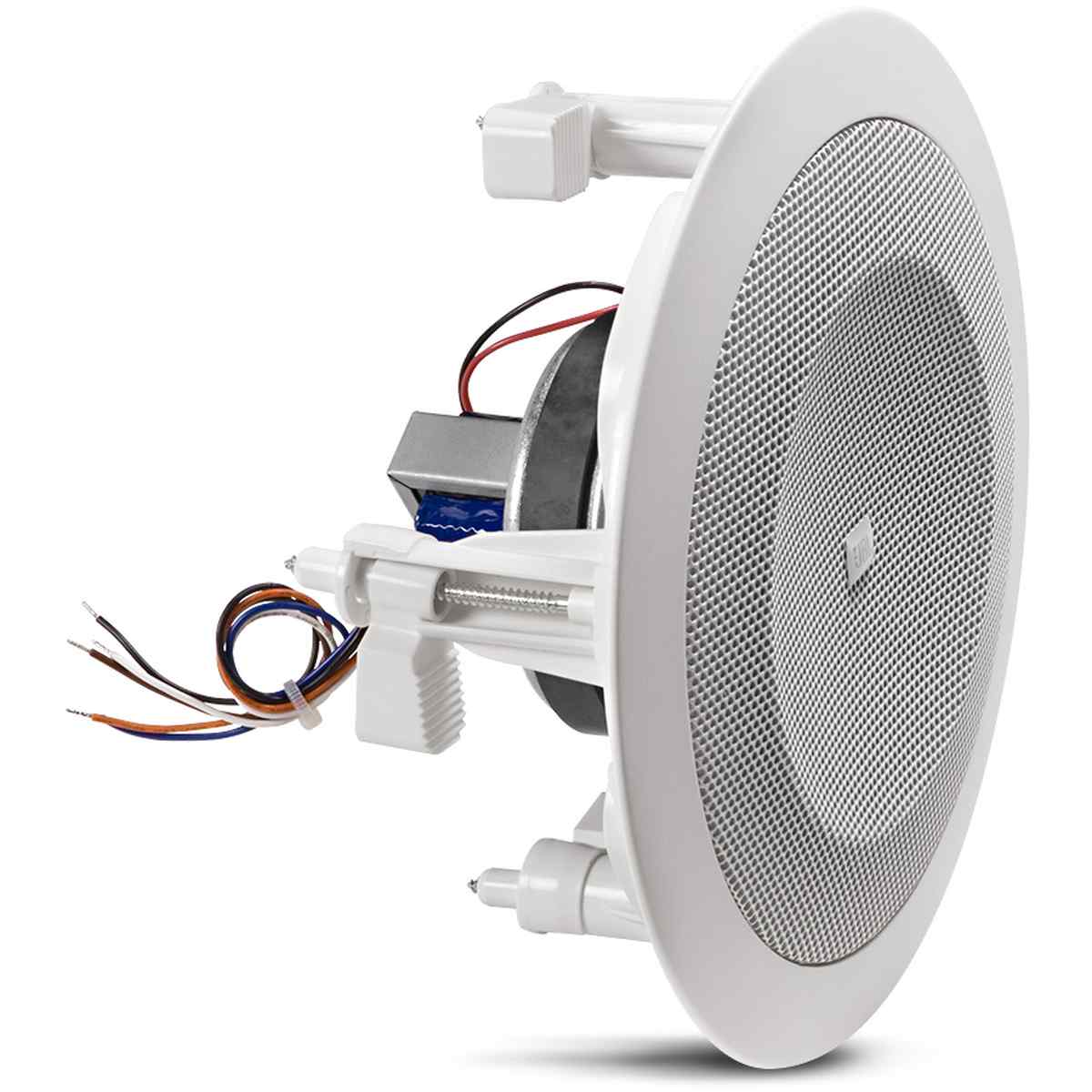

• Dog-ears for easy Blind Mount Installations
\n
• High Sensitivity (93 dB, 1W, 1m) for Maximum Power Efficiency
\n
• 6W Transformer for use of 70V / 100V Distributed Lines
\n

\n\n

Specs

\n\n\n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

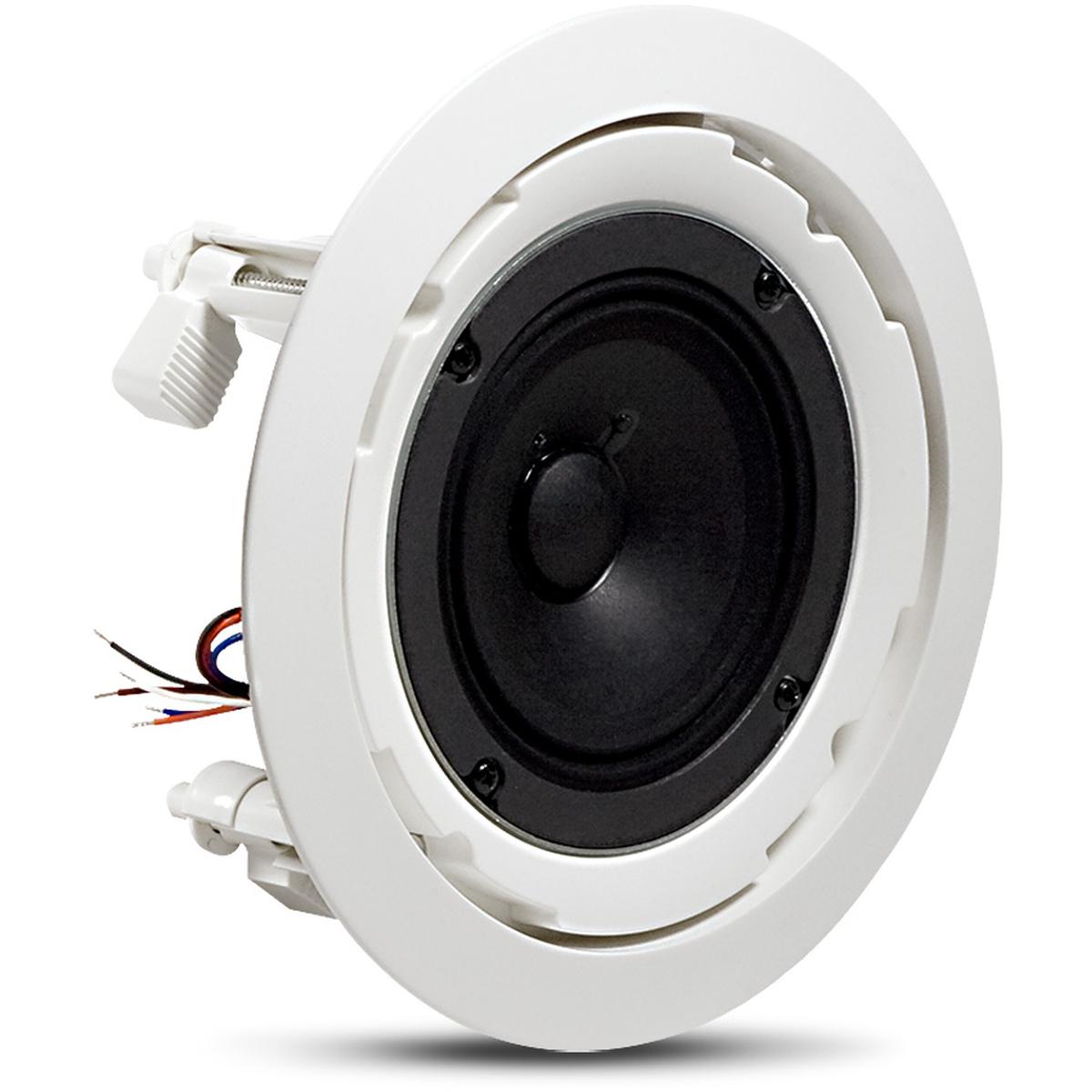

Drivers	4 in (100 mm), Full-range Driver
Frequency Range	60 Hz – 18 kHz
Sensitivity (1W, 1m)	93 dB (1 kHz – 8 kHz)
Coverage Angle	130° conical
Transformer Taps	6W, 3W, 1.5W (0.75W at 70V only)
Input Connectors	Bare wires
Dimensions (Diameter x Depth)	8.1 in (206mm) x 3.5 in (89mm)
Weight	2.5lb (1.2kg)
Included Accessories	Sculpted Grille
Optional Accessories	MTC-8124C C-ring, MTC- Rail tile rails
Power Rating	See transformer taps
Rated Maximum SPL (1m)	101 dB ave. (top 70V/100V tap)
Color	White
Baffle/Rim	Plastic
Ceiling Cutout Size	175 mm diameter (6.9 in)
Plenum Usage	Not intended for use in return air plenums
Backcan	No
