JBL 308P MkII Powered 8\" Two-Way Studio Monitor
JBL 308P MkII Powered 8\" Two-Way Studio Monitor
Couldn't load pickup availability
The JBL 308P MkII powered studio monitor brings legendary JBL performance to every studio, setting a new standard for professional audio reproduction. This next-generation monitor is designed to deliver exceptional sound quality and precise imaging, enhancing the mix capabilities of any modern workspace. Featuring the revolutionary JBL Image Control Waveguide, the 308P MkII ensures stunning detail and accurate dispersion of sound. This waveguide technology provides a wide sweet spot, allowing you to hear your mix with consistency and clarity, even when you're not sitting directly in front of the monitors. You can confidently make critical mixing decisions, knowing that your audio is being reproduced accurately across a broad listening area.
\nThe refined transducers of the 308P MkII further contribute to its outstanding performance. They are designed to deliver extended frequency response and reduced distortion, enabling you to hear every nuance of your audio with exceptional clarity and precision. The result is a more immersive and detailed listening experience, allowing you to make informed decisions during the mixing process. Drawing inspiration from the renowned JBL 7 Series and M2 Master Reference Monitors, the 308P MkII incorporates patented technologies that have been refined over years of research and development. This ensures that you are getting the best-in-class performance and professional-grade audio quality in a more accessible package.
\nNot only does the JBL 308P MkII excel in sound reproduction, but it also features a sleek and modern design that adds a touch of elegance to any studio environment. Its compact size makes it suitable for smaller studios or limited workspace, without compromising on performance.
\nExperience the exceptional mix capabilities and enjoyable listening experience that the JBL 308P MkII powered studio monitor offers. Unlock the full potential of your audio productions with legendary JBL performance, precision imaging, and a wide sweet spot, all at an accessible price point.
\n- Next-generation JBL transducers for optimized transient response and improved linearity
\n- Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
\n- Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range
\n- New Boundary EQ settings compensate for low frequency variants introduced by the environment
\n- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

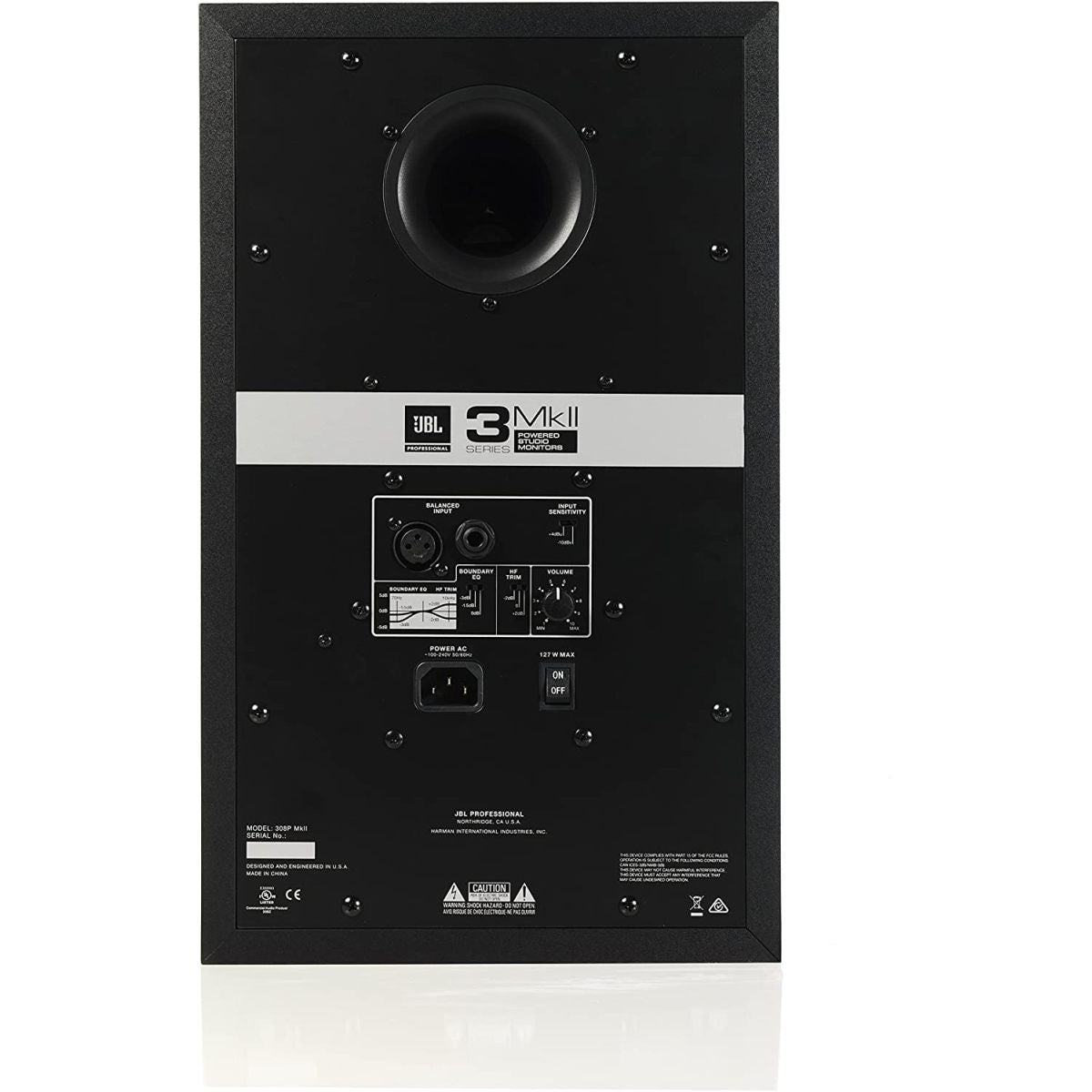

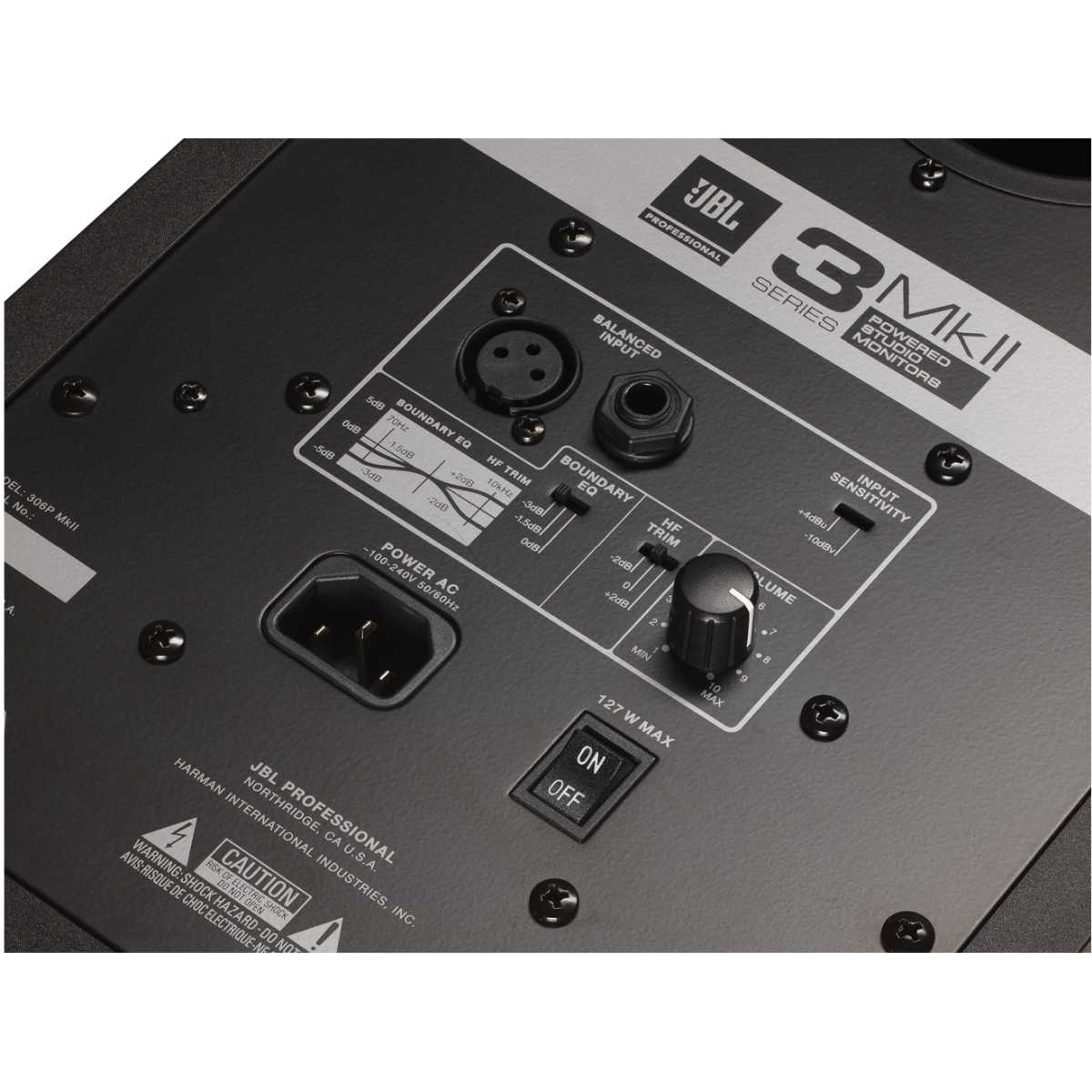

\n- Flexible connectivity with balanced XLR and 1/4\" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
\n- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
\n- Strenuous JBL 100-hour full-power test ensures years of reliability
\n- Sleek, modern design provides a visual upgrade to any studio
\n
\nLF Driver Size
\n 203 mm (8\")
\nHF Driver Size
\n 25 mm (1\")
\nHF Driver Type
\n Soft dome
\nCrossover
\n 1800Hz 4th order acoustic Linkwitz-Riley
\nPower Configuration
\n Bi-amplified
\nHF Driver Power Amp
\n 56 W Class D
\nLF Driver Power Amp
\n 56 W Class D
\nFrequency Response
\n 45Hz – 20kHz (±3dB)
\nFrequency Range
\n 37Hz – 24kHz (-10dB)
\nLow Frequency Extension
\n 37Hz (-10dB)
\nMaximum Continuous SPL
\n 102dB
\nMaximum Peak SPL
\n 112dB
\nMaximum Peak Input Level
\n +6dBV / +20.3dBu (-10dBV / +4dBu)
\nSystem Distortion Criteria
\n <10% THD at maximum output with full compressor / limiter engagement
\nElectrical Distortion Criteria
\n 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
\nSignal to Noise Ratio
\n 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
\nCoverage Pattern
\n 120° x 90° (horizontal x vertical)
\nHF Trim Control
\n -2dB, 0dB, +2dB
\nBoundary EQ
\n LF Shelf @ 50Hz
\nAC Input Voltage
\n 100 – 240VAC (±10%), 50 / 60Hz
