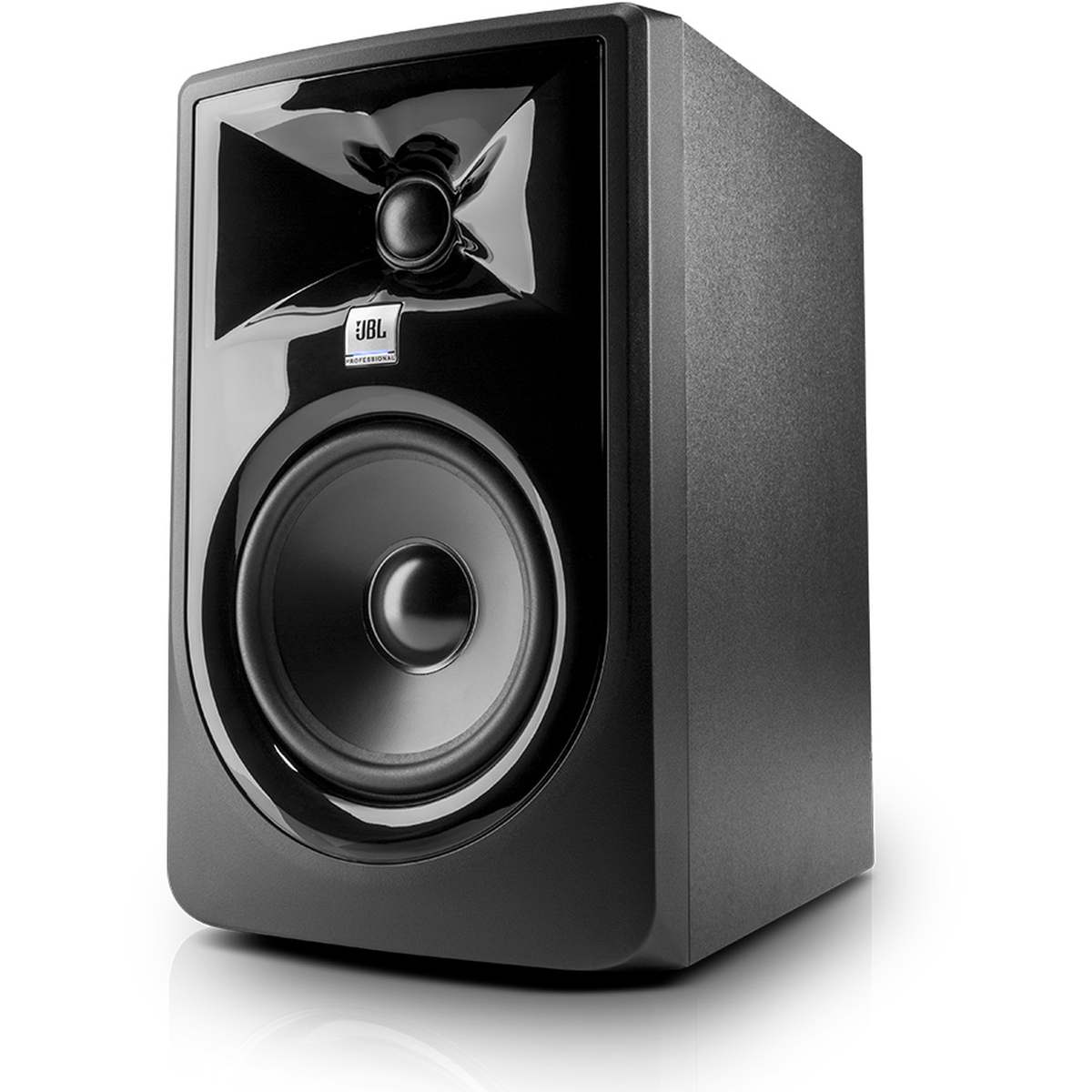

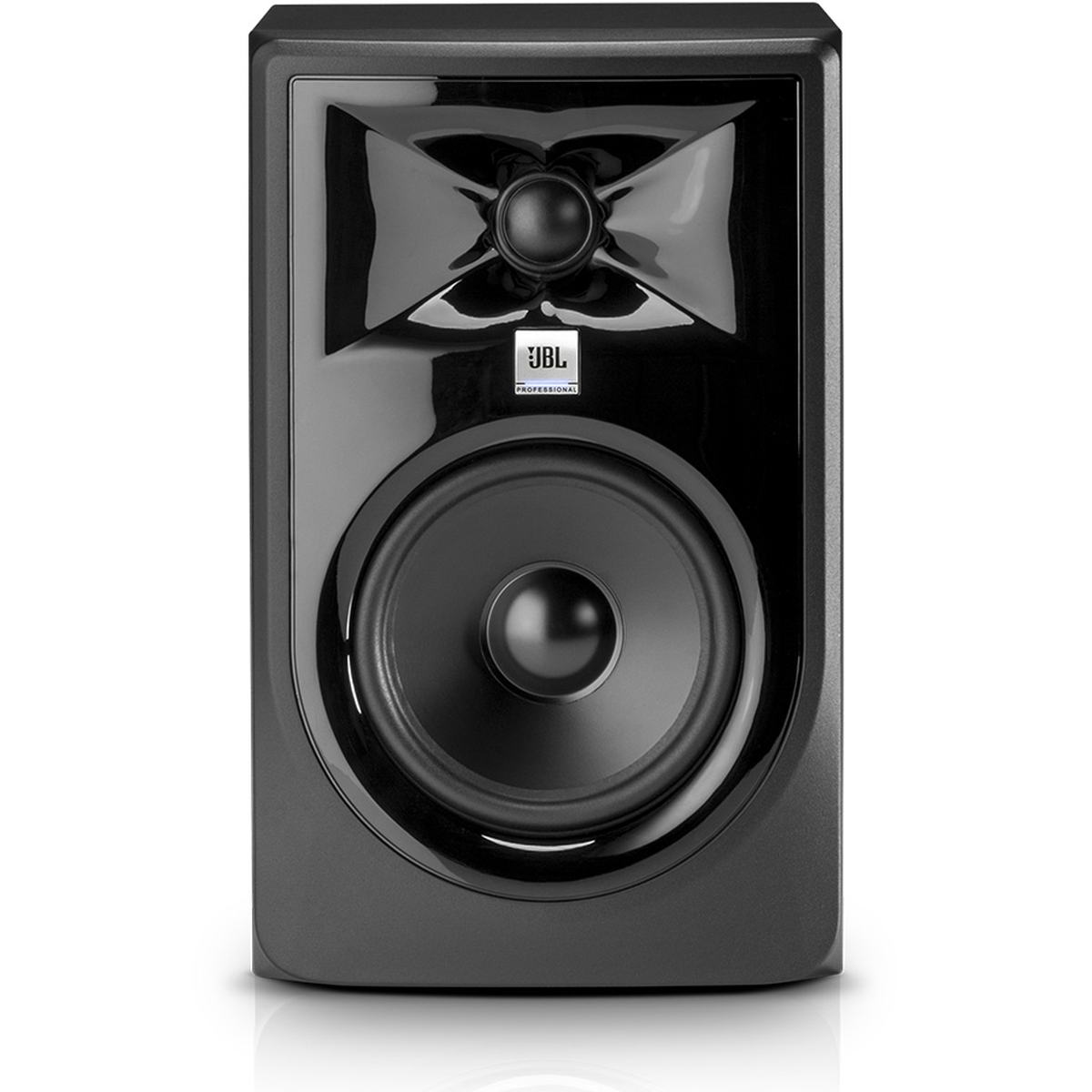

JBL 306P MkII - Powered 6.5" Two-Way Studio Monitor

$2,100.00

Quantity

Tags: 306P MKII jbl studio monitors

The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot

Next-generation JBL transducers for optimized transient response and improved linearity

Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels

Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range

New Boundary EQ settings compensate for low frequency variants introduced by the environment

HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

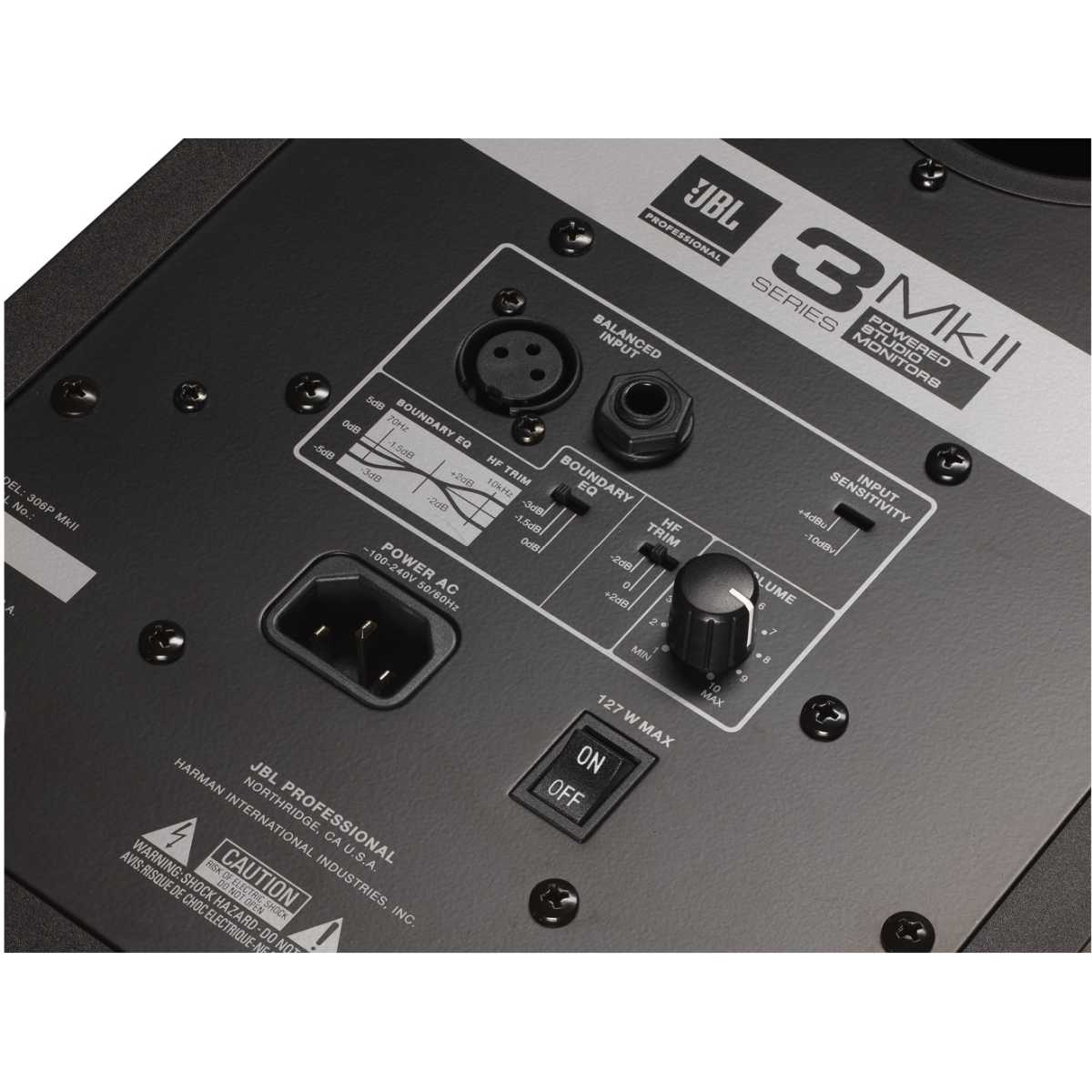

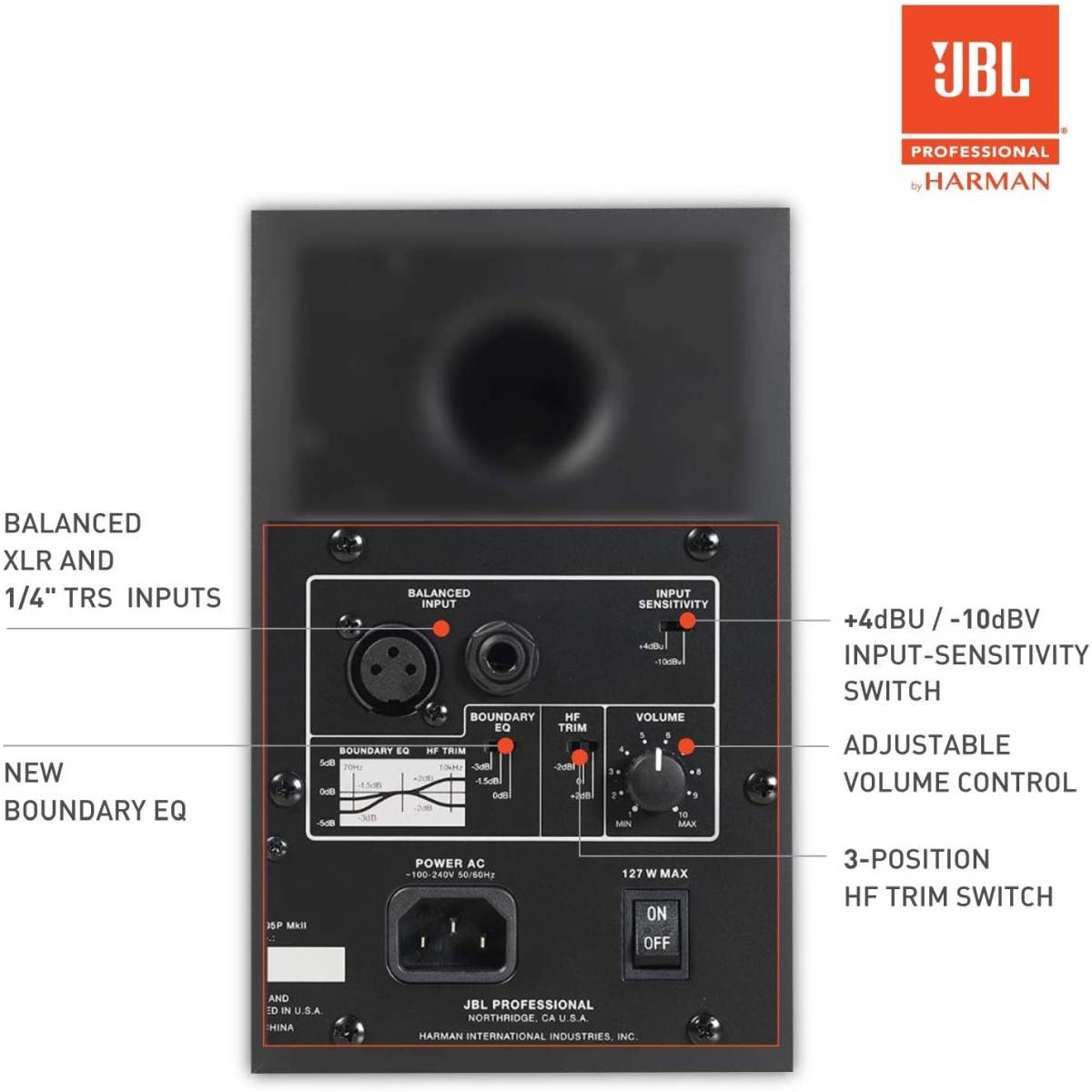

Flexible connectivity with balanced XLR and 1/4" TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control

Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space

Strenuous JBL 100-hour full-power test ensures years of reliability

Sleek, modern design provides a visual upgrade to any studio

LF DRIVER SIZE	165mm (6.5")
HF DRIVER SIZE	25mm (1")
HF DRIVER TYPE	Soft dome
Crossover	1425Hz 4th order acoustic Linkwitz-Riley
OK FOR USE NEAR MAGNETICALLY SENSITIVE EQUIPMENT	Yes
INPUT SENSITIVITY (-10dBV INPUT)	92dB / 1m
Power Configuration	Bi-amplified
HF DRIVER POWER AMP	56W, Class-D
LF DRIVER POWER AMP	56W, Class-D
FREQUENCY RESPONSE (±3dB)	47Hz – 20kHz
Frequency Range (-10dB)	39Hz – 24kHz
LOW FREQUENCY EXTENSION (-10dB)	39Hz
MAXIMUM CONTINUOUS SPL	92dB
Maximum Peak SPL	110dB
MAXIMUM PEAK INPUT LEVEL (-10dBV / +4dBu)	+6dBV / +20.3dBu
