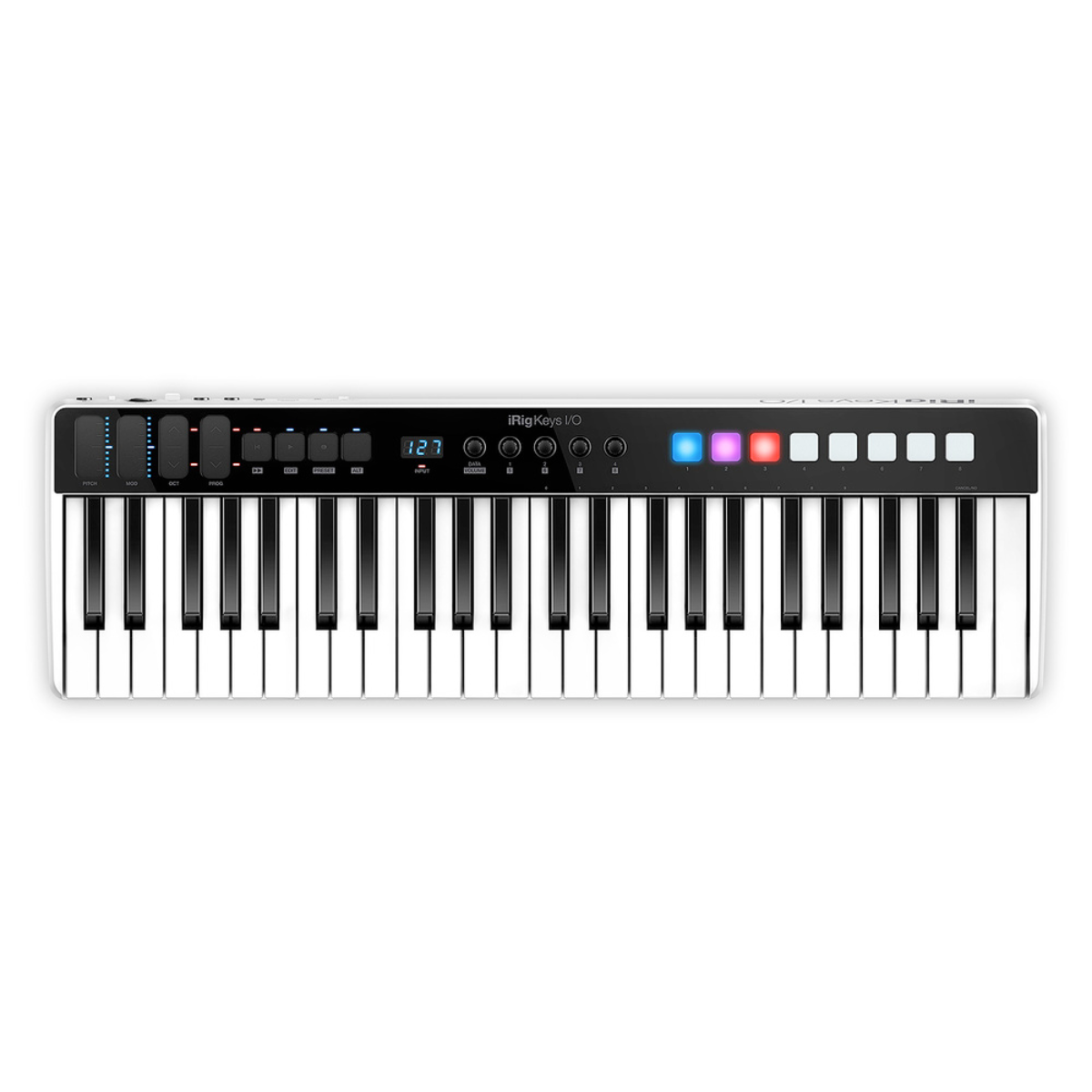

IK Multimedia iRig Keys I/O 49-Keys
The iRig Keys I/O series is a groundbreaking music production system that combines the functionality of a traditional controller with a professional audio interface, offering a comprehensive solution for musicians and producers. Available in 25-key and 49-key versions, these controllers integrate full-sized keys with a high-quality audio interface, delivering an all-in-one solution for music creation.
One of the key features of the iRig Keys I/O is its professional audio interface, which supports 24-bit audio resolution with a sampling rate of up to 96kHz. It provides balanced stereo outputs and headphone outputs for accurate monitoring, and a combo input jack that accommodates line, instrument, or microphone inputs with Phantom power. This means you can directly connect your instruments, microphones, and headphones to the controller, eliminating the need for additional audio interfaces and minimizing cable clutter.
In addition to its audio interface capabilities, the iRig Keys I/O packs all the controls you would expect from a premium controller. It features velocity-sensitive multicolored pads for triggering samples or drum beats, as well as programmable touch-sensitive sliders, buttons, and knobs. These controls allow for unique expressiveness and a fast workflow, enabling you to adjust parameters and manipulate sounds with ease.
The iRig Keys I/O series is also designed with portability and convenience in mind. Despite their compact size, they incorporate all the tactile controls you need for a fully-fledged controller experience. The synth-action keybed offers an improved playing experience, while the volume/data push knob, touch-sensitive knobs, and multicolored pads provide versatile control options. The touch control strips function as pitch and modulation controls by default, adding an extra level of expressiveness to your performances.
The compact size of the iRig Keys I/O controllers sets them apart from the competition. They are over 30% smaller (for the 25-key version) and nearly 50% smaller (for the 49-key version) than the smallest competitor, making them ideal for small studio spaces or on-the-go musicians. Additionally, they are 25% lighter than the lightest competitor, further enhancing their portability. A travel bag is also available separately to protect and transport the controllers.
Furthermore, iRig Keys I/O is certified as an Apple MFi (Made for iPod, iPhone, iPad) keyboard controller, ensuring seamless compatibility with iOS devices. The included Lightning cable allows for plug-and-play connectivity with Apple iOS devices, while the USB cable enables connection to Mac and PC computers.
In summary, the iRig Keys I/O series offers a complete music production system within a controller. With its integrated audio interface, comprehensive controls, compact size, and portability, it provides an unrivaled solution for musicians and producers, whether in the studio or on the go.
Microphone Input
Microphone Type: balanced female 3-pin, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
Microphone Input Level: from 6 mVpp to 1.4 Vpp
Microphone Input Impedance: 3.2 kOhms
Gain Range: 46 dB
Phantom Power: +48V ± 4V
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -100 dB RMS
Instrument Input
Instrument Input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
Instrument Input Level: from 30 mVpp to 6.9 Vpp
Instrument Input Impedance: 1 MOhms
Gain Range: 27 dB
Frequency Response: 20 Hz - 20 kHz +/-1.5dB
Input Noise: -100 dB RMS
Line Output
Line Outputs: 2x balanced, TRS 1/4” Jack, Tip: hot / Ring: cold / Shield: ground
Floating Balanced Outputs with automatic level compensation when working in unbalanced mode
Maximum Output Level: +13 dBu into 600 Ohms balanced load
Frequency Response: from 10 Hz to 21 kHz (+/- 0.2dB)
Output Dynamic Range: 102 dB(A)
Output Impedance: 150 Ohms balanced
Stereo Headphone Output
Connector: 1/8" TRS Jack. Tip: right / Ring: left / Shield: ground
Headphone Level Power 100mW into 50 Ohms
Other Input/Output
DC barrel: 1x DC barrel. For power and device charging.
Device Connector: mini-DIN
External Pedal Input: 1/4" TRS Jack
Common
Conversion: 16 or 24-bit A/D - D/A
Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Power:
• USB bus powered when used with a computer
• Battery powered (4xAA included) when used with an iOS device
• DC power supply (not included, iRig PSU 3A sold separately)**
Keyboard
Keys: 25 or 49 (depending on the version) full-size keys with velocity
Pads
8 velocity-sensitive multi color assignable pads
Controls
Slider strips for pitch and modulation (user programmable)
Octave, program change and transport
5 programmable touch sensitive encoders
Package includes
iRig Keys I/O 49 or 25 keyboard (depending on the version)
Lightning to Mini-DIN connection cable with charging features (60cm/23.62")
USB-A to Mini-DIN connection cable (60cm/23.62")
USB-C to Mini-DIN connection cable (60cm/23.62")
iPhone/iPad stand
4 x 1.5V AA Battery
iRig Keys I/O 49 Dimensions
Size: 693mm/27.3" x 208mm/8.2" x 65mm/2.6"
Weight: 2.18kg/76.9oz (batteries excluded)
iRig Keys I/O 25 Dimensions
Size: 373mm/14.7" x 208mm/8.2" x 65mm/2.6"
Weight: 1.26kg/44.5oz (batteries excluded)
Compatibility
iOS Devices
Made for: iPhone 7 Plus*, iPhone 7*, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (12.9-inch) 1st Generation, iPad Pro (9.7-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad 5th generation, iPad 4th generation. iOS 6 or later is required.
Also compatible with all newer iPhone, iPad and iPod touch models.
*Note for iPhone 7, iPhone 7 Plus, iPad 9.7-inch (6th generation 2018): iOS 12 or later is required.
