DB TECHNOLOGIES

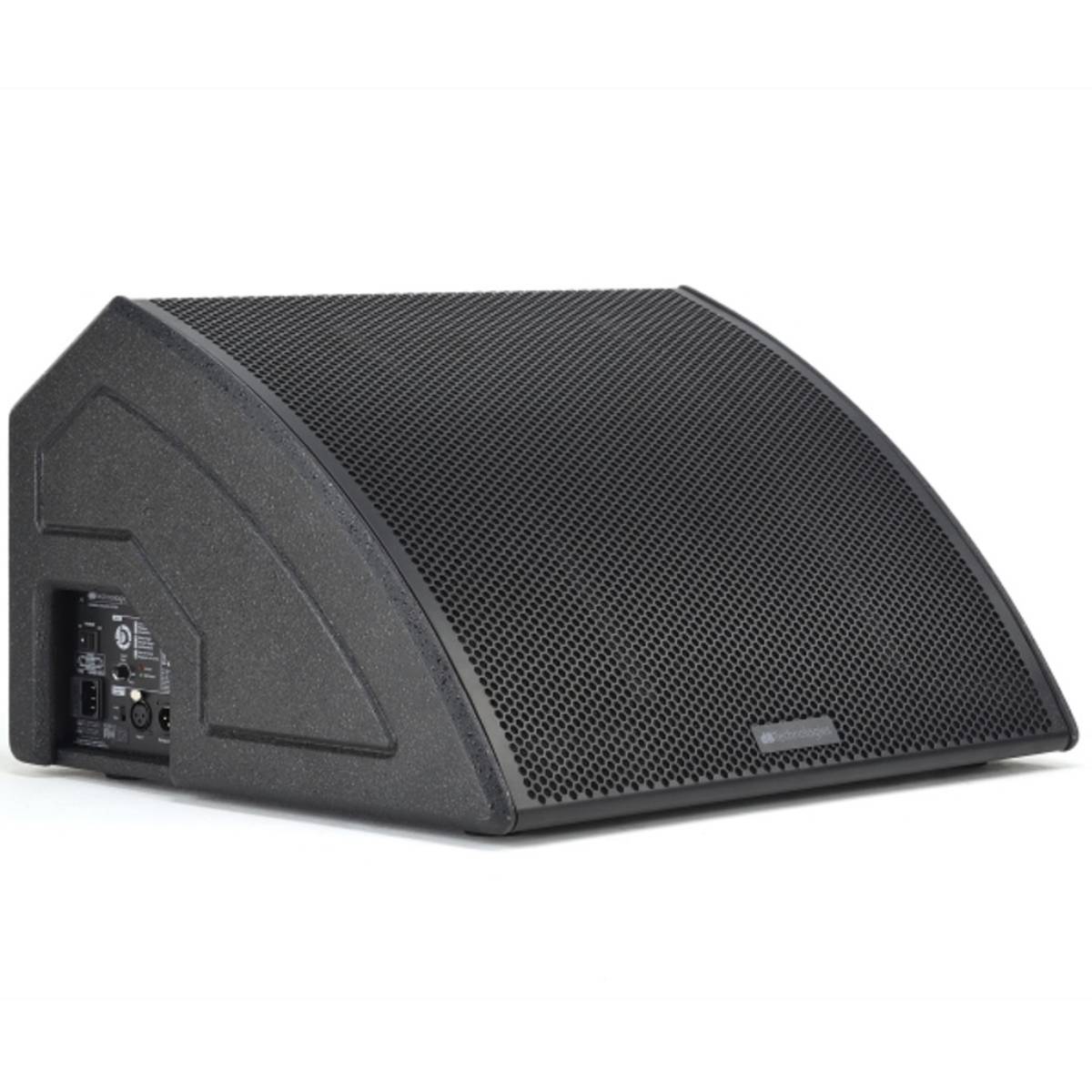

DB Technologies FMX 15 Active Coaxial 2-Way Stage Monitor Wedge / Mounted Vertically
DB Technologies FMX 15 Active Coaxial 2-Way Stage Monitor Wedge / Mounted Vertically
Regular price
$10,450.00 TTD
Regular price
Sale price
$10,450.00 TTD
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
The DB Technologies FMX 15 Active Coaxial 2-Way Stage Monitor is a powerful and versatile professional monitoring solution known for its clear, intelligible sound and durable plywood construction. It features a coaxial design, advanced DSP with FIR filters, and a rotatable horn to adapt to various stage setups.
Speaker Type 2-Way Active Coaxial Stage Monitor
Frequency Response (-10 dB) 46 - 19,000 Hz
Max SPL 128 dB
HF Driver 1" compression driver, 1.3" voice coil
LF Driver 15" woofer, 2" voice coil
Amplifier Class D, 600W RMS / 1200W Peak
Directivity (Horn) 60° x 90° (rotatable for 90° x 60°)
Processor DSP 28/56 bit, 8 system presets, FIR filters
Housing Plywood, black textured paint, full metal grille
Dimensions (WxHxD) 500 x 340 x 500 mm (19.68" x 13.38" x 19.68")
Weight 16.9 kg (37.2 lbs)
Sound Quality: People often praise the FMX 15 for its well-defined, full-bodied sound and excellent price/quality ratio. The coaxial "one point source" design is noted as being superior for stage monitoring, providing a more coherent sound than speakers with separate drivers.
Versatility: The unit can be used as a traditional floor wedge or mounted vertically on a standard 36mm pole. The rotatable horn allows for flexible adaptation to different user preferences and stage orientations. The 8 onboard EQ presets further optimize its performance for various applications (e.g., vocals, instruments, playback).
Portability & Durability: Despite its robust plywood construction, the monitor is relatively lightweight at 16.9 kg (37.2 lbs) and features an integrated handle on the bottom for easy transport.
Speaker Type 2-Way Active Coaxial Stage Monitor
Frequency Response (-10 dB) 46 - 19,000 Hz
Max SPL 128 dB
HF Driver 1" compression driver, 1.3" voice coil
LF Driver 15" woofer, 2" voice coil
Amplifier Class D, 600W RMS / 1200W Peak
Directivity (Horn) 60° x 90° (rotatable for 90° x 60°)
Processor DSP 28/56 bit, 8 system presets, FIR filters
Housing Plywood, black textured paint, full metal grille
Dimensions (WxHxD) 500 x 340 x 500 mm (19.68" x 13.38" x 19.68")
Weight 16.9 kg (37.2 lbs)
Sound Quality: People often praise the FMX 15 for its well-defined, full-bodied sound and excellent price/quality ratio. The coaxial "one point source" design is noted as being superior for stage monitoring, providing a more coherent sound than speakers with separate drivers.
Versatility: The unit can be used as a traditional floor wedge or mounted vertically on a standard 36mm pole. The rotatable horn allows for flexible adaptation to different user preferences and stage orientations. The 8 onboard EQ presets further optimize its performance for various applications (e.g., vocals, instruments, playback).
Portability & Durability: Despite its robust plywood construction, the monitor is relatively lightweight at 16.9 kg (37.2 lbs) and features an integrated handle on the bottom for easy transport.
