Crown Audio XLS2502 \nThe Crown XLS 2502 Stereo Power Amplifier offers 775W at 4 Ohm in a lightweight chassis using the company's ultra-efficient DriveCore Class D amplification platform. The amplifier includes built-in DSP with a dedicated band pass filter per channel, an integrated PureBand Crossover System, and Peakx Limiters to provide maximum output while protecting your speakers.
\n\n

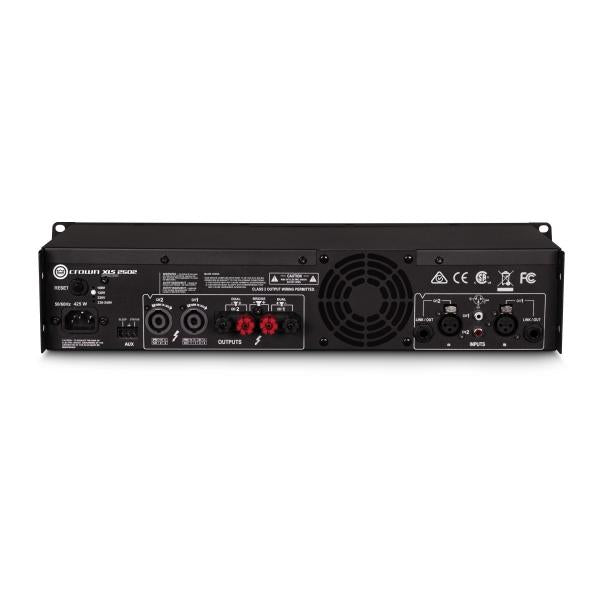

For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4\" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or \n0.775 Vrms. Outputs are provided on both speakON and binding post connectors. \nYou can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off.
\n\n\n
\n
775W at 4 Ohm Per Channel
\n
Band Pass Filter Per Channel
\n
Selectable Input Sensitivity
\n
Security Settings Disables Menu Buttons
\n
XLR, 1/4\", and RCA Inputs
\n
Integrated PureBand Crossover System
\n
Efficient Forced-Air Fans
\n
Remote Power Trigger
\n
Peakx Limiters Provide Maximum Output
\n
Remote Power Trigger
\n
\n\n
\n
Crown Audio XLS2502 Specs
\nPower Amplifier\n\n
\n \n
\n
Number of Channels
\n
2
\n
\n
\n
Power Rating
\n
2 Ohms: \n 1200 W per Channel \n 4 Ohms: \n 775 W per Channel \n 2400 W Bridged \n 8 Ohms: \n 440 W per Channel \n 1550 W Bridged
\n
\n \n
\nPerformance\n\n
\n \n
\n
Frequency Response
\n
20 Hz to 20 kHz +0/-1 dB (at 1 W)
\n
\n
\n
Damping Factor
\n
>200
\n
\n
\n
Input Sensitivity
\n
1.4 Vrms
\n
\n
\n
SNR
\n
>103 dB
\n
\n
\n
THD
\n
<0.5%
\n
\n
\n
Intermodulation Distortion
\n
<0.3%
\n
\n
\n
Crosstalk
\n
>85 dB (at 1 khz) \n >55 dB (at 20 kHz)
\n
\n \n
\nConnectivity\n\n
\n \n
\n
I/O
\n
2 x XLR Input \n 1 x 2RCA Input \n 2 x 1/4\" Thru \n 2 x Binding Post Pair Output \n 2 x speakON NL4 Output
