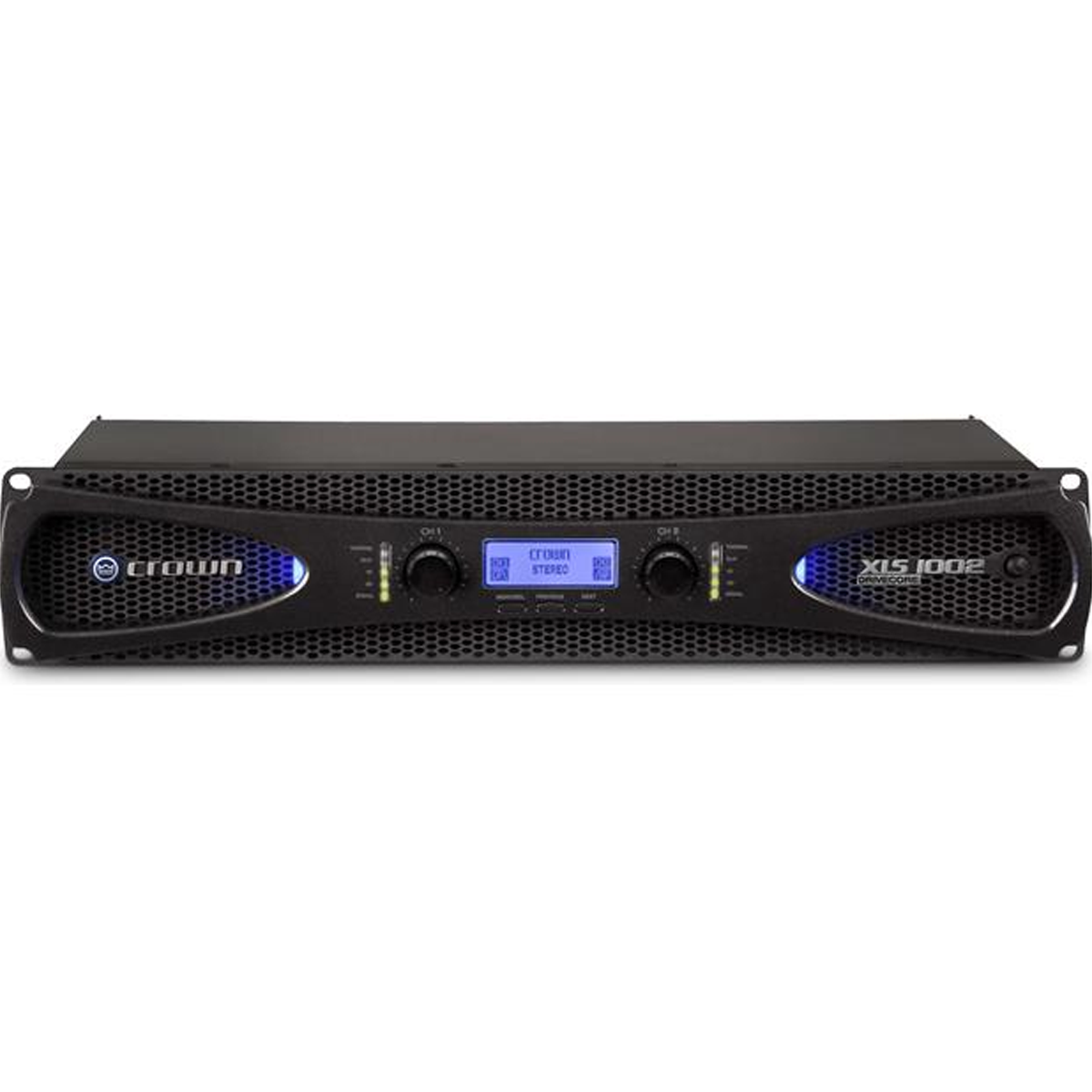

Crown XLS 1002 DriveCore 2 Series Power Amplfier

Crown Audio XLS1002

The Crown XLS 1002 Stereo Power Amplifier offers 350W at 4 Ohm in a lightweight chassis using the company's ultra-efficient DriveCore Class D amplification platform. The amplifier includes built-in DSP with a dedicated band pass filter per channel, an integrated PureBand Crossover System, and Peakx Limiters to provide maximum output while protecting your speakers.

For inputs, the rear panel includes a pair of XLR-3F connectors, 1/4" and RCA inputs for flexible connections with a selectable input sensitivity of either 1.4 Vrms or 0.775 Vrms. Outputs are provided on both speakON and binding post connectors.

You can set the amplifier's sleep mode for a designated period of time without having to press a button, as well as turn off all LED indicators except for clip and thermal to reduce distractions in dark venues. A security mode can be engaged to disable menu buttons, which can be locked and unlocked by entering a combination code. Full system reset allows for factory settings to be restored and a remote power trigger allows you to turn the unit on and off.

Key Features

• 350W at 4 Ohm Per Channel


• Band Pass Filter Per Channel


• Selectable Input Sensitivity


• Security Settings Disables Menu Buttons


• XLR, 1/4", and RCA Inputs


• Integrated PureBand Crossover System


• Efficient Forced-Air Fans


• Remote Power Trigger


• Peakx Limiters Provide Maximum Output


• Remote Power Trigger

Specs

Power Amplifier

Number of Channels	2
Power Rating	2 Ohms: 550 W per Channel 4 Ohms: 350 W per Channel 1100 W Bridged 8 Ohms: 215 W per Channel 700 W Bridged

Performance

Frequency Response	20 Hz to 20 kHz +0/-1 dB (at 1 W)
Damping Factor	>200
Input Sensitivity	1.4 Vrms
SNR	>97 dB
THD
Intermodulation Distortion
Crosstalk	>85 dB (at 1 khz)  >55 dB (at 20 kHz)

Connectivity

I/O	2 x XLR Input 1 x 2RCA Input 2 x 1/4" Thru 2 x Binding Post Pair Output 2 x speakON NL4 Output

Physical

Dimensions	19.0 x 3.5 x 7.7" / 48.3 x 8.9 x 19.6 cm
Weight	8.6 lb / 3.9 kg

Packaging Info

Package Weight	11.65 lb
Box Dimensions (LxWxH)	21.8 x 12.4 x 6"
