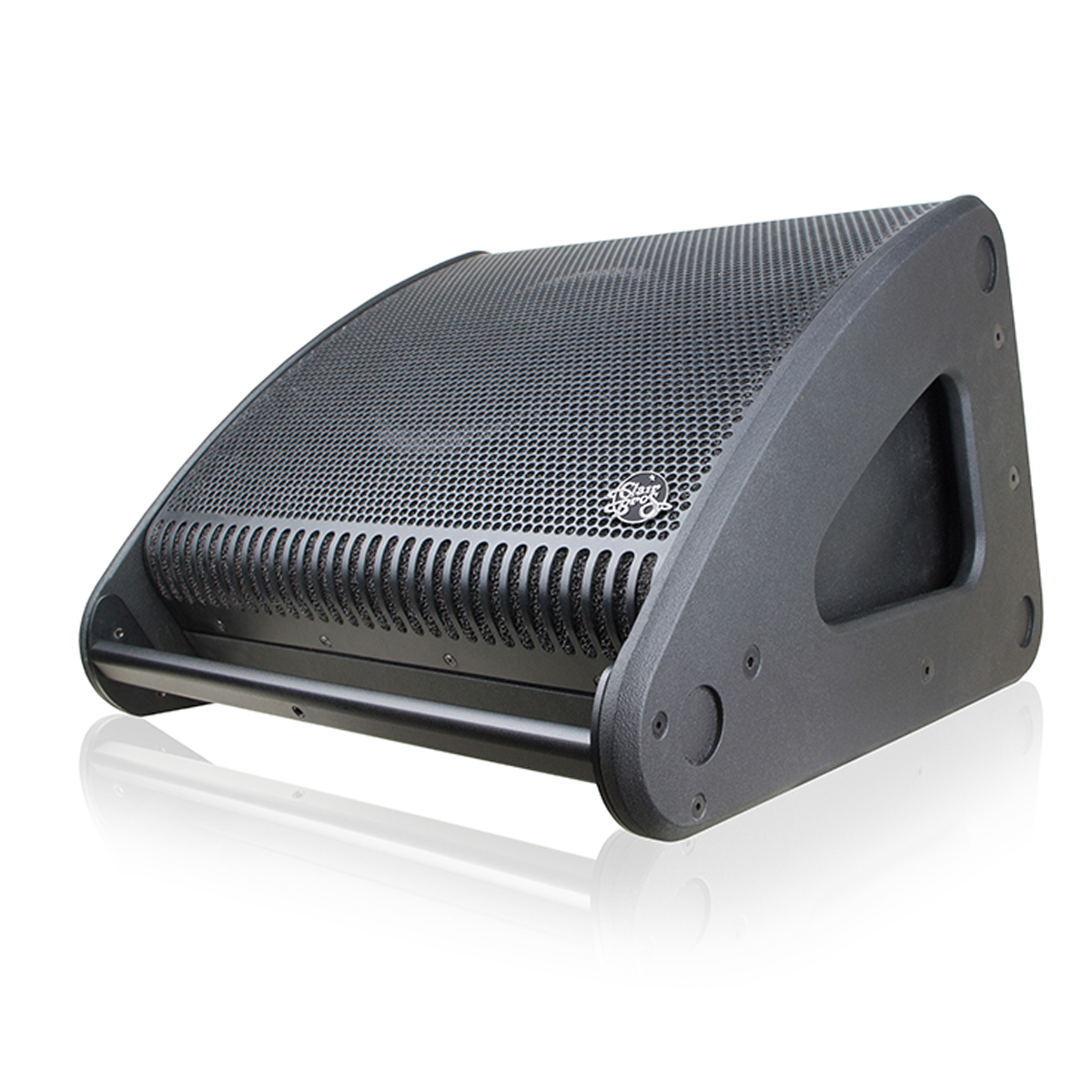

Clair Brothers 1AM Passive Coaxial Stage Monitor
Much more than just a successor to the 12AM
The Clair Brothers 1AM is the next generation single 12” stage monitor / multipurpose loudspeaker. The engineering behind the 1AM combines the Clair tradition of great stage monitors with the successful Clair coaxial horn technology developed over the past 5 years. The result is a highly capable and compact speaker with excellent coherence between components that is simultaneously in-your-face and smooth and hi-fi sounding. The 1AM is not only a stage monitor, but also very capable of portable and installed PA functions based on its integral mounting points and pole mount. A family of optional mounting accessories is available to facilitate permanent installation configurations.
The high-frequency compression driver features a 1.5” throat diameter (3” voice coil diameter), a pure titanium diaphragm, and a neodymium magnet assembly. The driver is joined to a 40° horizontal by 60° vertical rotatable horn. A 12” cone transducer provides mid-bass and low-frequency reproduction. 1AM Connectors: Dual rear mounted connectors allow the use of multiple cabinets from a single amplifier. Additionally, there are three slightly more hidden connectors. Two are positioned within the left and right side handles, and the other is on the bottom. When used for drum fills or in pole-mount positions these additional connectors prove to be extremely useful for clean cable management.
• Two-Way Coaxial Stage Monitor / Point Source
• Frequency Response: 60Hz–18kHz (+/- 2dB) | 50Hz–20kHz (-10dB)
• Recommended Power Amplifier: 1200–1400W Peak @ 8 Ohms
• Drivers: LF: 12”; HF: 3”
• Nominal Impedance: LF: 8 Ohms, HF: 16 Ohms
• Power Handling: LF: 350W Cont. | 1400W Peak, HF: 80W Cont. | 160W Peak
• Standard Connectors: (5) NL4 SpeakON, [*Optional/On request: (5) EP-4, (1 Male, 4 Female)]
