Chauvet Professional Ovation F165WW | Theatre and Broadcasting Lighting

Chauvet Professional Ovation F165WW | Theatre and Broadcasting Lighting

$7,200.00 TTD
$0.00 TTD $7,200.00 TTD
Sale Sold out
Taxes included. Shipping calculated at checkout.
\n

Focusing is a breeze

\n\n

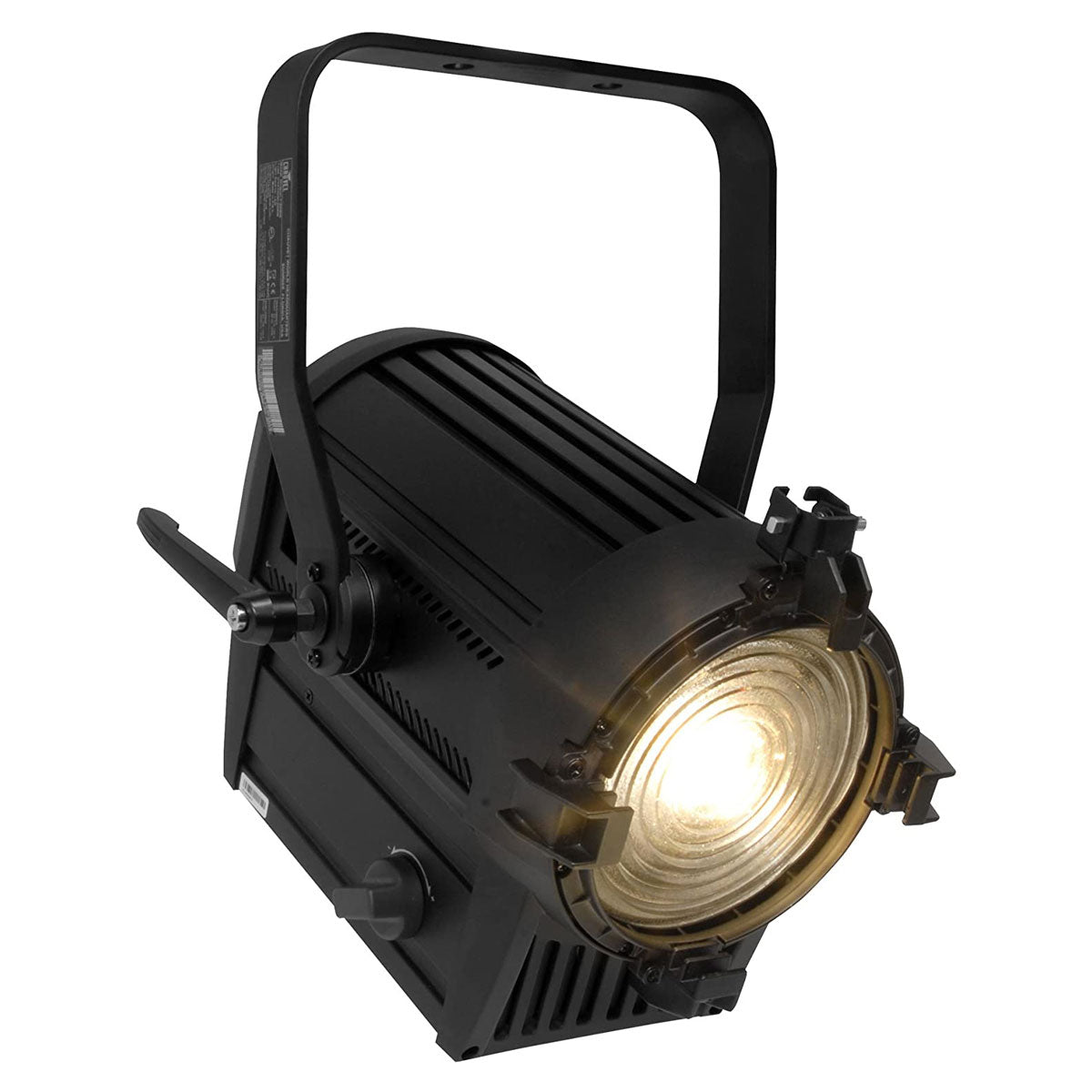

Powered by 16 10-watt LEDs, Ovation F-165WW delivers a smooth, even wash with a warm color temperature, a beautiful soft field and high CRI. It also features an easily adjustable, motorized zoom with a range from 25° to 76° and can accommodate barn doors for glare reduction and beam shaping. Selectable and smooth 16-bit dimming curves make it compatible with older, traditional theater Fresnels. Focusing is a breeze even without a board operator, thanks to manual overrides for zoom and dimming on the back of the unit. Ovation F-165WW is a perfect fit in theaters, studios or other environments that require smooth, even washes of light.

\n\n\n
\n
    \n
  • \n

    16-bit dimming resolution for smooth fades

    \n
    • \n
  • \n

    Flat, even field of light

    \n
    • \n
  • \n

    Virtually silent operation for use in any situation

    \n
    • \n
  • \n

    Simple and complex DMX channel profiles for programming versatility

    \n
    • \n
  • \n

    Warm white Fresnel-style lighting fixture

    \n
    • \n
  • \n

    Motorized zoom angle between 25° to 76°, manually or via DMX

    \n
    • \n
\n
\n\n
\n
\n

SPECIFICATIONS

\n
\n\n
\n
\n

OPTICAL

\n\n
    \n
  • Light Source: 16 LEDs (WW) 10 W, (2.8 A), 100,000 hours life expectancy
    • \n
  • Color Temperature (at full): 3184 K
    • \n
  • Beam Angle: 14° to 55°
    • \n
  • Field Angle: 25° to 76°
    • \n
  • Zoom Angle: 25° to 76°
    • \n
  • Lumens (25°): 2,661
    • \n
  • Lumens (76°): 6,481
    • \n
  • Illuminance (25°): 1,860 lux @ 5 m
    • \n
  • Illuminance (76°): 285 lux @ 5 m
    • \n
\n
\n\n
\n

DYNAMIC EFFECTS

\n\n
    \n
  • Dimmer: Electronic
    • \n
  • Shutter/Strobe: Electronic
    • \n
  • Zoom: Motorized
    • \n
  • Focus: Electronic
    • \n
  • Strobe Rate: 0 to 20 Hz
    • \n
  • Dim Modes: 5
    • \n
  • Dim Curves: 4
    • \n
\n
\n\n
\n

CONSTRUCTION / PHYSICAL

\n\n
    \n
  • Dimensions: 16.5 x 11 x 10 in (418 x 283 x 255 mm)
    • \n
  • Weight: 14.6 lb (6.6 kg)
    • \n
  • Exterior Color: Black
    • \n
  • Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
    • \n
\n
\n\n
\n

CONNECTIONS

\n\n
    \n
  • Power Connection: Edison plug to Neutrik powerCON
    • \n
  • Power Input: Neutrik powerCON
    • \n
  • Power Output: Neutrik powerCONData Connectors: 3- and 5-pin XLR
    • \n
  • Cable Length (power): 5 ft (1.5 m)
    • \n
\n
\n\n
\n

CONTROL

\n\n
    \n
  • Control Protocol: DMX
    • \n
  • DMX Channels: 1, 2 or 5
    • \n
  • Modes/Personalities: 3 personalities (UNO, DOS, STD.P)
    • \n
\n
\n\n
\n

ELECTRICAL

\n\n
    \n
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
    • \n
  • Power Linking: 5 units @ 120 V; 9 units @ 208 V; 10 units @ 230 V
    • \n
  • Power and Current: 170 W, 1.41 A @ 120 V, 60 Hz
    • \n
  • Power and Current: 166 W, 0.85 A @ 208 V, 60 Hz
    • \n
  • Power and Current: 166 W, 0.78 A @ 230 V, 50 Hz
    • \n
\n
\n\n
\n

CERTIFICATIONS / QUALIFICATIONS

\n\n
    \n
  • CE, MET
    • \n
  • IP Rating: IP20, dry location
    • \n
\n
\n\n
\n

WHAT'S INCLUDED

\n\n
    \n
  • Ovation F-165WW
    • \n
  • Neutrik powerCON power cord
    • \n
  • Gel frame (7.5 in/191 mm accessories)
    • \n
\n
\n\n
\n

OPTIONAL ACCESSORIES

\n\n
    \n
  • Professional Clamps: CTC-50HC, CTC-50HCN
    • \n
  • Neutrik powerCON cables
    • \n
  • 3-pin or 5-pin DMX Cables
    • \n
  • Color Blending Filters: DF60X1D, DF20D
    • \n
  • Ovation F7.5” Barndoor
    • \n
