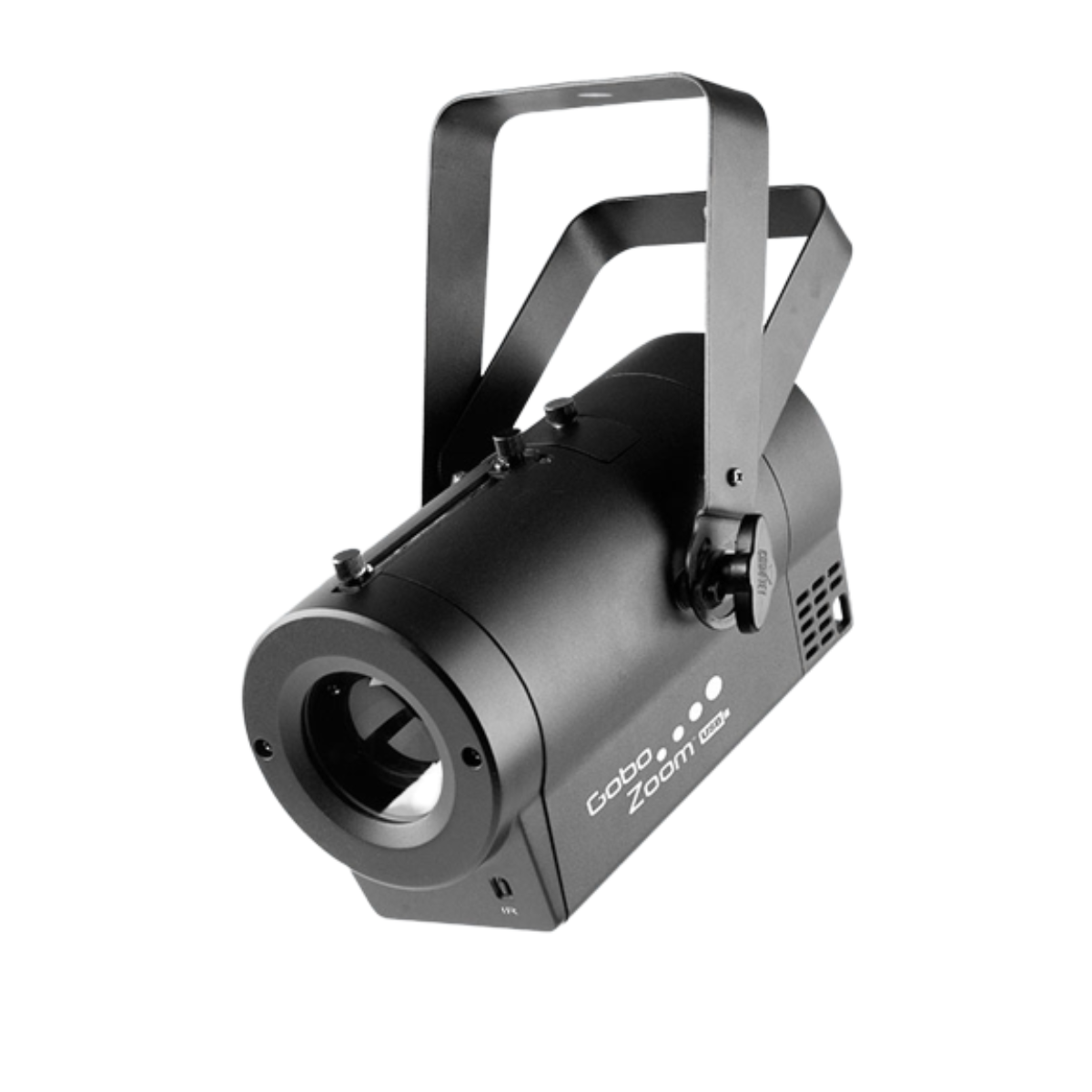

Chauvet Gobo Zoom USB

The Chauvet Dj Gobo Zoom USB is a versatile and compact gobo projector designed to enhance lighting setups in various scenarios. Here's an overview of its key features:

1.


   Super-Compact Design: The Gobo Zoom USB is designed to be compact, making it easy to integrate into different lighting setups without taking up too much space.





2.


   Manual Zoom: This projector features a manual zoom function, allowing you to adjust the projection size manually. This versatility is beneficial for adapting to different throw distances and achieving the desired visual effect.





3.


   Wireless Connectivity: The Gobo Zoom USB comes with embedded D-Fi USB compatibility, enabling wireless connectivity options. This includes wireless Master/Slave or DMX control, providing flexibility in how you manage and synchronize lighting effects.





4.


   Gobo Options: The device includes 10 wedding-ready gobos, offering ready-to-use patterns for wedding and event lighting. Additionally, the projector accepts custom gobos, allowing you to use your own patterns or messages. These can be easily printed on transparency film.





5.


   Control Options: The built-in display and optional IRC-6 remote offer control over various aspects, including dimmer settings, gobo rotation, and direction. This provides you with multiple control methods based on your preferences.





6.


   Zoom Flexibility: The manual zoom feature allows you to adjust the projection distance, making it suitable for both short-throw and long-throw applications. This adaptability is valuable for different venue sizes and setups.





7.


   Standalone Operation: The projector supports user-configurable standalone operation, meaning you can control it without the need for DMX. This is useful when you want to have control even without an extensive lighting setup.





8.


   Custom Gobos: Aside from the included gobos, you can print your own custom gobos on transparency film. This opens up creative possibilities for personalizing your lighting effects.





9.


   Portability: The Gobo Zoom USB fits well in the CHS-40 VIP Gear Bag, ensuring convenient transport and storage.




In summary, the Chauvet DJ Gobo Zoom USB offers a range of features that make it versatile for various lighting applications. Its compact design, wireless connectivity, custom gobo options, and control flexibility make it a valuable addition to lighting setups for events, weddings, and more.



Specifications

DMX Channels: 2

DMX Connectors: 3- pin XLR

Light Source: 1 LED (cool white) 25 W (6 A), 50,000 hours life expectancy

Illuminance: (17°) 3,075 lux @ 2 m

(28°) 1,121 lux @ 2 m

Power Linking: 13 units @ 120 V; 24 units @ 230 V

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current: 41 W, 0.7 A @ 120 V, 60 Hz

39 W, 0.3 A @ 230 V, 50 Hz

Gobo Size: 25.74 mm outside, 19.38 mm max image, 1 mm max thickness

Zoom Angle: (manual): 17° to 28°

Weight: 4.4 lb (2.1 kg)

Size: 9.4 x 4.9 x 9.6 in (238 x 124 x 244 mm)

Approvals: CE

Optional Controllers: IRC-6
