CHAUVET

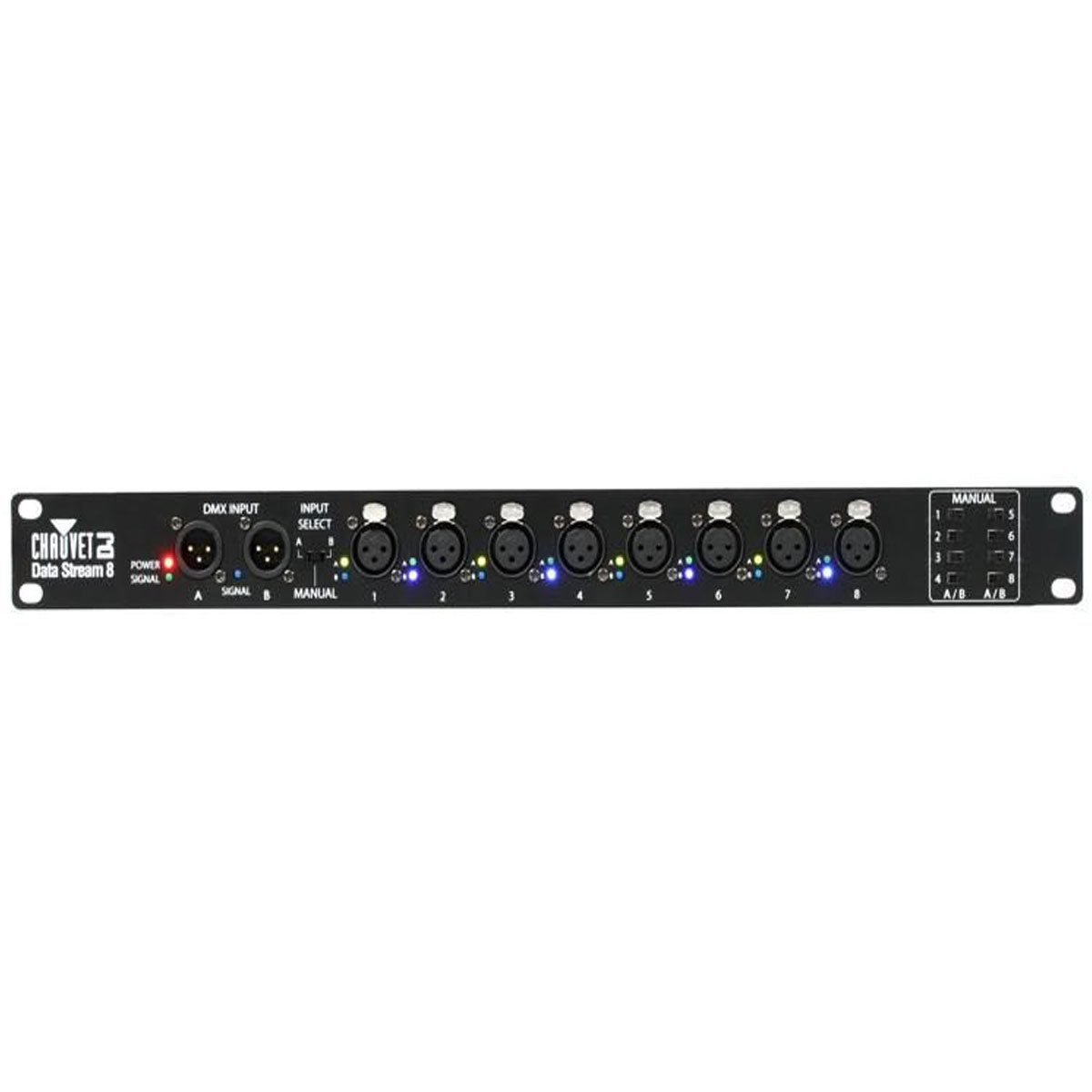

Chauvet Data Stream 8 DMX Splitter

Chauvet Data Stream 8 DMX Splitter

$2,850.00 TTD
$2,850.00 TTD
Sale Sold out
Taxes included. Shipping calculated at checkout.

Flexible Boost



Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.






  • Flexible DMX splitter provides up to 8 outputs from dual inputs




  • Each input can be used simultaneously and sent to any output




  • Master 3-position switch quickly sends A or B input to all 8 outputs




  • Individual 2-position switches send data from either the A or B input




  • Optically isolated outputs provide protection in the event of a short




  • Threaded insert safely secures to overhead truss





    • DMX Connectors: 3-pin XLR

    • Rackmount: 1U

    • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

    • Power and Current: 2 W, 0.04 A @ 120 V, 60 Hz

      2 W, 0.03 A @ 230 V, 50 Hz

    • Weight: 4.6 lbs (2.1 kg)

    • Size: 19 x 5.2 x 1.7 in (483 x 132 x 44 mm)

    • Approvals: CE





    WHAT'S INCLUDED




    • Data Stream 8

    • Power cord

    • Warranty card

    • Quick Reference Guide
